12
（1）Keep the antennas vertical to the ground;
（2）Keep the antennas in parallel, do not cross or overlap with each other.
4.2.2 Air unit antennas
（1）The two RF cables used between air unit’s RF ports and antennas should not be crossed with
each other, antenna, RF cable and SMA connector should not be directly contacted to metal, carbon
fiber parts;
（2）RF cables should keep distance from devices like electric motor or electric tilt which may cause
EMI;
（3）Do not install the two antennas at the same position, at least 50cm distance between each other;
（4）Fasten the SMA connectors to air unit’s RF ports and antennas;

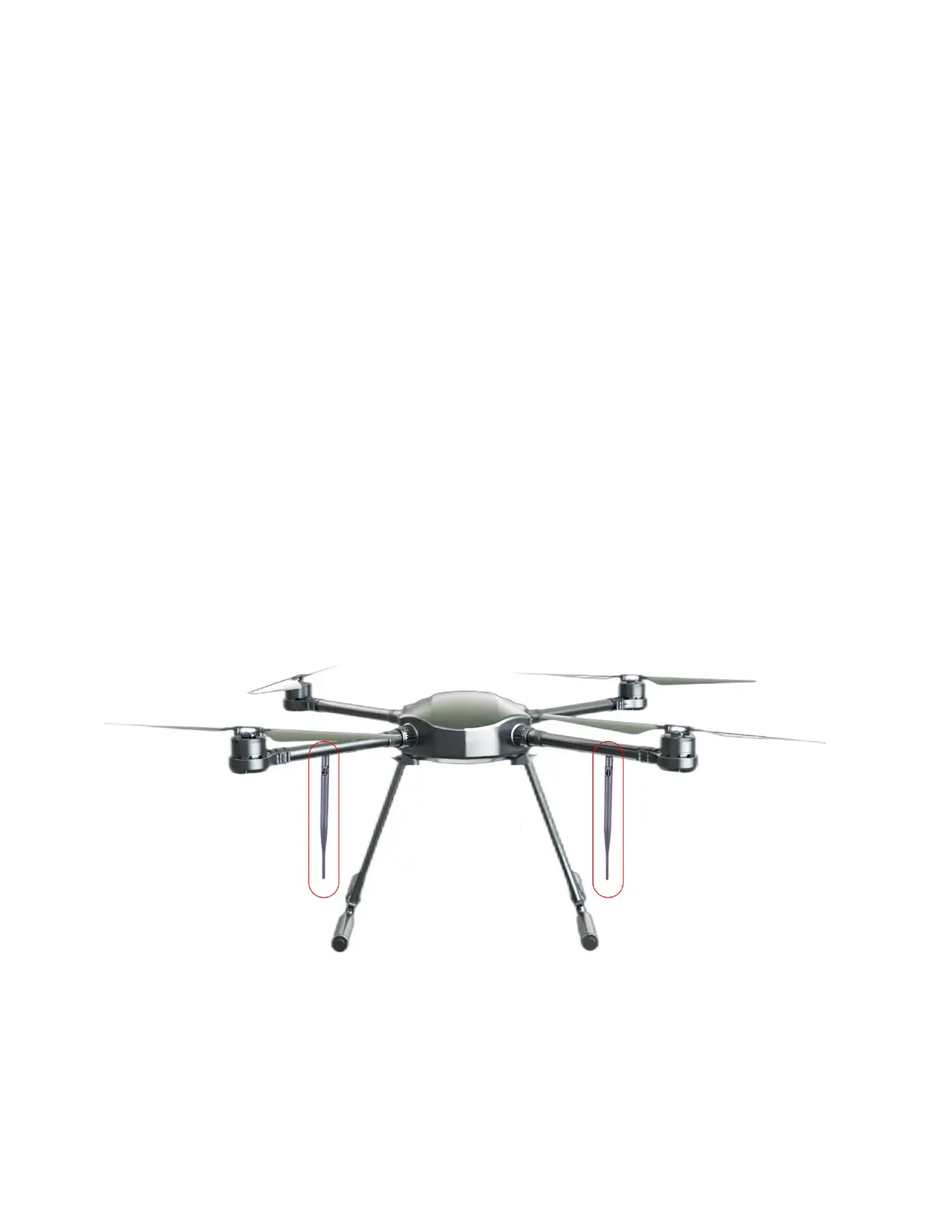

（5）Suggested antenna installation position is shown as below:
