8

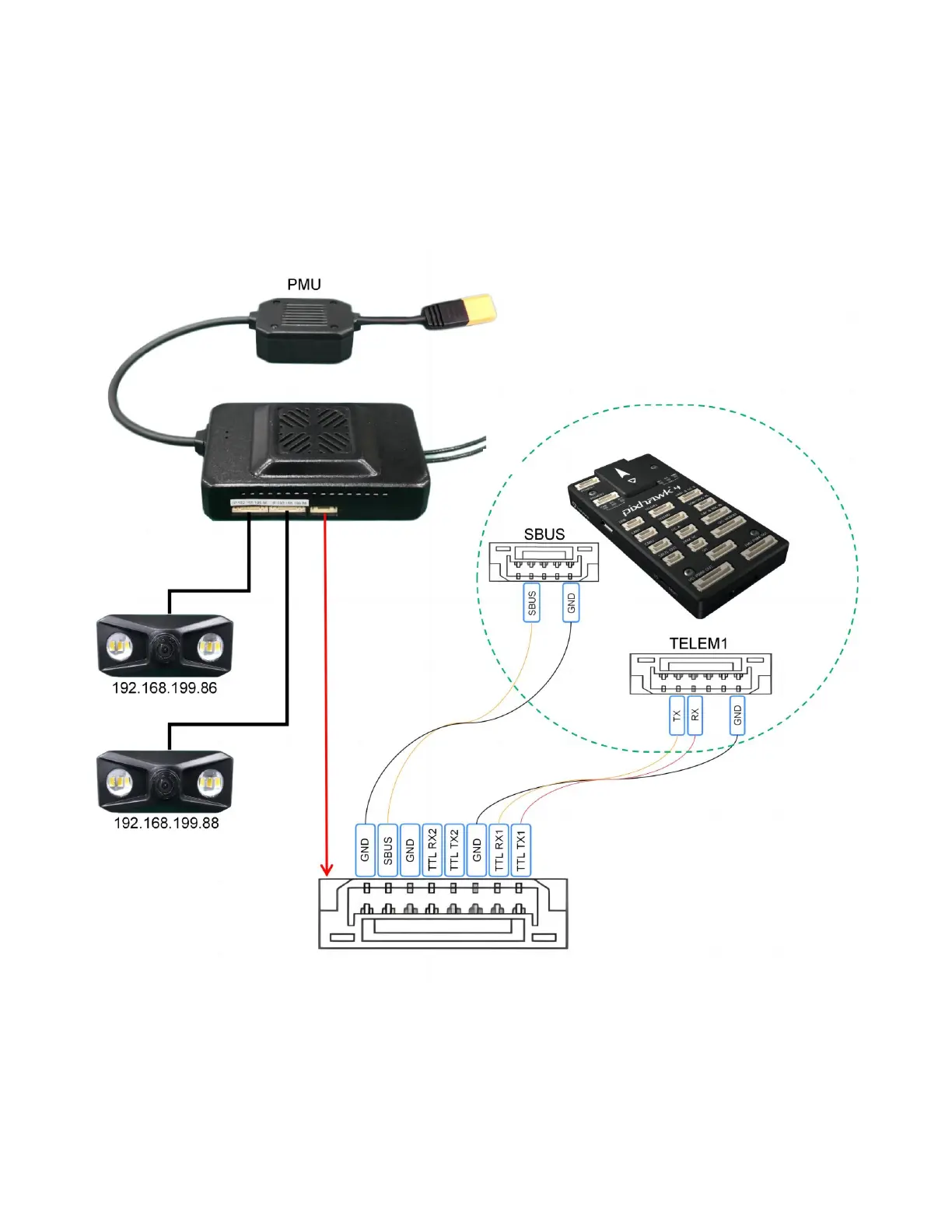

3 Connections
Here take the Pixhawk 4 as an example:
XT60 connector, voltage input 6S~16S
FC
Antennas
