09/01 IPN: M5000-00-102
Disassembling the radio D - 5

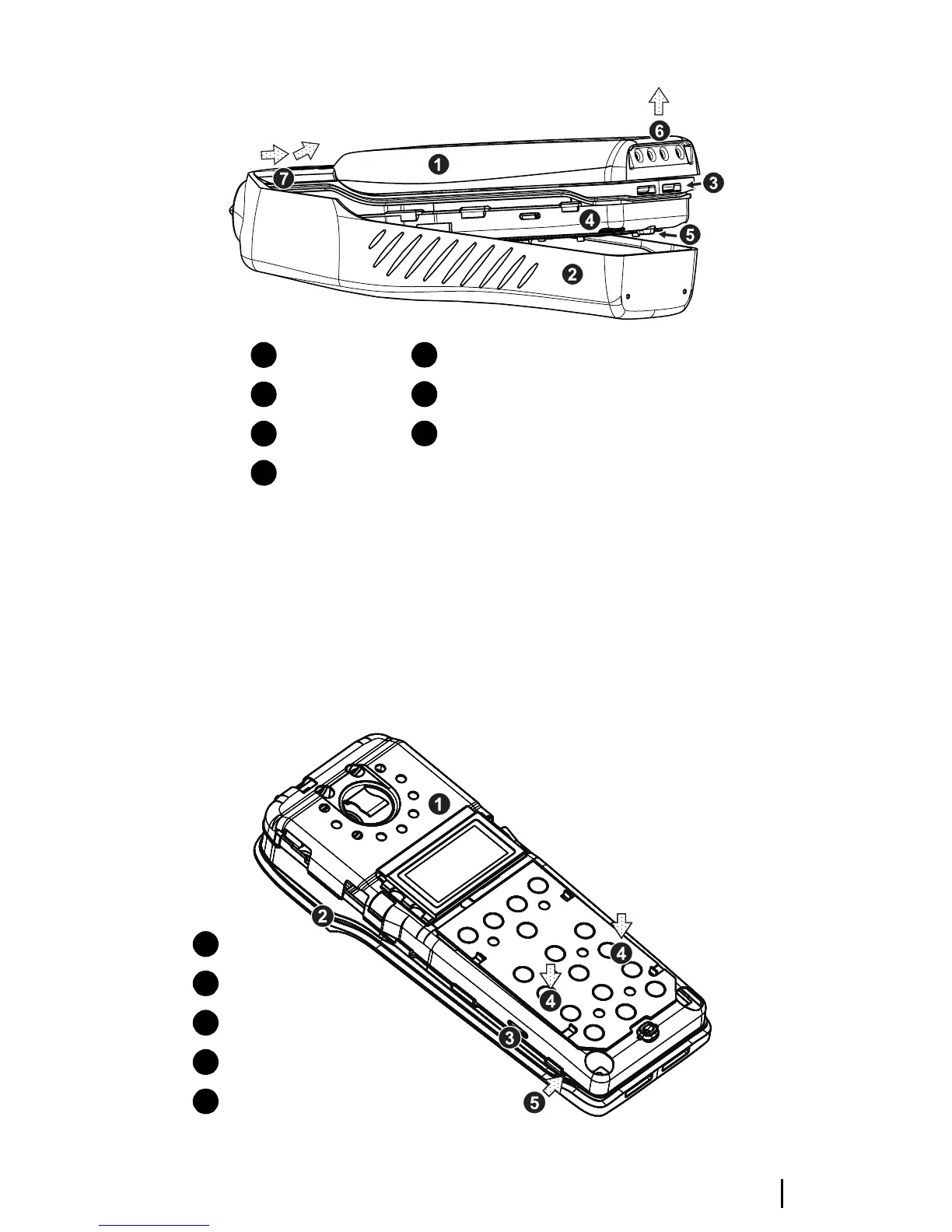

Figure D-3: Removing the front panel from the chassis, using the battery as leverage
Removing the shield sub-assembly
from the chassis
To remove the shield sub-assembly, place the
radio’s internal assembly on a flat surface with
the shield side facing up toward you. Press
lightly down on the shield sub-assembly above
the slot clip detail (shown in Figure D-4),
which will slightly bow the shield away from
the chassis.
Maintain pressure and insert a flat bladed
screwdriver (approximately 4 mm) in the gap
between the shield and the chassis. Twist the
screwdriver and the shield should rise up over
the clip.
Figure D-4: Removing the shield sub-assembly from
the chassis
battery pack
front panel
chassis
shield
1
2
3
4
microphone grommet protruding from the shield
grip battery here, gently pull away from the front panel
pull radio out and away from the front panel at this point
5
6
7
shield
chassis
slot clip detail
apply pressure here
insert screw driver here and twist
1
2
3
4
5
