5 System Equipment Specifications
5.1 Multi-Drop Cable Specifications
Note This cable is not supplied by TEL as part of the Multi-Control
Head system.
The Multi-Drop Cable is a 4x twisted pair overall screen cable (Cat5 or
similar) which is used for cabling within the building. The length of this
cable can be a maximum of 2000M.
The recommended cable type used for the multi-drop cable is M&M cables
b2004 ESCS 4 x twisted pair/overall screen.

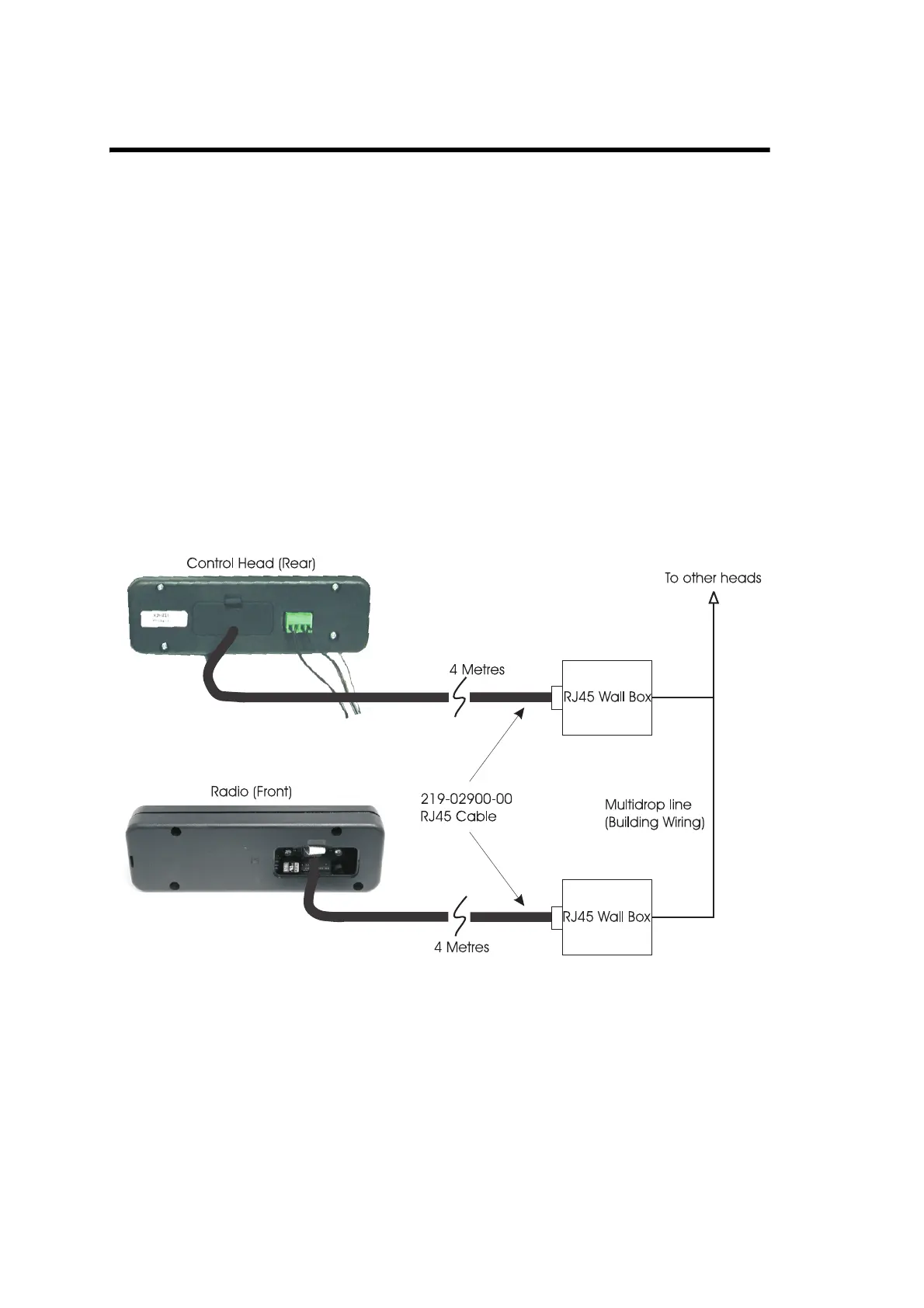

RJ45 Wall boxes are fitted at intervals along this multi-drop cable, which
provide the junction between the remote control heads and connection to
the building network.
