T2004 Multi-Control Head System Manual System Equipment Specifications 23
© Tait Electronics Limited May 2004
5.2 Micromatch to RJ45 Cable (IPN 219-02900-00)
The Micromatch to RJ45 Cable is the means by which the radio and control
heads connect to the building network.
The cable connects the radio at SK3 on the X2AM01 Multi-Head Interface
PCB to the radio’s RJ45 Wallbox. The cable connects each control head at
J5 to the corresponding RJ45 Wallbox.

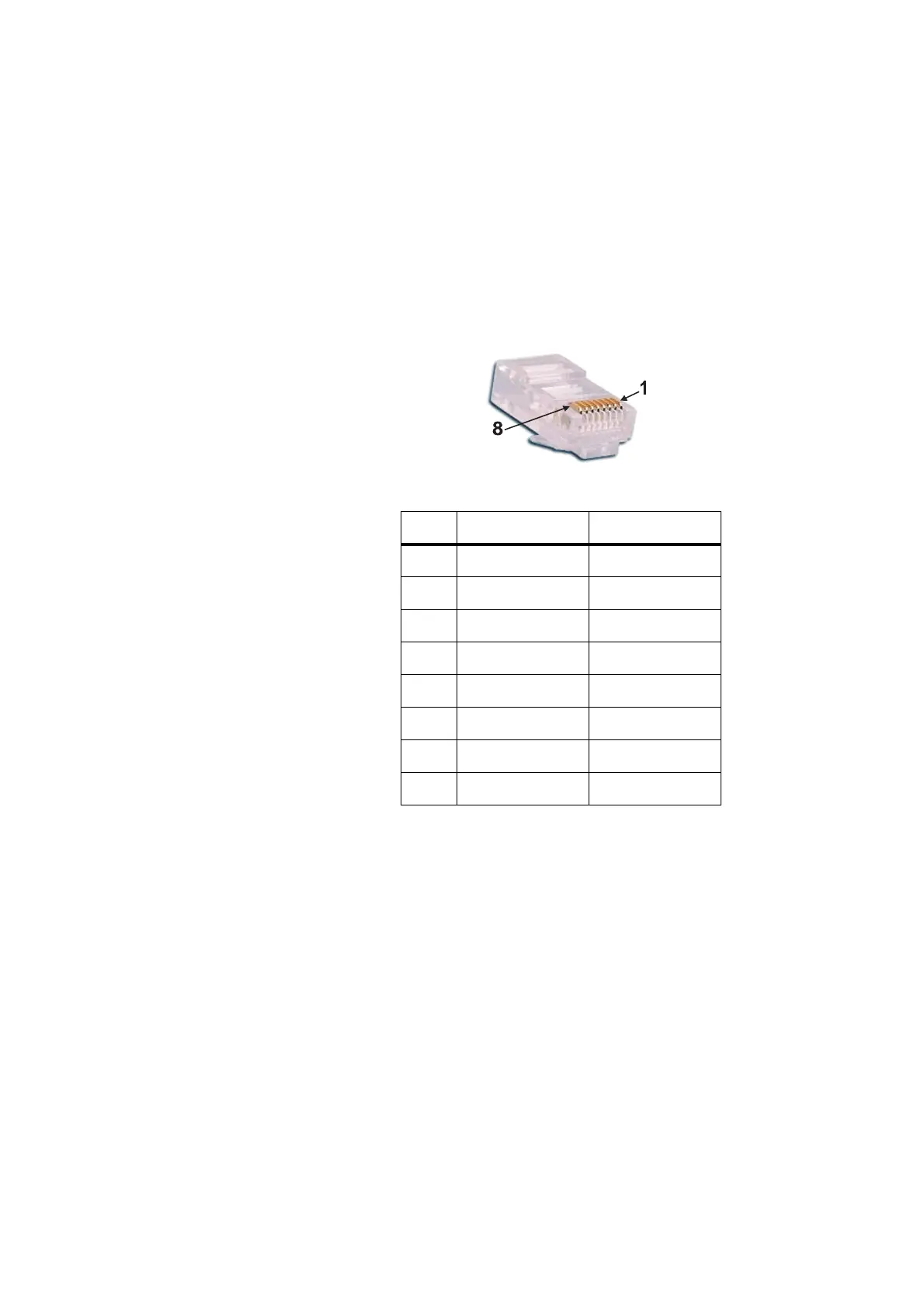

The table below shows the pin assignment for the RJ45 cable which
connects to the wallboxes:
Pin Colour Description
1 Black Data from radio 1B
2 Brown Data from radio 1A
3 Red Ground
4 Orange Balanced audio
5 Yellow Balanced audio
6 Green Power switch
7 Blue Data to radio 2B
8 Violet Data to radio 2A
