38 Troubleshooting

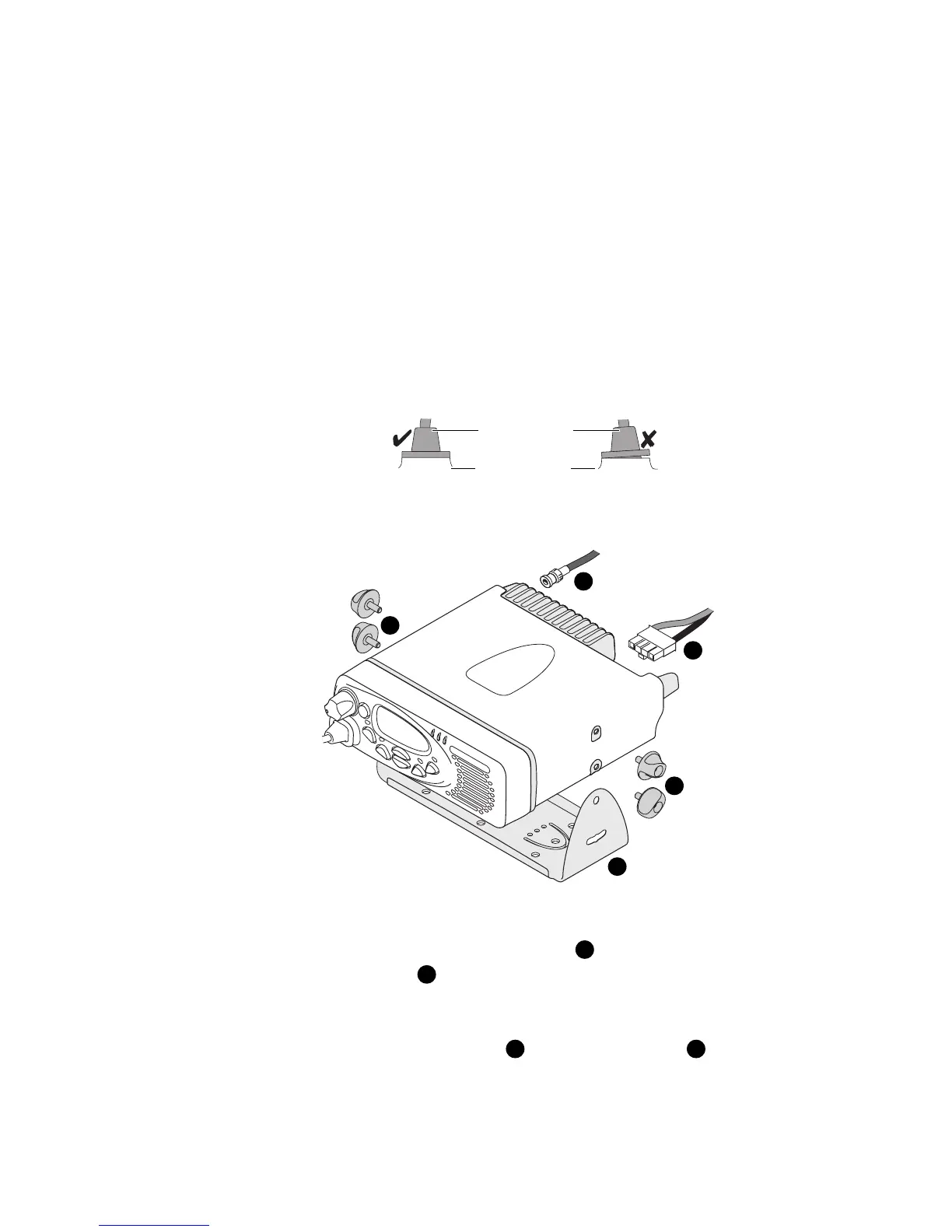

Reinstalling the microphone
Caution: The microphone grommet must be installed
whenever the microphone is plugged into the
microphone socket.
1 Plug the microphone into the microphone socket.
2 Slide the microphone grommet along the microphone cord
and push two adjacent corners of the grommet into the
microphone socket cavity.
3 Squeeze the grommet and push the remaining corners
into position.
4 Check that the grommet is seated correctly in the cavity.
Removing the radio from the vehicle
1 Switch off the radio.
2 Unscrew the four thumb screws that secure the radio to
the U-bracket .
3 Carefully lift the radio clear of the U-bracket.
4 Disconnect the antenna and power cable from the
rear of the radio.
microphone
grommet
control
head
a
c
d
a
b
a
b
c
d
