Talon EG500 - Specifications; Identification

4
GENERAL IDENTIFICATION
3
Model No EG500 EG600W
GENERAL FEATURES
Rated Power................................................... 3800 Watts...................................... 4360 Watts
Maximum Power............................................. 4180 Watts...................................... 4800 Watts
Emergency nominal power............................. 4.18 kVA.......................................... 4.8 kVA
Continue nominal power................................. 3.80 kVA.......................................... 4.36kVA
Power factor.................................................... 0.9 p.f.............................................. 0.9 p.f.
Nominal voltage.............................................. 240V................................................ 240V
Nominal frequency.......................................... 50 Hz............................................... 50 Hz
Alternator connections.................................... Single phase - Dual outlet............... Single phase - Dual outlet
ENGINE
Brand.............................................................. Talon................................................ Talon
Model.............................................................. 177F................................................. 182F
Stroke............................................................. 4 cycle............................................. 4 cycle
Cubic c.c......................................................... 270cc............................................... 338cc
Cooling system............................................... Air.................................................... Air
St
arting system............................................... Recoil.............................................. Recoil
RPM................................................................ 3000 rpm......................................... 3000 rpm
Continuous power........................................... 5.4 KW............................................. 6.1KW
Max. power..................................................... 6.3 KW............................................. 7.1KW
Oil Capacity..................................................... 1.1 Litres.......................................... 1.1 Litres
Fuel Consumption
1
/2
load.............................. 1.3 Litres/hr...................................... 1.3 Litres/hr
ALTERNATOR
Model.............................................................. GSA-L1-2 ....................................... GSA-L3-2
No. of Poles.................................................... 2...................................................... 2
Rotation Speed............................................... 3000 rpm......................................... 3000 rpm
Voltage............................................................ 240V................................................ 240V
Frequency....................................................... 50 Hz............................................... 50 Hz
Nominal power................................................ 4.18 kVA.......................................... 4.8kVA
Power factor.................................................... 0.9 p.f.............................................. 0.9 p.f.
Active power................................................... 3.8 kVA............................................ 4.36 kVA
Voltage System Regulation............................ Capacitor......................................... Capacitor
OVERALL DIMENSIONS AND WEIGHT (excluding wheel kit)
Length............................................................. 764mm............................................ 764mm
Width............................................................... 534mm............................................ 534mm
Height............................................................. 565mm............................................ 565mm
Weight............................................................ 64kg................................................. 84 Kg (incl. wheel kit)
Fuel Tank Capacity......................................... 19.0 Litres........................................ 19.0 Litres
Noise level...................................................... 80 db SPL-A.................................... 80 db SPL-A
WHEEL AND HANDLE KIT..................... Optional........................................... Supplied
MININUM CABLE SIZE:
Sec 1.5mm2 maximum length not exceeding 60mt.
Sec 2.5mm2 for length exceeding 60m and not exceeding 100m.
SPECIFICATIONS
1. Choke Lever
2. Fuel Control
3. ON/OFF Switch
4. Air Cleaner
5. Starter Handle
6. Oil Drain Plug
7. Oil Filler Cap/Dipstick

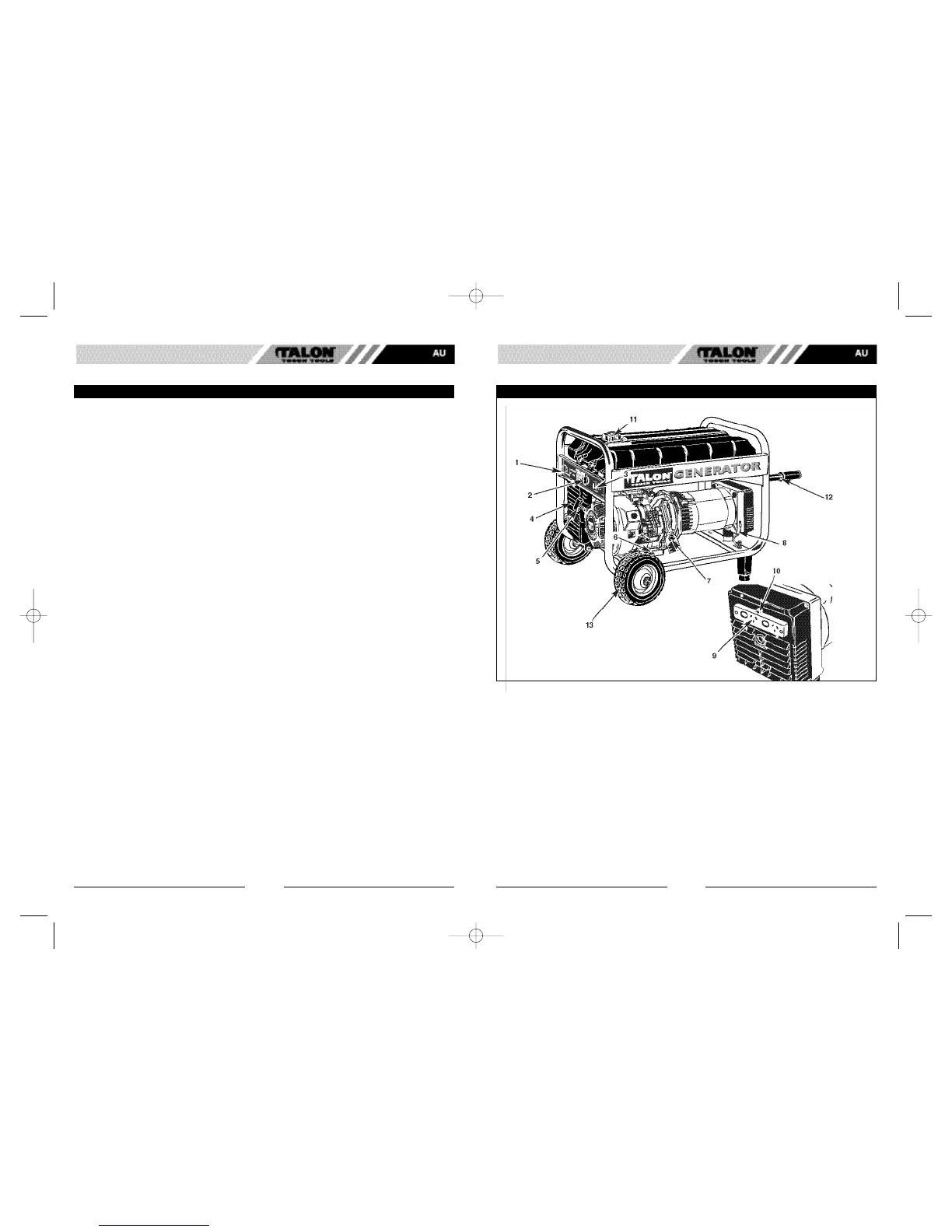

Figure 1
8. Ground Terminal
9. Power Outlets
10. Thermal Overload Switch
11. Fuel Tank Cap
12. Handles (Optional for EG500)
13. Wheels (Optional for EG500)
SPECIFICATIONS
IDENTIFICATION
