9 Pin D-sub
Pin No. Assignment
1 Ground
2 Speaker ID4
3 Speaker ID3
4 Speaker ID2
5 Speaker ID1
6 Speaker Out Left-
7 Speaker Out Left+
8 Speaker Out Right-
9 Speaker Out Right
15
11 15
6
10
15pin D-Sub
Pin No. Assignment Pin No. Assignment
1 Red 9 NC
2 Green 10 Ground-Sync
3 Blue 11 Ground
4 Ground 12 DDC Data
5 DDC 5V Standby 13 H.Sync
Cable Connection check 14 V.Sync
6 Ground-Red 15 DDC Clock
7 Ground-Green
8 Ground-Blue
18
17 24
9
16
24 Pin DVI-D
2
1
RCA
Pin No. Assignment Pin No. Assignment
1 T.M.D.S. Data2- 13 No Connect
2 T.M.D.S. Data2+ 14 No Connect
3 T.M.D.S. Data2 Shield 15 Cable Connection check
4 No Connect 16 Hot Plug Detect
5 No Connect 17 T.M.D.S. Data0-
6 DDC Clock 18 T.M.D.S. Data0+
7 DDC Data 19 T.M.D.S. Data0 Shield
8 No Connect 20 No Connect
9 T.M.D.S. Data1- 21 No Connect
10 T.M.D.S. Data1+ 22 Cable Connection check
11 T.M.D.S. Data1 Shield 23 T.M.D.S. Clock+
12 No Connect 24 T.M.D.S. Clock-
Pin No. Assignment
1 Coaxial S/PDIF audio signal
2 Ground

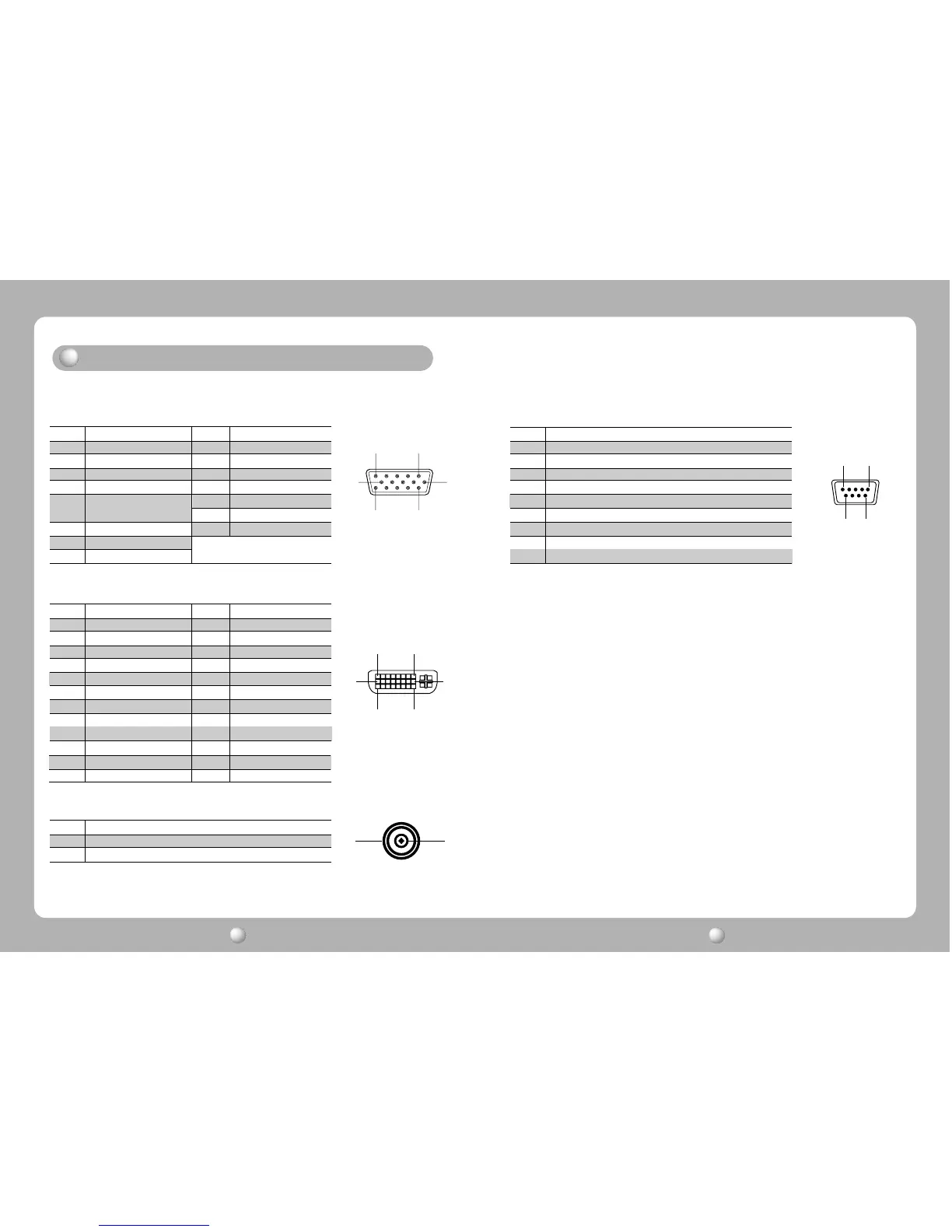

Pin assignment table of signal connector
