9
General Instructions
Installation of ChekPoint Faucets
The T&S ChekPoint Sensor Operated Faucet is a pre-tempered faucet. A mixing valve
(supplied) must be used in conjunction with the faucet. Water temperature can be
controlled by adjusting the mixing valve.

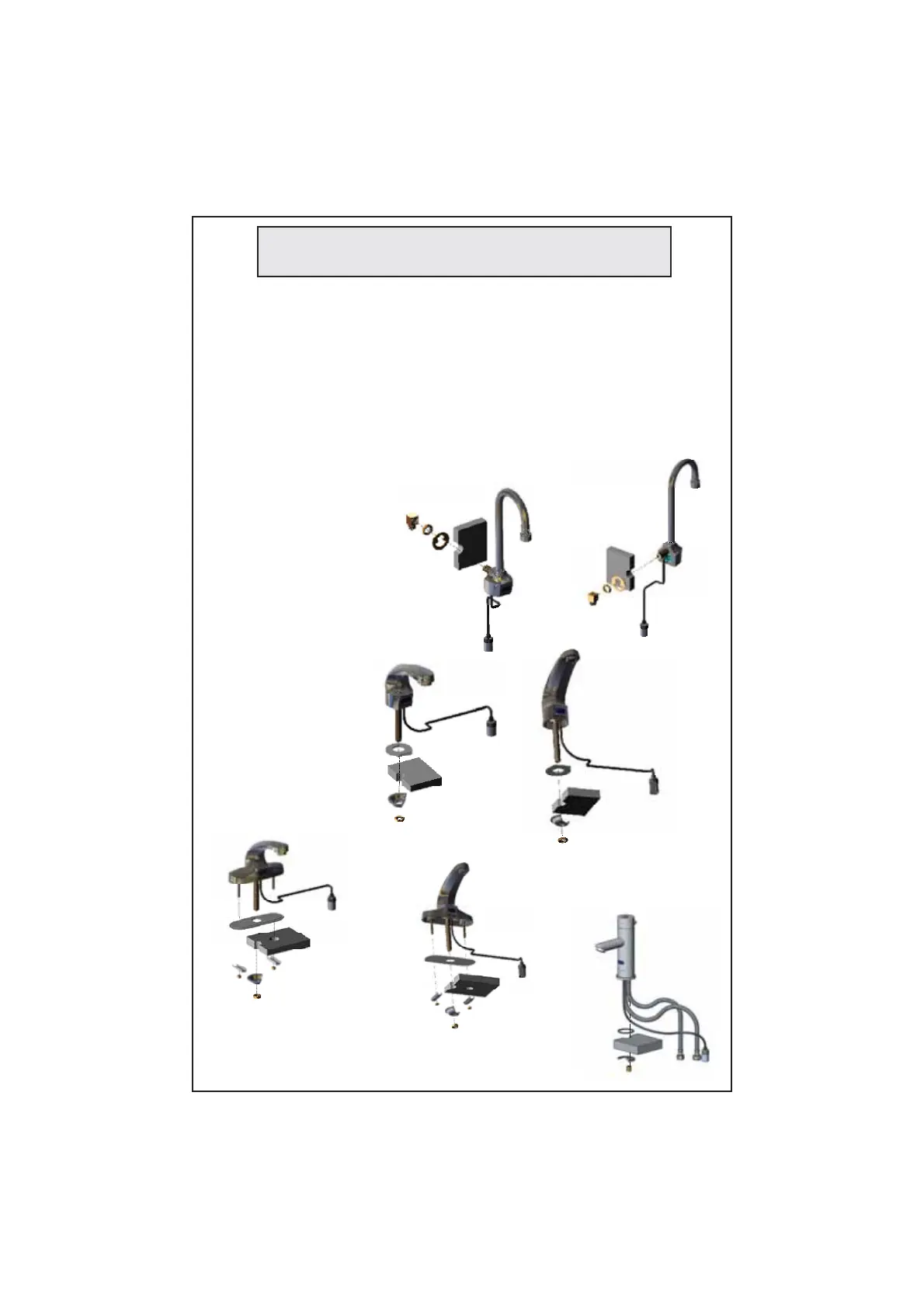

Install Faucet Assembly (Figures 2A, 2B, 2C and 2D)
TO MOUNT ON A SURFACE UP TO 1” (25mm) THICK
Insert faucet cable and spout shank through base gasket and then through the mount-
ing hole of scrub or wash-up sink. Secure using lockwasher and nut supplied.
Note: T&S Brass does
NOT supply hardware
necessary for mounting
the faucet on surfaces
thicker than 1” (25 mm)
thick.
Figure 2A
Wall-Mount
(Front View)
Figure 2B
Single Hole Deck-Mount
(Front View)
(Back View)
(Bottom View)
(Front View)
Figure 2C
4” Deck-Mount
(Bottom View)
Figure 2D
EC-3106
