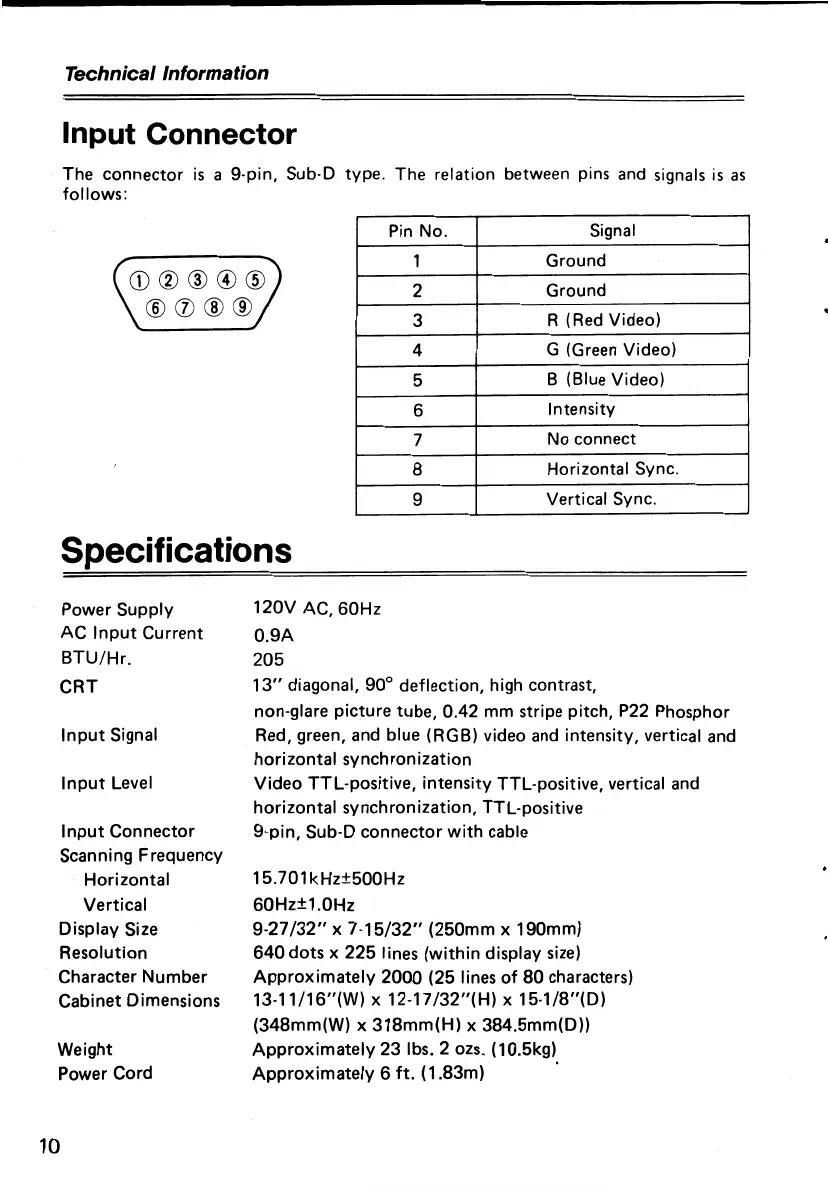

Technical Information
Input Connector
The connector
is
a 9-pin, Sub-D type. The relation between pins
and
signals
is
as
follows:
Pin No.
Signal
1
Ground
G)®®@@
®CV®®
2
3
Ground
R (
Red
Video)
4
G
(Green
Video)
5
B (Blue Video)
6
Intensity
7
No connect
8
Horizontal Sync.
9
Vertical Sync.
Specifications
Power Supply
AC
Input
Current
BTU/Hr.
CRT
Input
Signal
Input
Level
Input
Connector
Scanning Frequency
Horizontal
Vertical
Display Size
Resolution
Character Number
Cabinet Dimensions
Weight
Power
Cord
10
120V
AC, 60Hz
0.9A
205
13"
diagonal, 90° deflection, high contrast,
non-glare picture tube, 0.42 mm stripe pitch,
P22
Phosphor
Red, green, and blue (RGB) video
and
intensity, vertical
and
horizontal synchronization
Video TTL-positive, intensity TTL-positive, vertical
and
horizontal synchronization, TTL-positive
9-pin, Sub-D connector
with
cable
15.701 kHz±500Hz
60Hz±1.0Hz
9-27/32"
x
7-15/32"
(250mm x 190mm)
640 dots x 225 lines
(within
display
size)
Approximately
2000 (25 lines
of
80
characters)
13-11/16"(W)
x
12-17/32"(H)
x 15-1/B"(D)
(348mm(W) x
318mm(H)
x 384.5mm(D))
Approximately
23 lbs. 2
ozs.
(10.5kg)
Approximately
6
ft.
( 1.83ml ·
