SET-UP DIAGRAMS

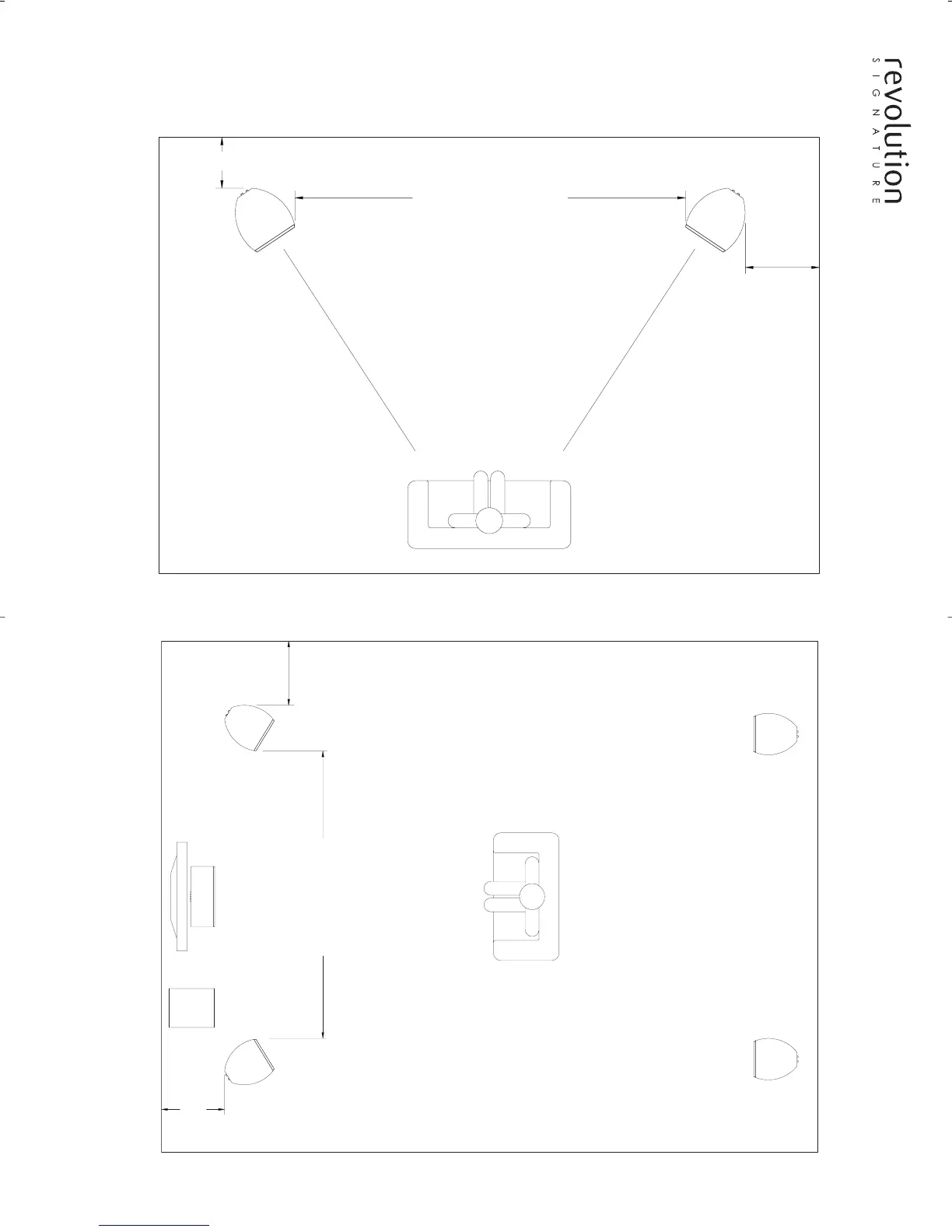

Fig.6 Recommended Positioning - Stereo Pair
1 METRE
OR MORE
0.5 METRES OR MORE
1.5 TO 4.5 METRES
0.5 METRE
OR MORE
SUB
1.5 TO 4.5 METRES
1.0 METRE
OR MORE
REAR
REAR
LCR
Fig.7 Recommended Positioning - Home Cinema
