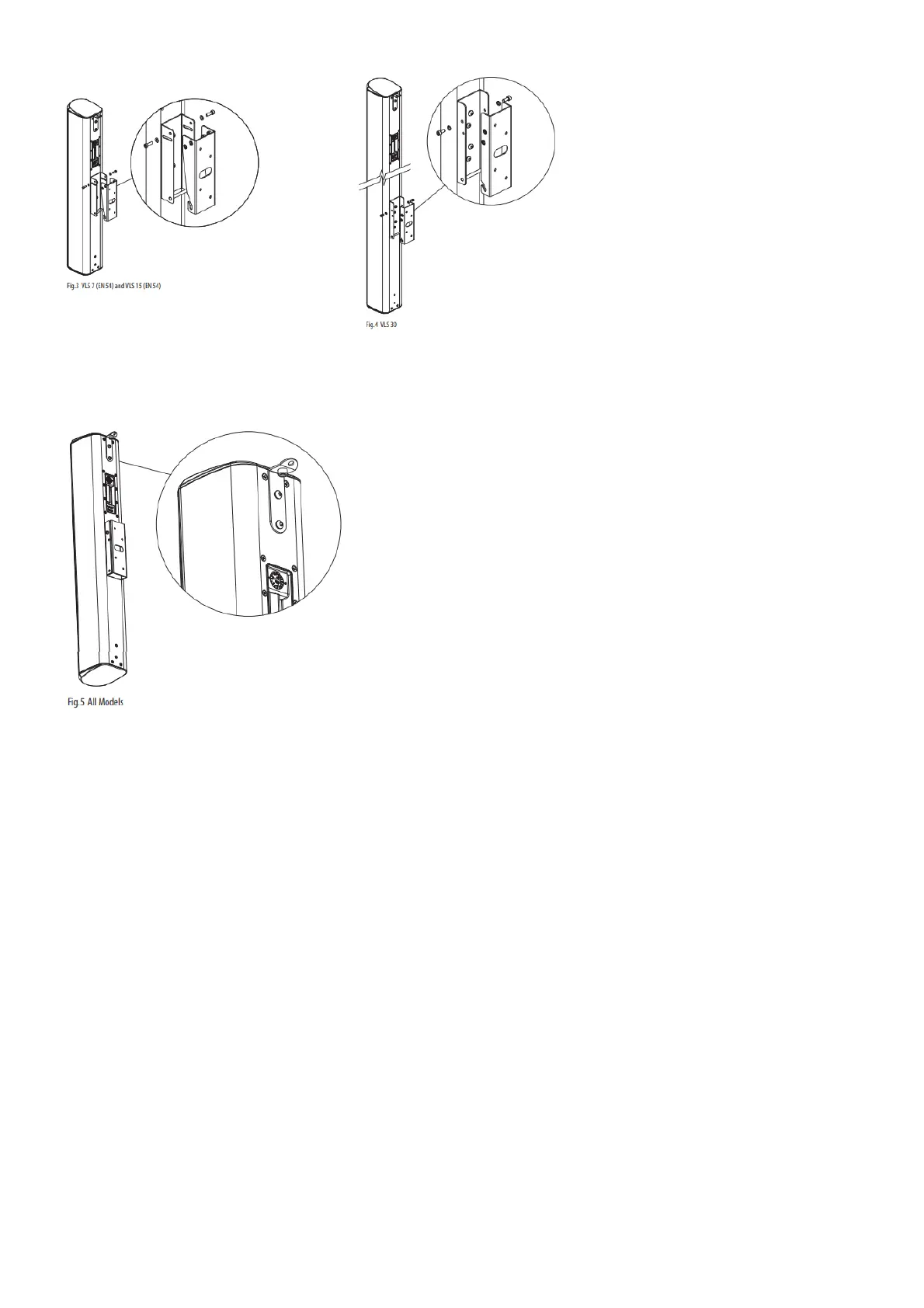

provides a 4 degree downward tilt. (Fig.4)
Flying Bracket
Each VLS Series loudspeaker is also supplied with a flying bracket. The bracket is attached to the top two inserts using the supplied
M6 screws (Fig.5). The two bottom inserts can be used as pull back if required.
Pan-Tilt Bracket (optional)
A pan-tilt bracket is available which allows panning and tilting for flexible orientation along both horizontal and vertical axes.
Installation instructions are provided with the bracket.
Rigging and safety procedures
The installation of Tannoy loudspeakers using the dedicated hardware should be carried out only by fully qualified installers, in
accordance with all the required safety codes and standards that are applied at the place of installation.
WARNING: As the legal requirements for flying vary from country to country, please consult your local safety standards office before
installing any product. We also recommend that you thoroughly check any laws and bylaws prior to installation. For more detailed
information on rigging hardware and safety procedures, please consult the full VLS Series, Operation Manual.
Outdoor applications
VLS Series loudspeakers are rated IP64 for resistance to dust and moisture ingress, and are resistant to both salt spray and UV
exposure, making them suitable for use in most outdoor applications. Please consult with your Tannoy dealer before installation in
applications with extreme exposure to adverse environmental conditions such as prolonged heavy rainfall, prolonged temperature
extremes, etc.
IMPORTANT NOTE: The mounting of a permanently installed sound system may be dangerous unless undertaken by qualified
personnel with the required experience and certification to perform the necessary tasks. Walls, floors or ceilings must be capable of
safely and securely supporting the actual load. The mounting accessory used must be safely and securely fixed both to the
loudspeaker and to the wall, floor or ceiling.
When mounting rigging components on walls, floors, or ceilings, ensure that all fixings and fasteners used are of an appropriate size
and load rating. Wall and ceiling claddings, and the construction and composition of walls and ceilings, all need to be taken into
account when determining whether a particular fixing arrangement can be safely employed for a particular load. Cavity plugs or other
specialist fixings, if required, must be of an appropriate type, and must be fitted and used in accordance with the maker’s
instructions.
The operation of your speaker cabinet as part of a flown system, if installed incorrectly and improperly, can potentially expose
