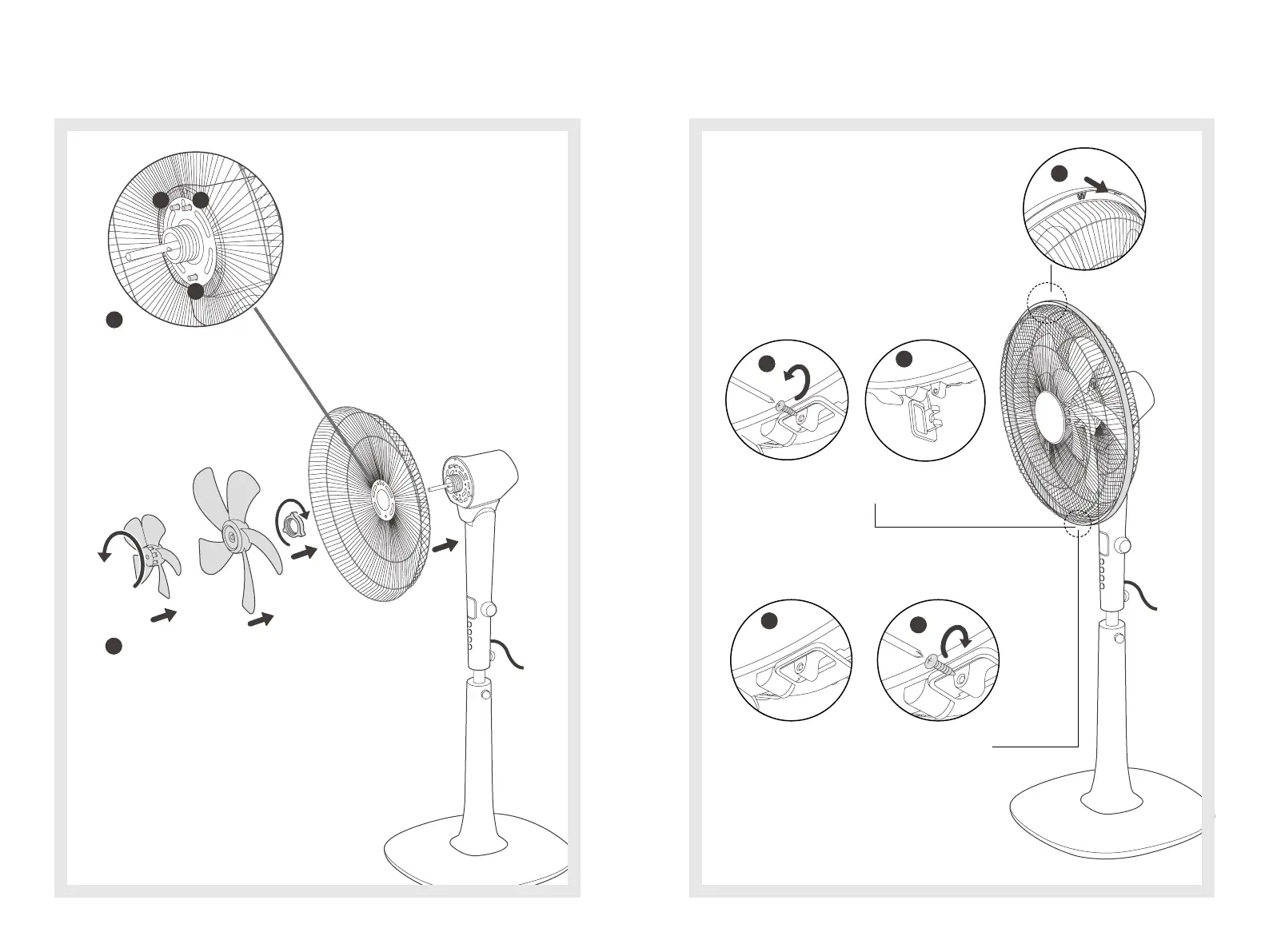

Position the Rear Grille onto
the Head Assembly making
sure the three alignment
holes (A，B，C) are aligned
with the three prongs.
Screw on the grill nut clockwise.
Install the large blade onto the
shaft until retaining pin fits into
the notch, then screw on the small
blade counterclockwise.
Blade & Grille
Loosen the Locking Screw and open the
Locking Bracket.
Close the Locking Bracket and secure the
grilles with the Locking Screw.
Blade & Grille
7
8
10
12
13
9
11
A B
C
Align and clip the Rear Grille into the indent
of the Locking Clips on the Front Grille.
To Next Page
