Tapco S5 - Hookup Diagrams; Stereo Speaker Configuration

7

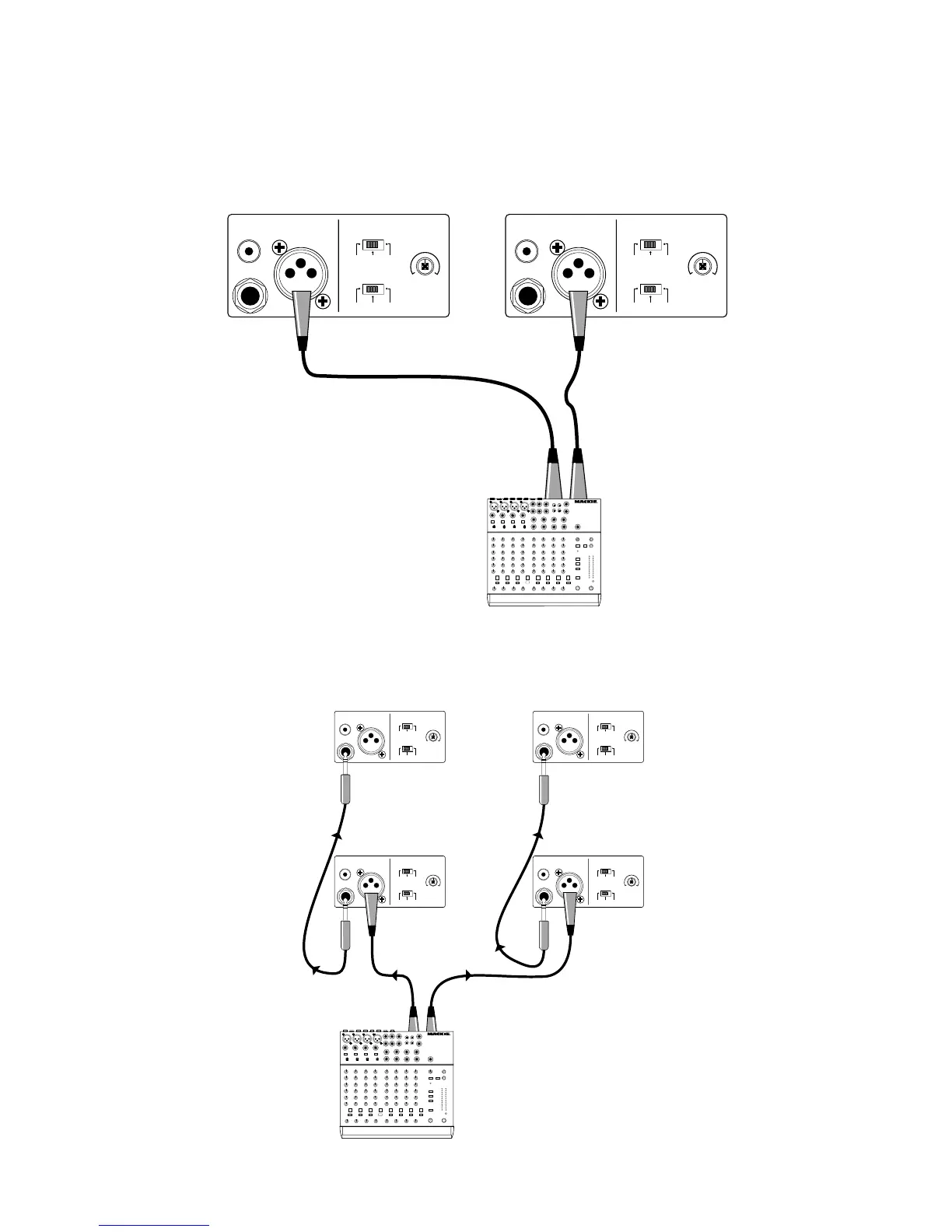

Hookup Diagrams
Stereo Speaker Hookup
Daisy-Chaining Two Speakers Per Side
Note: Use stereo 1/4”
TRS plugs for the “Thru”
connections. If you use
mono 1/4” TS plugs,
you will unbalance the
XLR connections and
suffer a drop in signal
level of 6 dB.
OFF
XLRPHONO
INPUTS SETTINGS
INPUT
LEVEL
LOW FREQ FILTER
HIGH FREQ FILTER
0
(NORMAL)
–2dB
+
2dB
TRS
S-5 ACTIVE STUDIO MONITOR
MAX
0
(NORMAL)
+2dB +4dB
OFF
XLRPHONO
INPUTS SETTINGS
INPUT
LEVEL
LOW FREQ FILTER
HIGH FREQ FILTER
0
(NORMAL)
–2dB
+
2dB
TRS
S-5 ACTIVE STUDIO MONITOR
MAX
0
(NORMAL)
+2dB +4dB
Mixer or
Preamplifier
Right
Line level
Output
Left
Line level
Output
1202-VLZ PRO
OFF
XLRPHONO
INPUTS SETTINGS
INPUT
LEVEL
LOW FREQ FILTER
HIGH FREQ FILTER
0
(NORMAL)
–2dB
+
2dB
TRS
S-5 ACTIVE STUDIO MONITOR
MAX
0
(NORMAL)
+2dB +4dB
OFF
XLRPHONO
INPUTS SETTINGS
INPUT
LEVEL
LOW FREQ FILTER
HIGH FREQ FILTER
0
(NORMAL)
–2dB
+
2dB
TRS
S-5 ACTIVE STUDIO MONITOR
MAX
0
(NORMAL)
+2dB +4dB
OFF
XLRPHONO
INPUTS SETTINGS
INPUT
LEVEL
LOW FREQ FILTER
HIGH FREQ FILTER
0
(NORMAL)
–2dB
+
2dB
TRS
S-5 ACTIVE STUDIO MONITOR
MAX
0
(NORMAL)
+2dB +4dB
OFF
XLRPHONO
INPUTS SETTINGS
INPUT
LEVEL
LOW FREQ FILTER
HIGH FREQ FILTER
0
(NORMAL)
–2dB
+
2dB
TRS
S-5 ACTIVE STUDIO MONITOR
MAX
0
(NORMAL)
+2dB +4dB
Thru
Thru
Mixer or
Preamplifier
Right
Line level
Output
Left
Line level
Output
1202-VLZ PRO
