5. SPARE PARTS
IOM manual Tapflo Metal Series 43

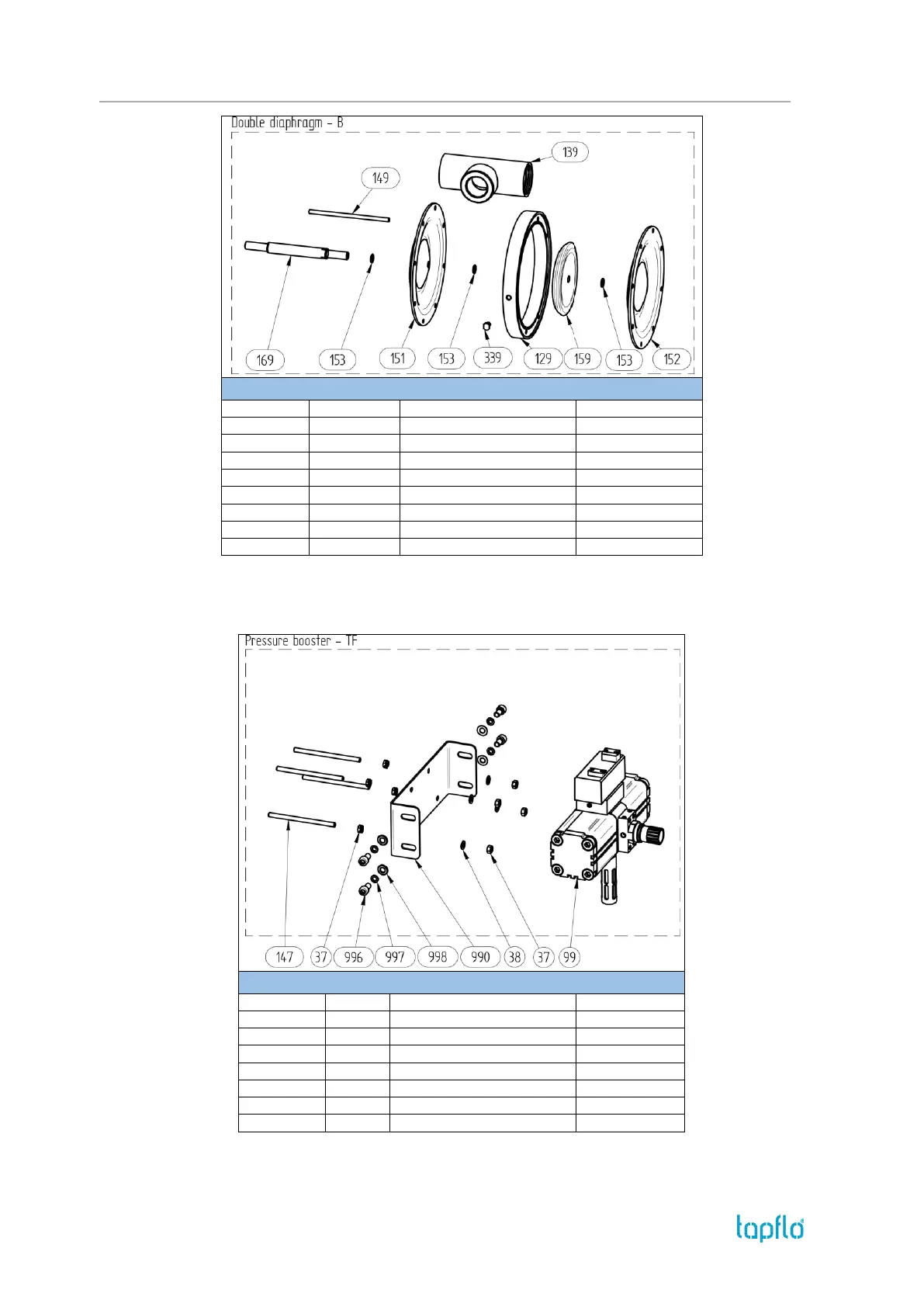

Double diaphragm system - TB
129
1
Set of spacers (right + left)
PP
139
2
In/outlet
AISI 316L
149
6/8*
Pin screw for TB pump
A4-80
151
2
Air side diaphragm
EPDM, PTFE, NBR
152
2
Liquid side diaphragm
EPDM, PTFE, NBR
153
4/6**
Diaphragm O-ring
EPDM, FKM, NBR
159
2***
Diaphragm spacer
PE
169
1
Diaphragm shaft
AISI 304L
339
2
Spacer plug
PP
* TB70, TB120 / TB220, TB420
** TB70 / TB120, TB220, TB420
*** TB120, TB220, TB420 only
Pump with pressure booster - TF
99
1
Booster
-
990
1
Booster mounting plate
AISI 304
996
4
Booster mounting screw
A4-70
997
4
Booster mounting washer
A4-80
998
4
Booster mounting washer
A4-80
147
4
Pin screw
AISI 316L
37
8
Additional nuts
AISI 304
38
4
Additional washers
AISI 304
