4

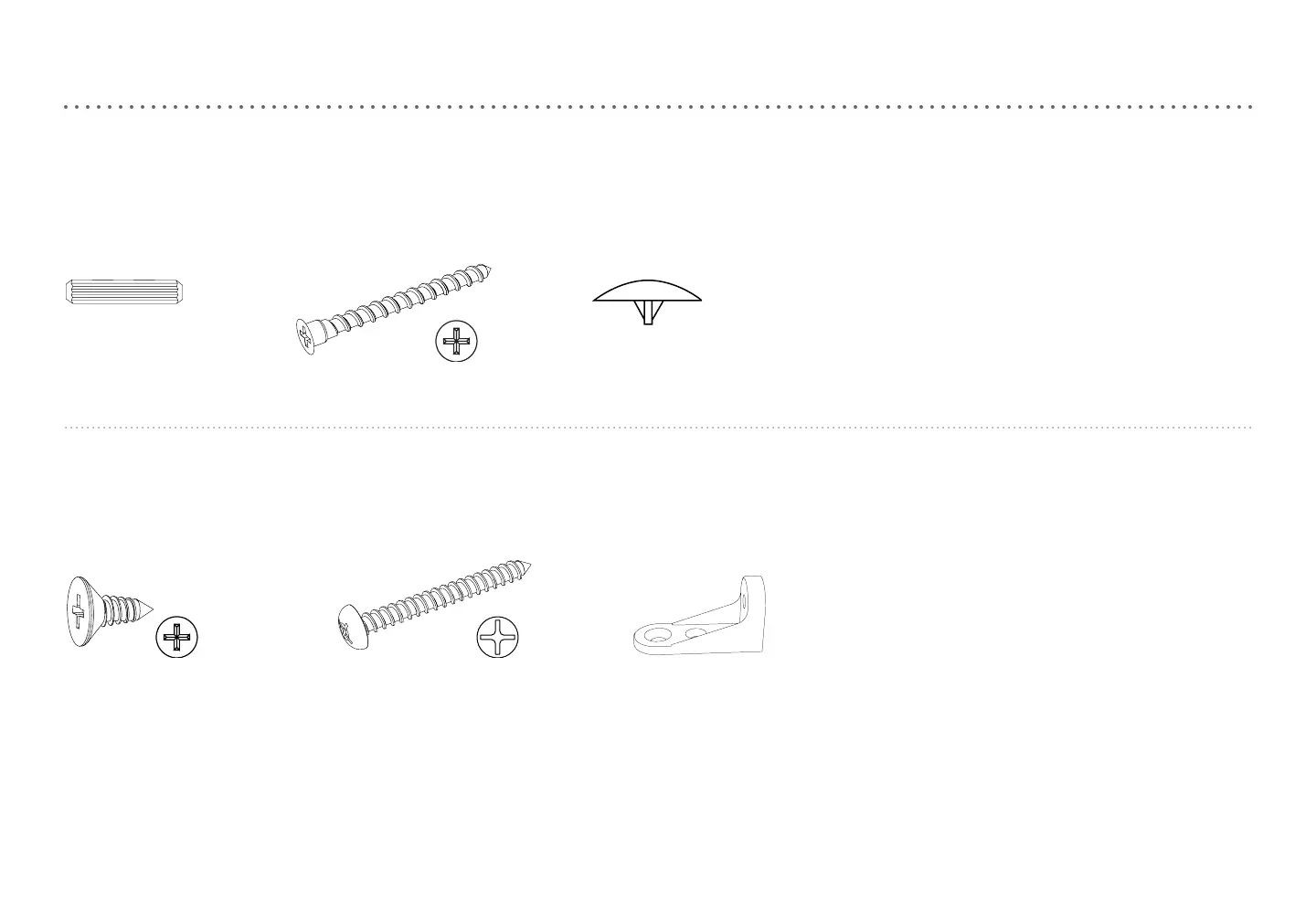

hardware
(H1) x 16
pre-glued dowel
(H2) x 20
assembly screw
#10 x 1-1/2 in.
(H3) x 20
screw cover
(H6) x 1
L-bracket
(H4) x 1
L-bracket screw
#10 x 1/2 in. athead
(H5) x 1
wall screw
#10 x 1-1/2 in.
