Target 6-Cube - Page 14

14

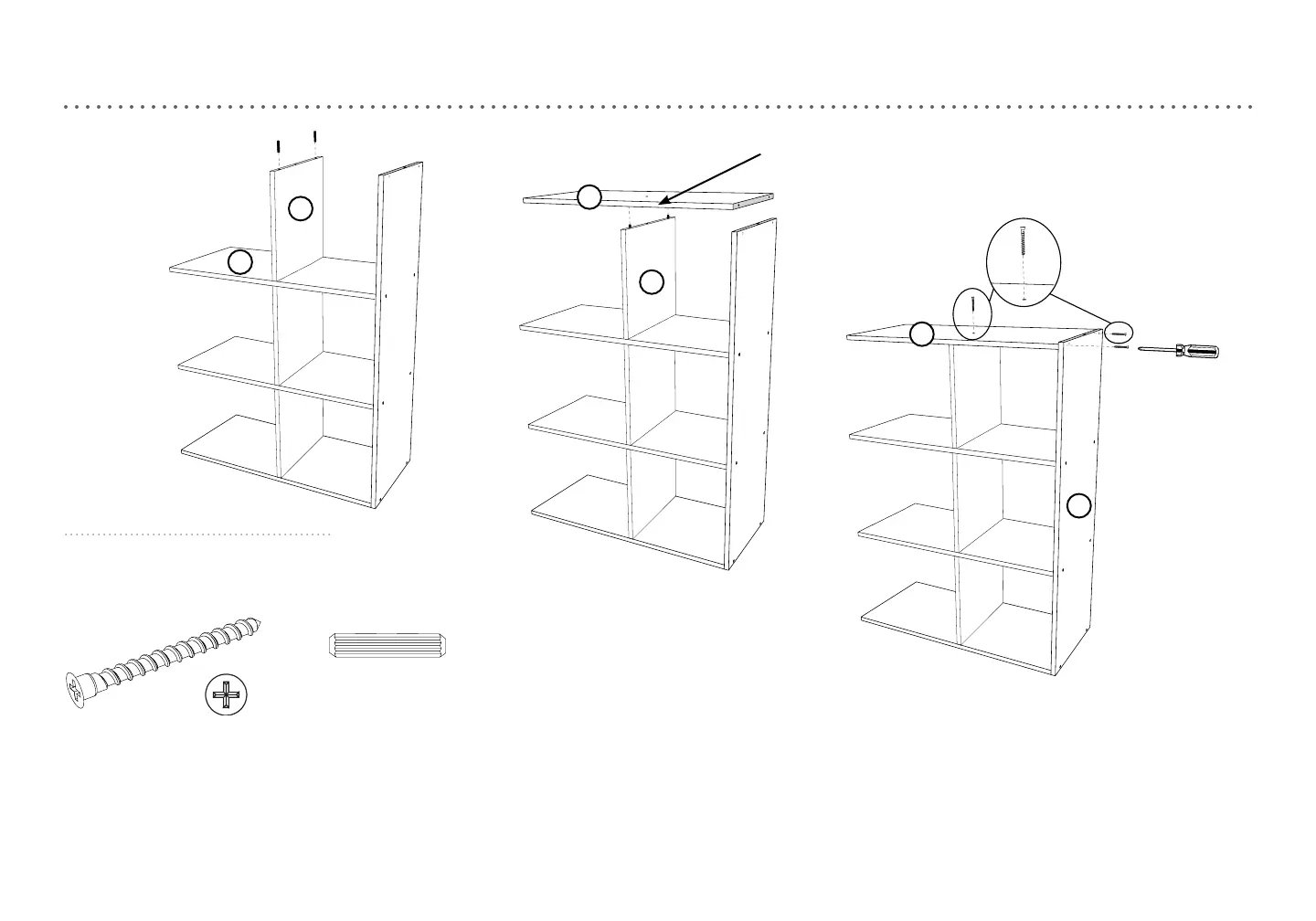

1. Insert SHORT dowels into top vertical divider. Be sure to assemble with all nished edges to front.
2. Align holes in underside of top panel and place top panel into position.
3. Secure top panel with two screws through side panel.
4. Secure top vertical divider with one screw through top panel.
D
C
A
B
D
B
finished edge
step 6.
(H1) x 3
assembly screw
#10 x 1-1/2 in. athead
(H5) x 2
short dowel
