15

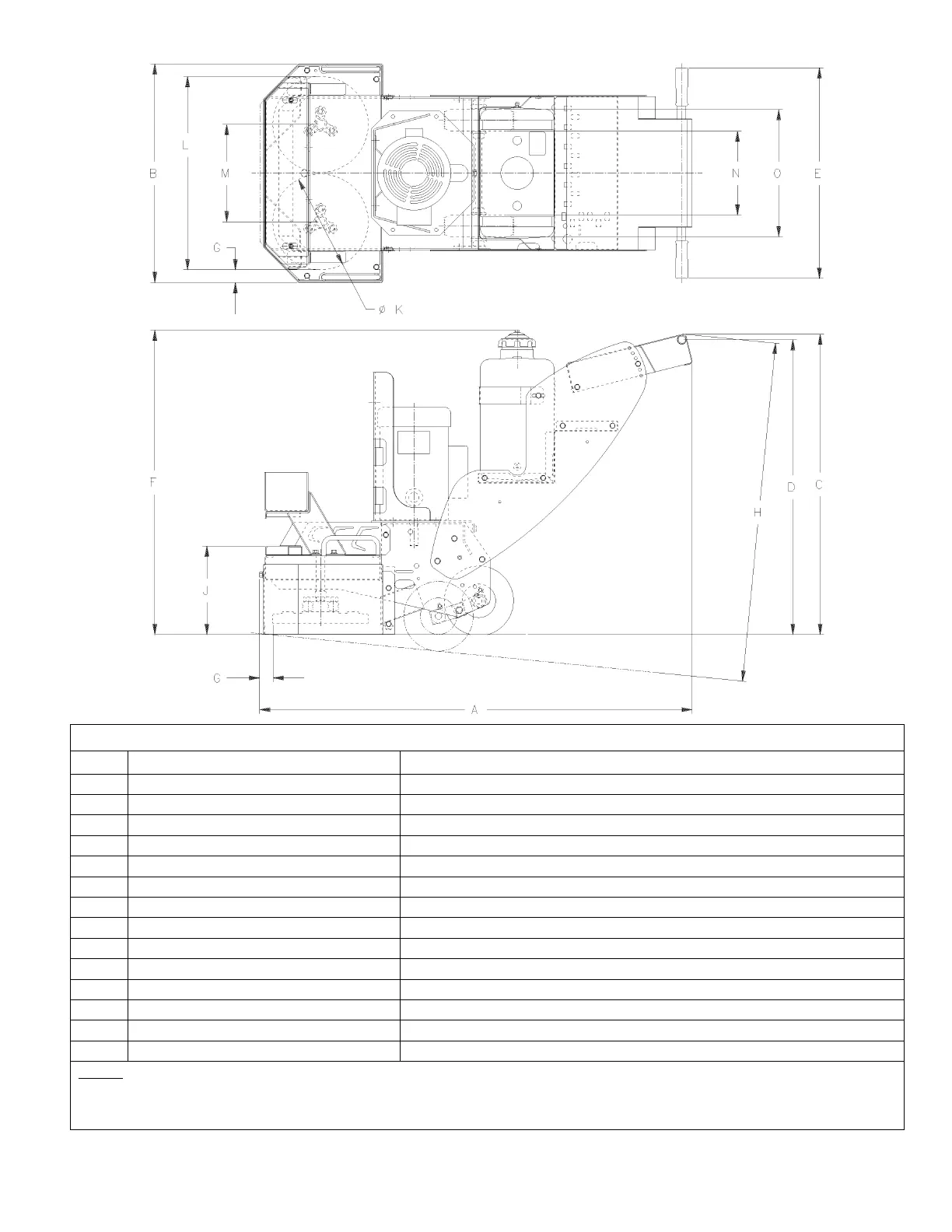

(DT15_dims.tif)
Dimensions (Note 1)
Item
Length (cm) Description
A 50.2” (127.5) Length – Maximum (With Handle In Low Position)
B 25.12” (63.8) Width
C 37.6” (95.5) Operating Height (Maximum – Note 1)
D 37.0” (94.0) – 31.5” (80.0) Handle Height (Maximum – Minimum)
E 24.2” (61.5) Handle Width
F 35.0” (88.9) Water Tank Height
G 1.50” (3.8) Grind To Wall (Front and Side)
H 41.9 (106.5) Transport Height (Maximum – Note 2)
J 10.2” (25.8) Front Height
K 11.0” (27.9) Disk Diameter
L 22.2 (56.4) Grinding Width
M 11.200 (28.45) Spindle Center Distance
N 9.6” (24.4) Width Inside Tires
O 14.6” (37.0) Width Outside Tires
Notes:
1. Dimensions are for the machine with the axle in “operation” position unless otherwise specified.
2. Dimension “H” is for the machine with the axle in “Transport” position.
