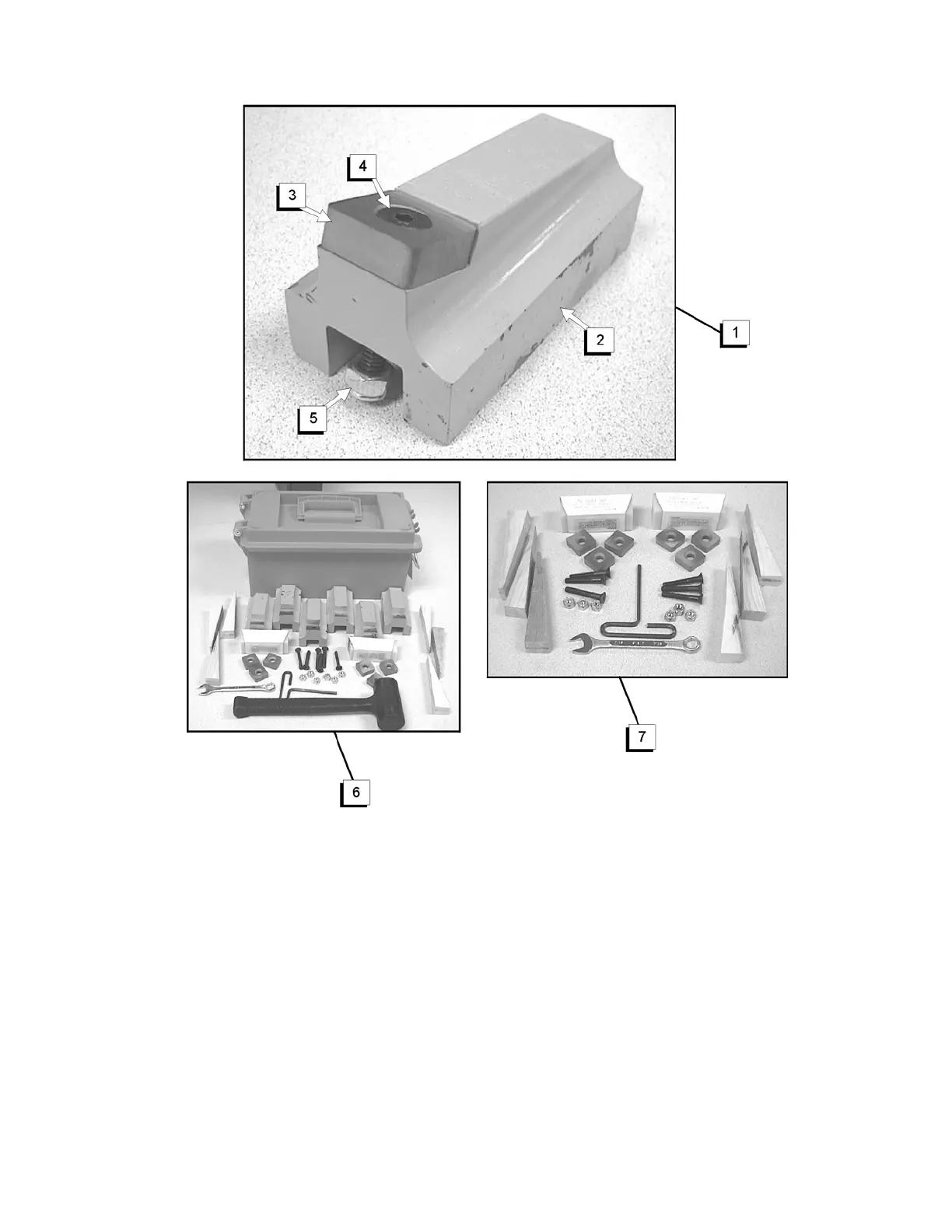

Diagram 14 – Tungsten Carbide Block Assy (Complete Kit P/N 177823)

Diagram 14 Parts List – Tungsten Carbide Block Assy

ITEM P/N DESCRIPTION QTY

1 190097 Carbide Cutter Assy (Includes Items 2-5) 1

2 ------ Block, Cutter 1

3 ------ Cutter, Tungsten Carbide 1

4 ------ Screw, Flat Socket Head, ¼-20 x 1.75” Lg. 1

5 020195 Locknut, Fiber, ¼-20UNC 1

6 177823 Kit, Complete, Tungsten Carbide Cutter 1

(Includes 6 Blocks, 6 Tungsten Carbide Cutters, Hardware,

Installation Tools, 6 Wooden Wedges, and Carrying Case)

7 177824 Kit, Replacement Cutters 1

(Includes 6 Tungsten Carbide Cutters, 6 Wooden Wedges, Hardware, and

Tools To Mount Cutters)

Note: Nut (Item 5) Shown Loose For Photographic Purposes Only.

Target DT15E - Wiring Diagram for 1.5 Hp Electric Model - Diagram 15 (Text in English Only)
