Target DT15E - Page 48

48

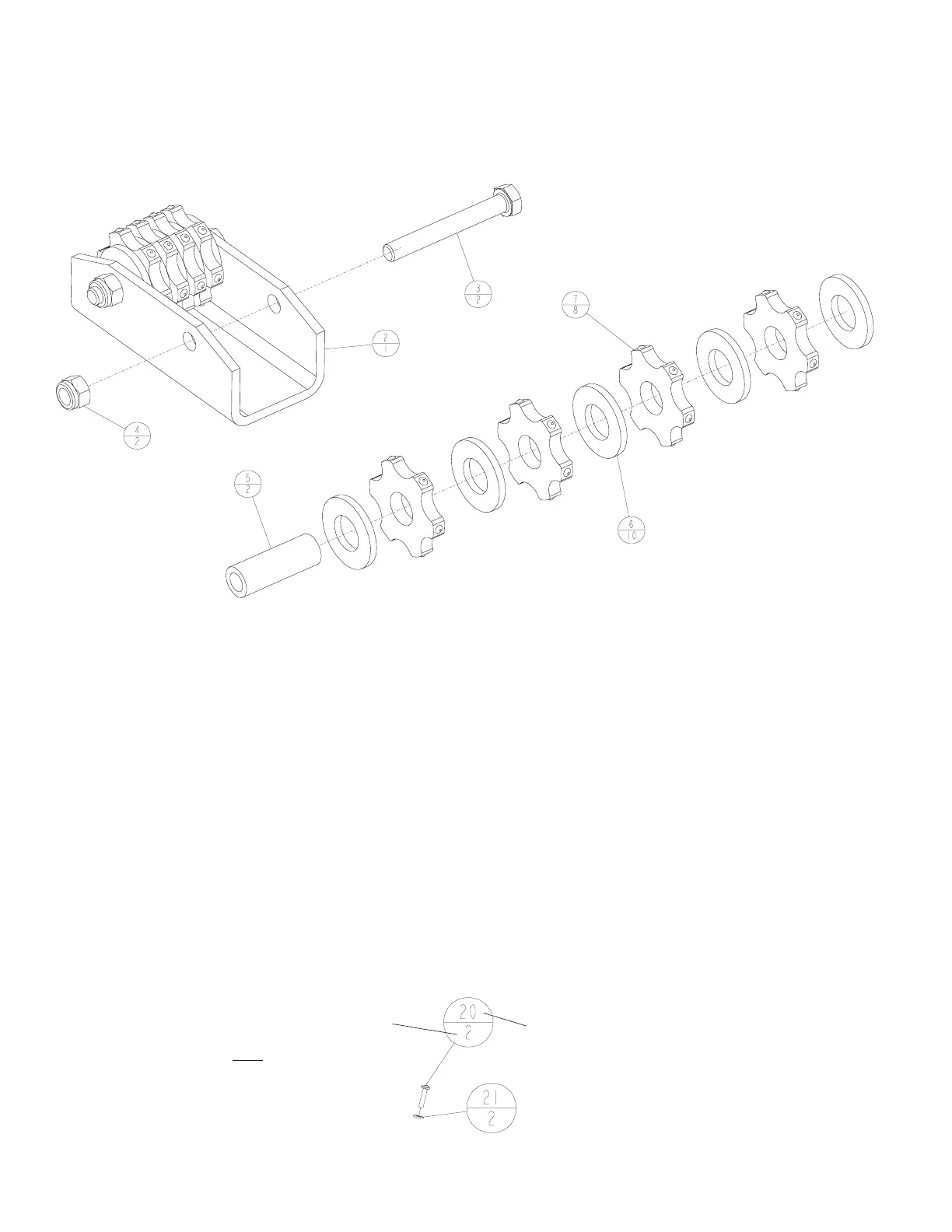

Diagram 13 – Tungsten Carbide Cutter Assy, P/N 177829
(6 Required per Machine)
Diagram 13 Parts List – Tungsten Carbide Cutter Assy – P/N 177829
(6 Required Per Machine)
1 177829 TC Cutter Assembly 1
2 177862 Cutter Wheels Bracket 1
3 020354 Capscrew, Hex Hd .312-18UNC x 2.50 2
4 020197 Locknut, Fiber .3125-18UNC 2
5 177864 Cutter Wheel Spacer, 5/8 OD 2
6 020767 Washer, Flat, .625 Dia SAE 10
7 177830 TC Cutter Wheel 8
Parts List
Callout Designation:
ITEM
The Item Number Shown
On The Diagram.
QTY
The Quantity only at this location.
This the total quantity used
throughout the entire diagram.
is not
