Target DT15E - Page 50

52 pages

Save Page as PDF

To Next Page

To Next Page

To Previous Page

To Previous Page

Loading...

50

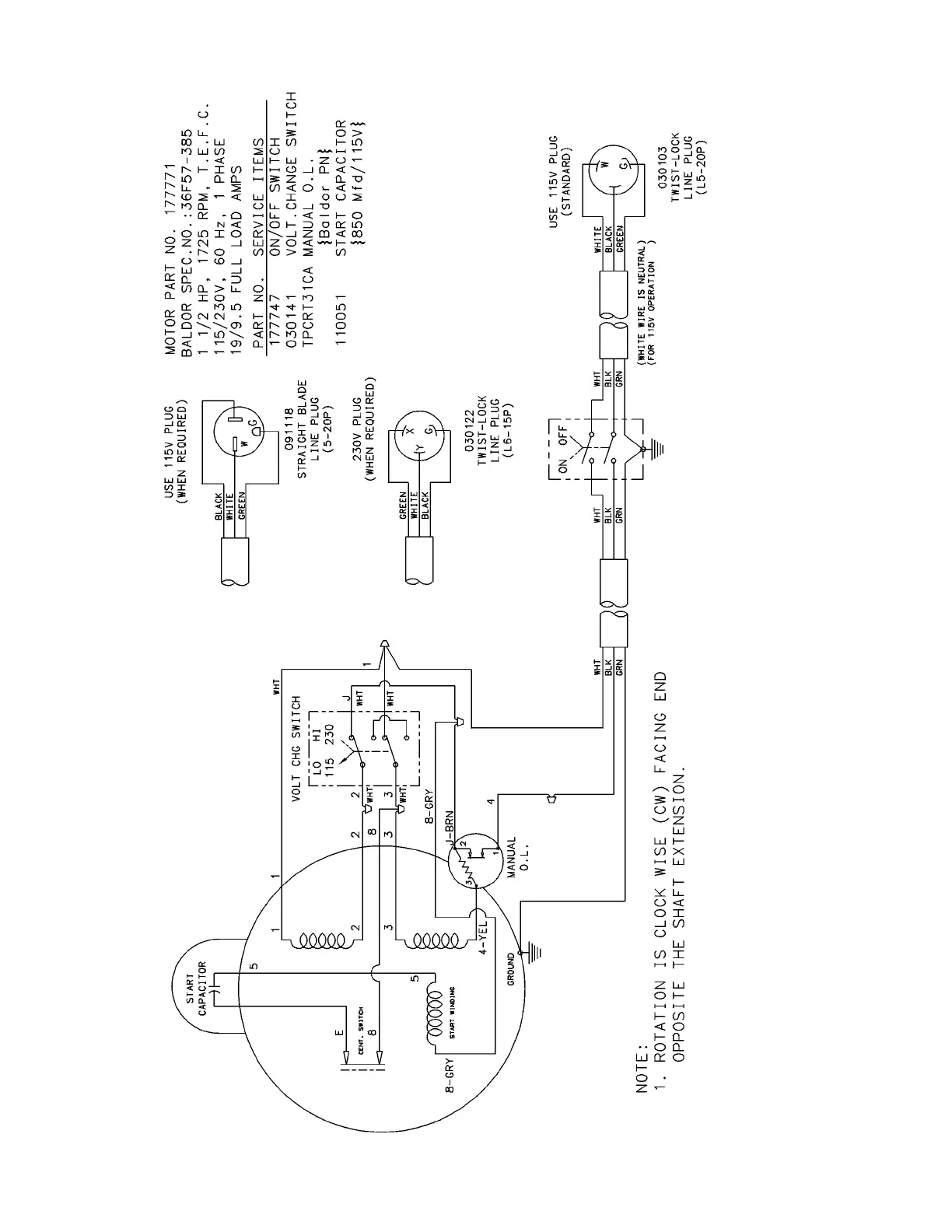

Diagram 15 – Wiring Diagram, 1.5hp Electric Model

Table of Contents

Table of Contents2
Symbol Definitions (English & Spanish)3
Hearing Hazard Warnings (English & Spanish)5
Decals -Descriptions and Locations (English & Spanish)6
Figures: FIG. 1 - FIG. 33 (English and Spanish)7
Parts Identification (English and Spanish)11
English Language Section: SAFETY WARNINGS - Do's & DO Not's12
Wiring Diagram for 1.5 Hp Electric Model - Diagram 15 (Text in English Only)49
