46

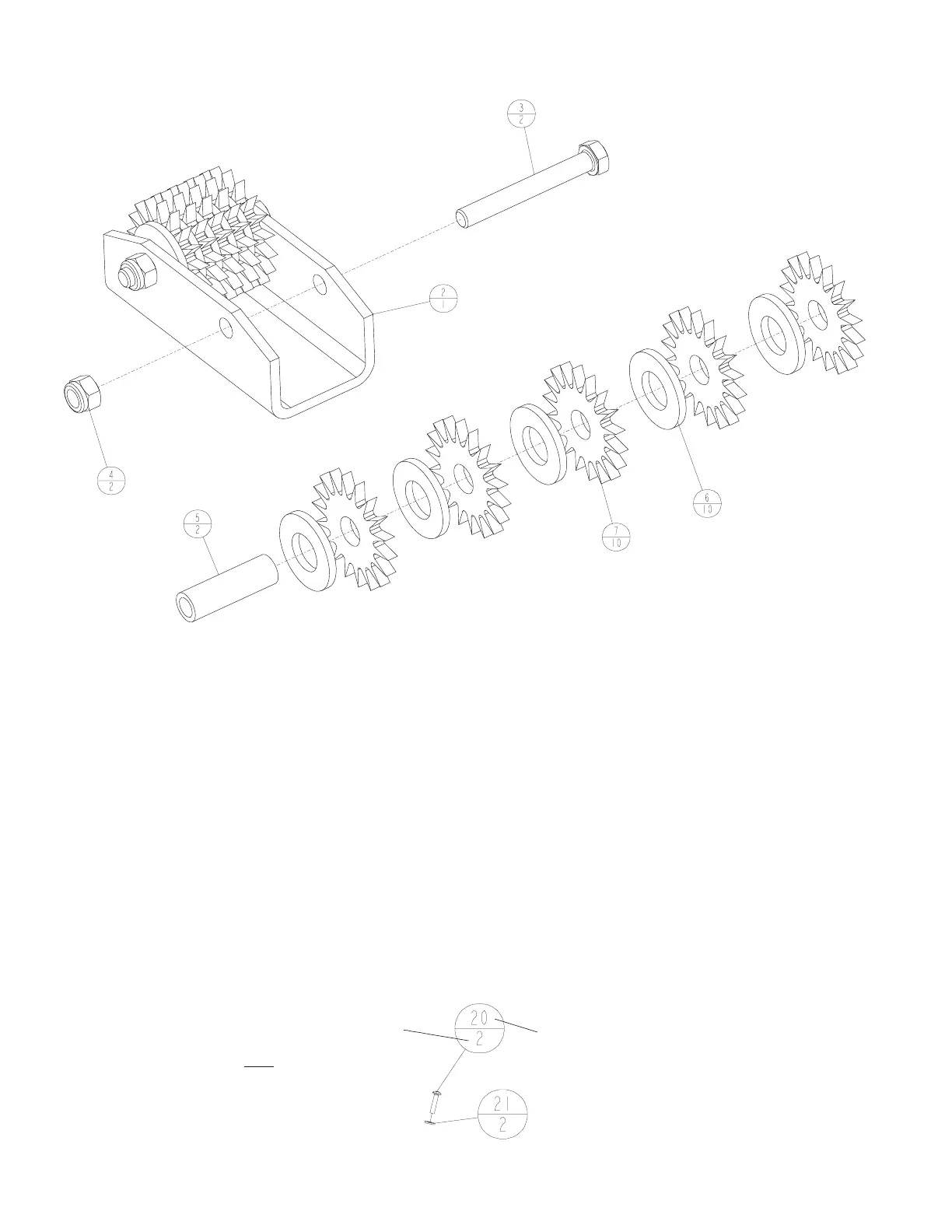

Diagram 11 – Star Cutter Assy, P/N 177825 (6 Required per Machine)
Diagram 11 Parts List – Star Cutter Assy – P/N 177825 (6 Required Per Machine)
ITEM P/N DESCRIPTION QTY
1 177825 Star Cutter Assembly 1
2 177862 Cutter Wheels Bracket 1
3 020354 Capscrew, Hex Hd .312-18UNC x 2.50 2
4 020197 Locknut, Fiber .3125-18UNC 2
5 177865 Cutter Wheel Spacer, 1/2 OD 2
6 020767 Washer, Flat, .625 Dia SAE 12
Note: Depending on their thickness, 2 washers (Item 6) could be required on one end of each row of
cutters. If the washers are thicker, then the quantity (10) shown in the diagram will be correct, and 2
washers can be eliminated from the assembly.
7 177826 Star Cutter Wheel 10
Callout Designation:
On The Diagram.
QTY
The Quantity only at this location.
This the total quantity used
throughout the entire diagram.
is not
