Target osa DA7874 - Step 2: Bottom Bed Headboard and Footboard

step 2.
(H7) x 8
(H3) x 8
wood joint connector (4mm hex head)
ø6.5 x 100mm

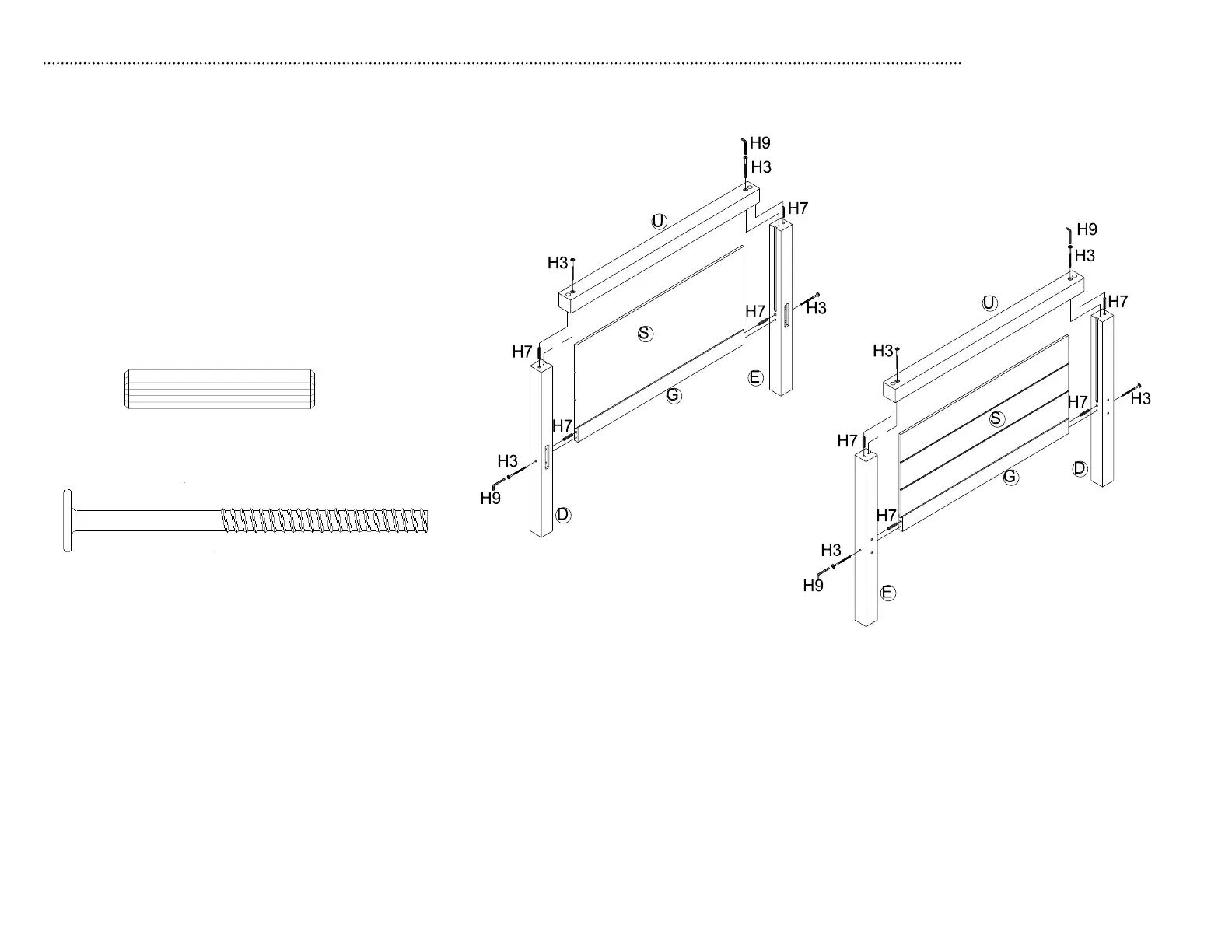

Bottom Bed Head and Footboard
3. Attach bottom headboard top rail (U) to posts (D & E) with wood joint connectors (H3) using allen key (H9).
9
small wood dowel
ø10 x 50mm
4. Repeat this step to assemble other headboard.
1. Insert small wood dowels (H7) into the ends of bottom posts (D & E) and headboard bottom rail (G).
2. Insert headboard panel (S) into the grooves of headboard bottom rail (G). Attach headboard bottom rail (G) to posts (D & E)
using wood joint connectors (H3) and allen key (H9).
