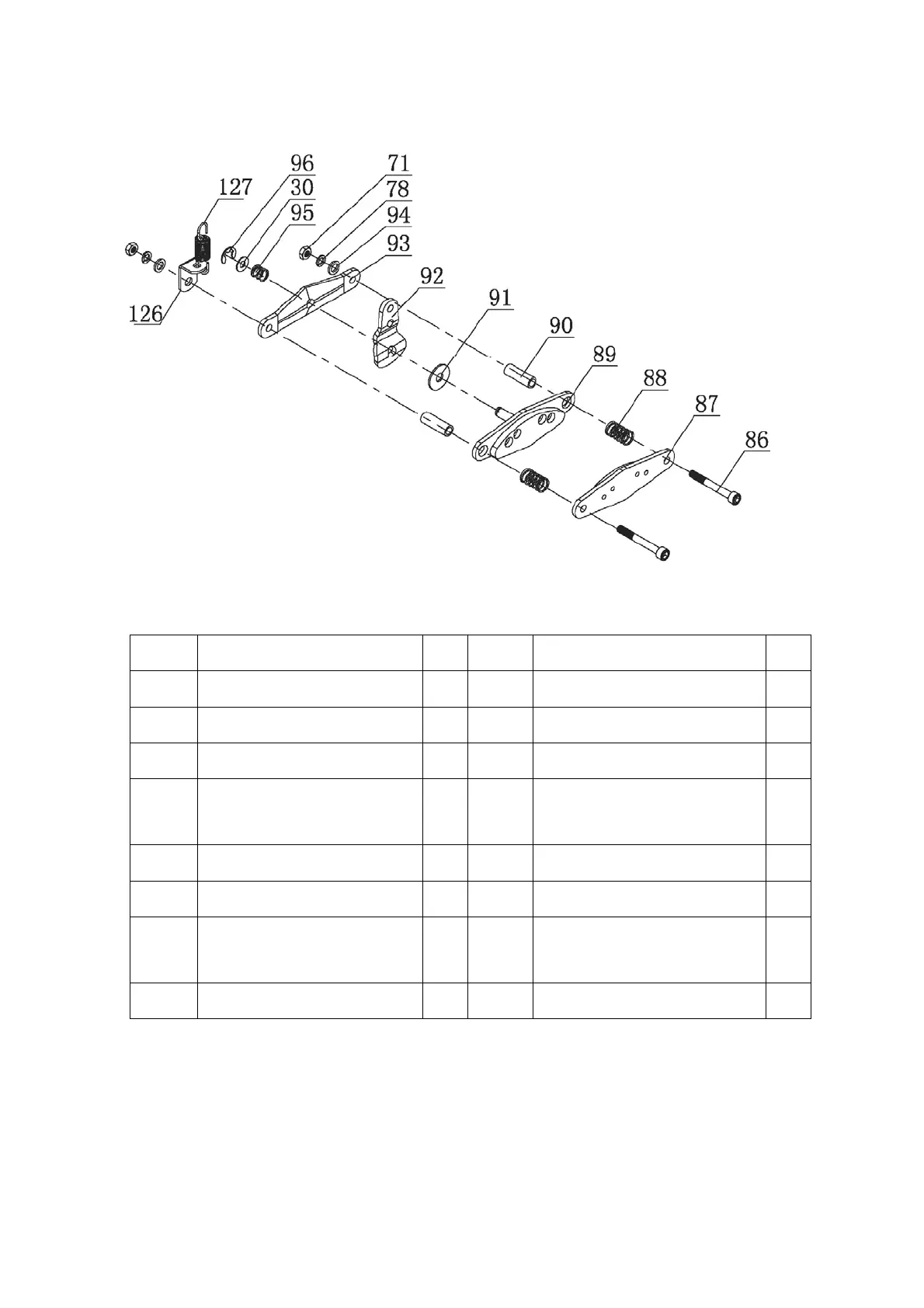

BRAKE ASSY.
Part # Description Qty
Part #
Description Qty
30 Flat Washer Ø8 1 91 Large Washer Ø8 1
71 Lock Nut Nylon M6 2 92 Tie Plate 1
78 Spring Washer Ø6 2 93 Adjusting Plate 1
86
Hexagonal Socket Head Cap
Screw M6
x50
2
94
Flat Washer Ø6
2
87 Brake Mounting Plate Assy, 1 95 Brake Spring B 1
88 Brake Spring A 2 96 Split Washer Ø6-E 1
89
Brake Mounting Plate A
Assy,
1
126
Moving Plate C
1
90 Bush 2 127
Tension Spring
1
