Tarter CattleMaster 120 - Page 2

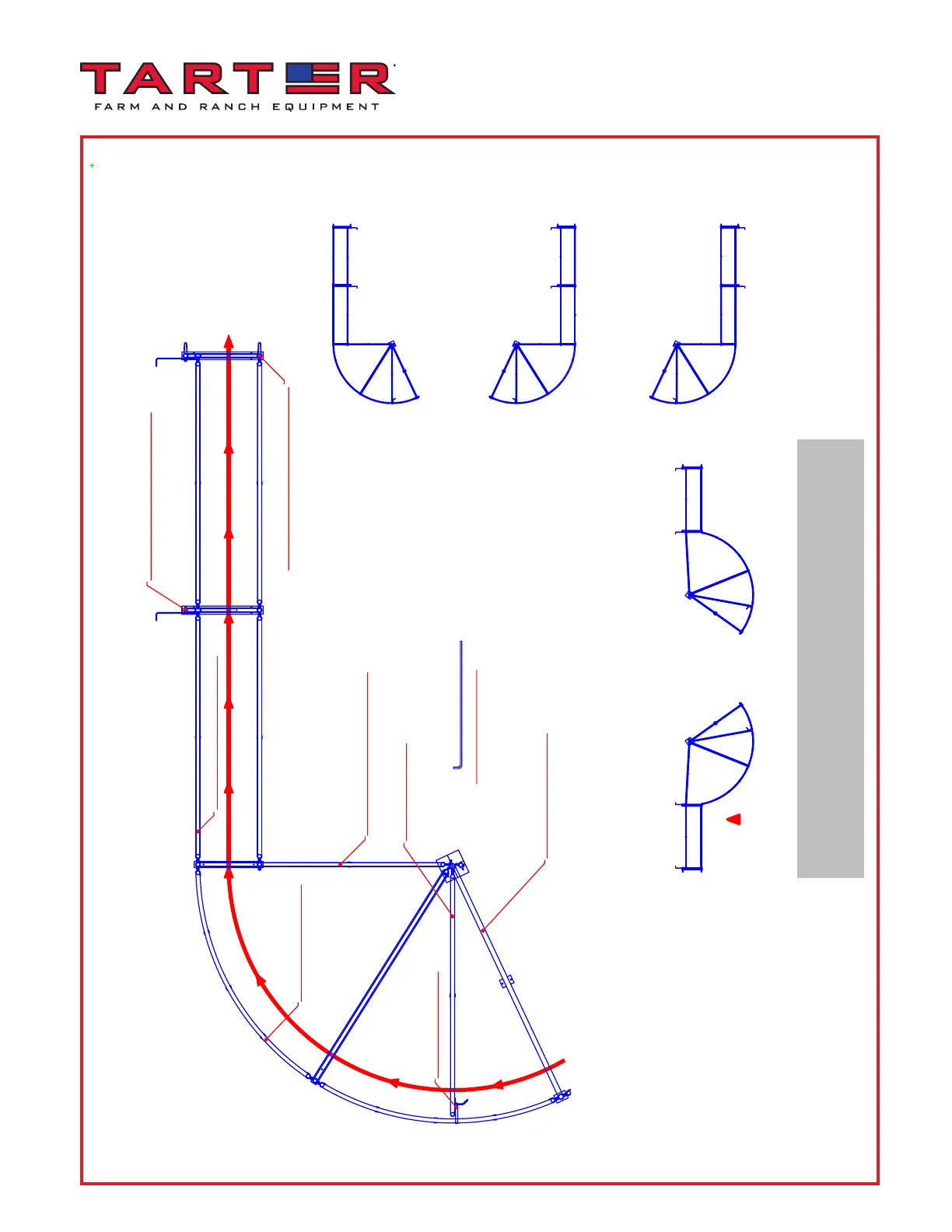

Sweep System Set Up Diagram
LEFT HAND - OUTSIDE CONTROLS
T
HIS KIT
WILL MAKE ANY OF THE SIX CONFIGURATIONS SHOWN BELOW.
AREA REQUIRED 15' x 31' 6" FOR THE 90 DEGREE UNITS
LEFT HAND - INSIDE CONTROLS
STRAIGHT LEAD-IN UNITS - RIGHT OR LEFT HAND - INSIDE CONTROLS - AREA REQUIRED IS 11' 3" X 31' 10"
120 OPEN SWEEP SYSTEM KIT - ITEM # OSS120
ESTIMATED SHIPPING WEIGHT 1680 LBS.
RIGHT HAND - INSIDE CONTROLS
ADJUSTABLE ALLEYWAY ARCH (ONE WAY) - ITEM # AAA1
ADJUSTABLE ALLEY ARCH (TWO WAY) - ITEM#AAA2
CENTER ARCH ASSEMBLY - ITEM # CAA
SWEEP GATE LATCH - ITEM # SGL
AT TACHMENT RODS (3) - ITEM # AR
STRAIGHT 10' ALLEY PANELS (4) - ITEM # SAP10
STRAIGHT 10' PANEL WITH ARCH - ITEM # SAPA10
SWEEP PEN GATE - ITEM # SPG
RIGHT HAND - OUTSIDE CONTROLS
CURVED SWEEP PANEL - ITEM # CSP
