Tarter RT104BL - Page 13

13

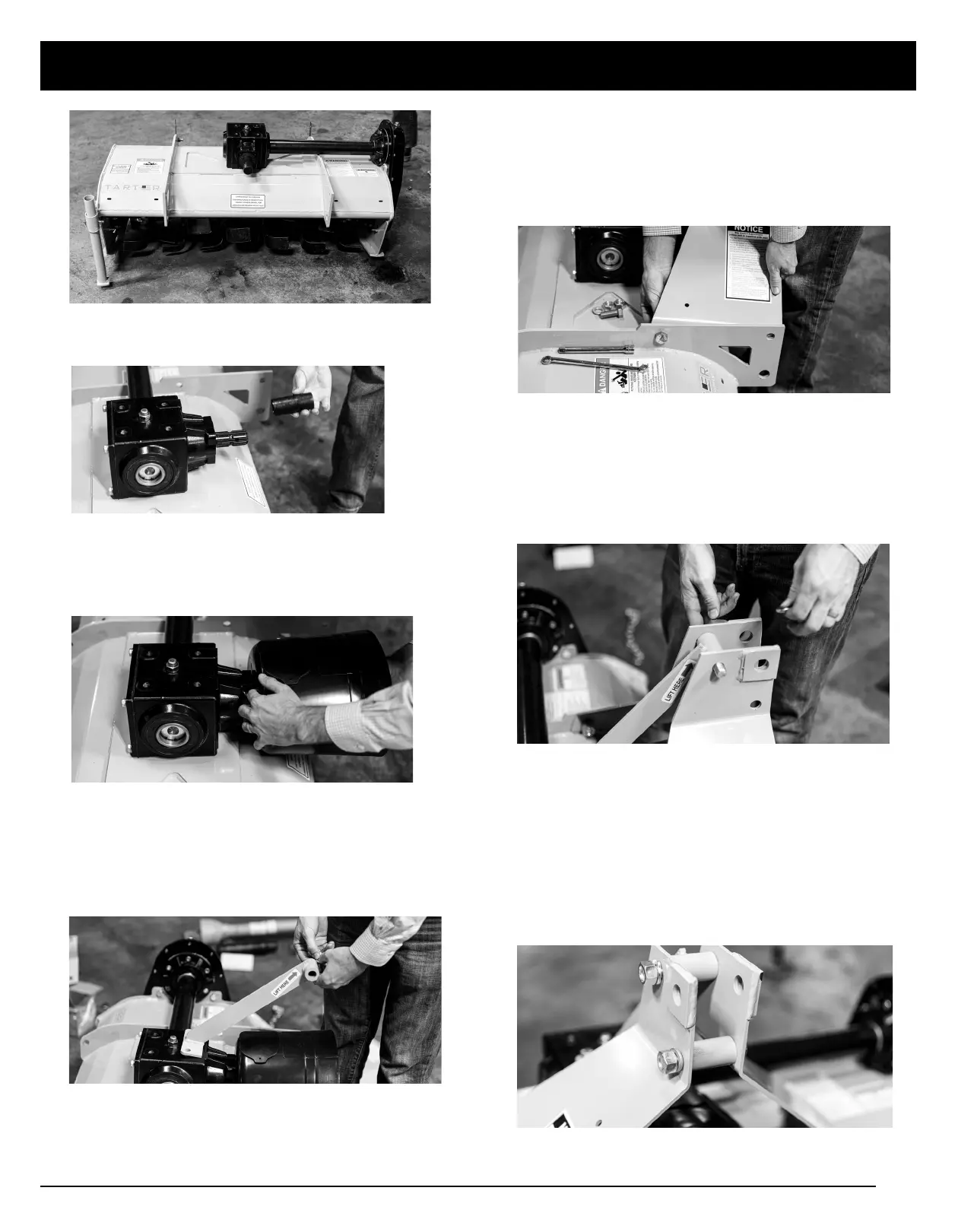

ASSEMBLY
12. Using the following:
• 5/8” x 1-3/4” hex bolt
• Split lock washers
Attach the A-Arm on the inside of the deck brace.
Repeat on the opposite side, hand tighten.
13. Using the following:
• 5/8” x 3-1/2” hex bolt
• Lock washer
• Nut
Attach the right and left A-Arms to the top link
support.
14. Using the following:
• 5/8” x 3-1/2” hex bolt
• Lock washer
• Nut
Place the quick attach spacer in the lower holes
of the A-Arm.
*Tighten all hardware, using 15/16” wrench and
socket, on the Lift Arms and Top Link.
9. Remove and discard plastic shield on the gearbox
shaft.
10. Using the following:
• 1/4”-20 bolts
• 1/4” flat washers
Attach the slip clutch shield to the gearbox.
11. Using the following:
• 1/2”- 13 × 3/4” hex bolts
• Split lock washers
Attach the top link support to the top of the
gearbox hand tighten.
