4. Using a 3/4” wrench, remove the bolt that holds
the A-Arms on. Discard nut and bolt.
5. Remove the hardware box and set aside.
6. Using a lift
strap, place it
around the top
gearbox. Raise
slightly to relieve
pressure from the
shipping rack.
7. With pressure relieved from the shipping rack,
using a 3/4” wrench and socket, remove hardware
on the shipping rack. Discard the hardware
8. Remove the tiller from the shipping rack and set
on level ground.
* Remove and discard brackets and hardware
ASSEMBLY
TOOLS REQUIRED
• TIN SNIPS
• SOCKETS AND WRENCHES:
9/16”, 3/4”, 15/16”, AND 1-1/4”. (Impact wrench is
preferred)

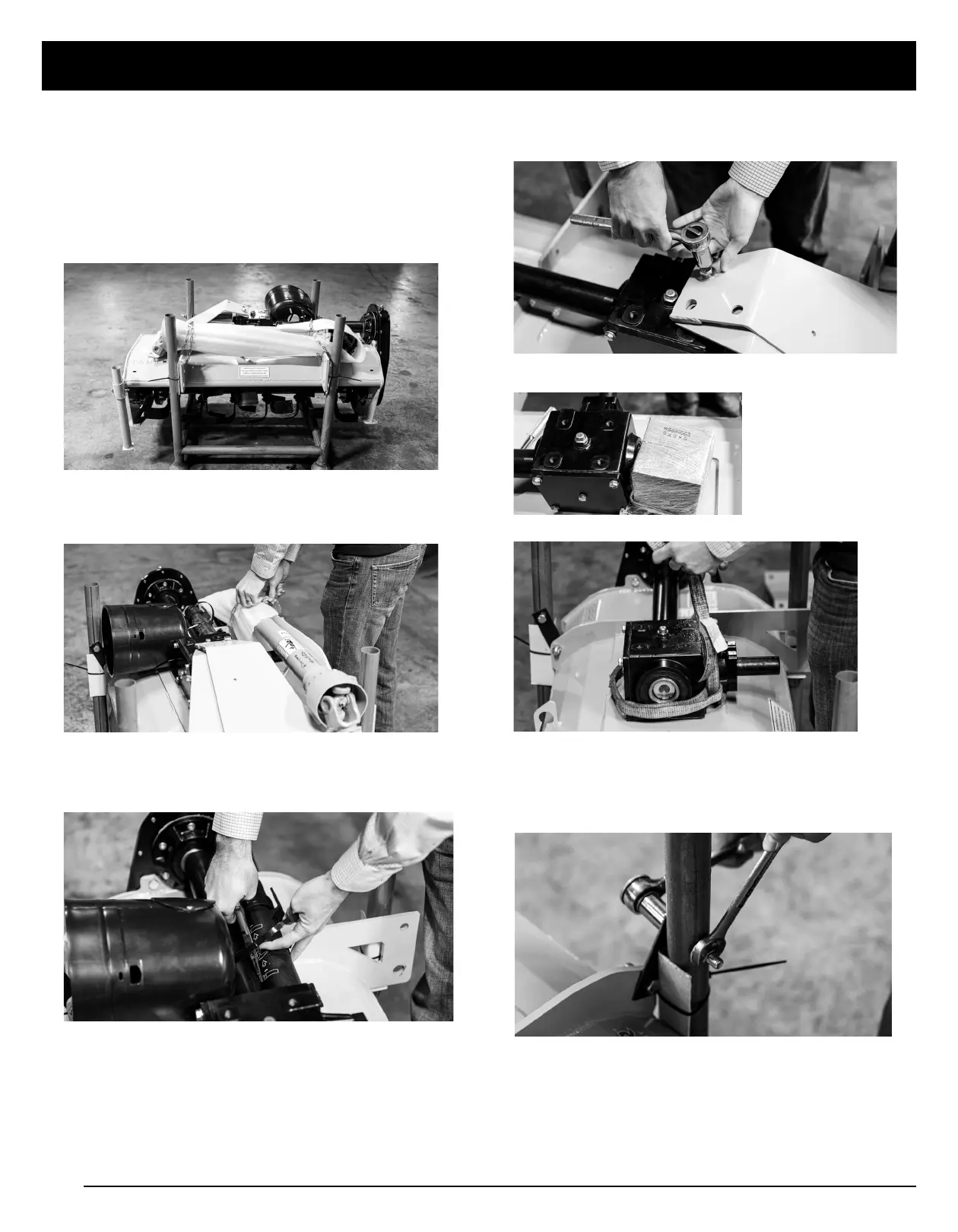

1. With rotary tiller still in the rack, set it on a level
spot for assembly.
2. Remove the PTO shaft, leaving the chains
attached to the PTO, and set aside.
3. Cut the zip ties to the PTO shield and manual
holder and set aside.
To Next Page
