20. Once hex shaft is successfully reinserted and all
6 bolts are started by hand, tighten all 6 bolts on
gearbox.
Carefully reattach the tine bar assembly to each hub.
21. Your tiller unit should now turn and will with
reverse direction.
12. On the side opposite where hex shaft was inserted,
find washer held in by snap ring.
13. Using snap ring pliers, carefully remove snap ring.
14. Remove washer from hex shaft hole as well.
15. Put washer and snap ring back into the hole where the
hex shaft was just removed.
16. Flip gearbox over and re-insert into frame.
17. Slide hex shaft into the now opened hex shaft hole on
opposite side of the gearbox.
18. Slide gearbox back to center of tiller.
19. Reinsert 6 bolts (2 top, 4 bottom).

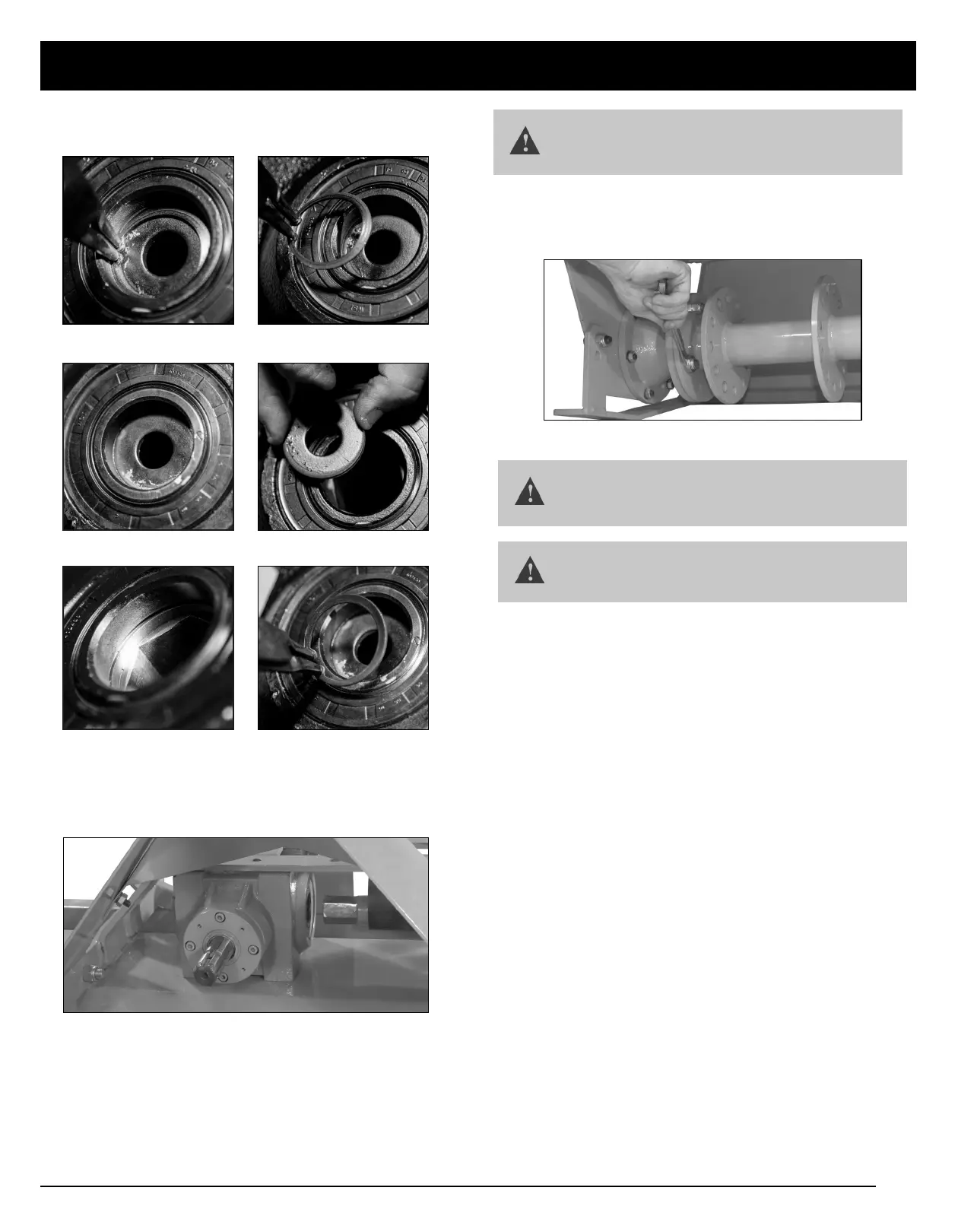

REVERSING TILLER TINE DIRECTION
NOTE: DO NOT tighten any of the six
gearbox bolts until all six have been
threaded and started.
CAUTION: Tine bar assembly is heavy and
contains sharp edges. Handle carefully!
NOTE: Instructions made with tines partially
removed for instructional clarity only.
