Tarter RT104BL - Page 27

27

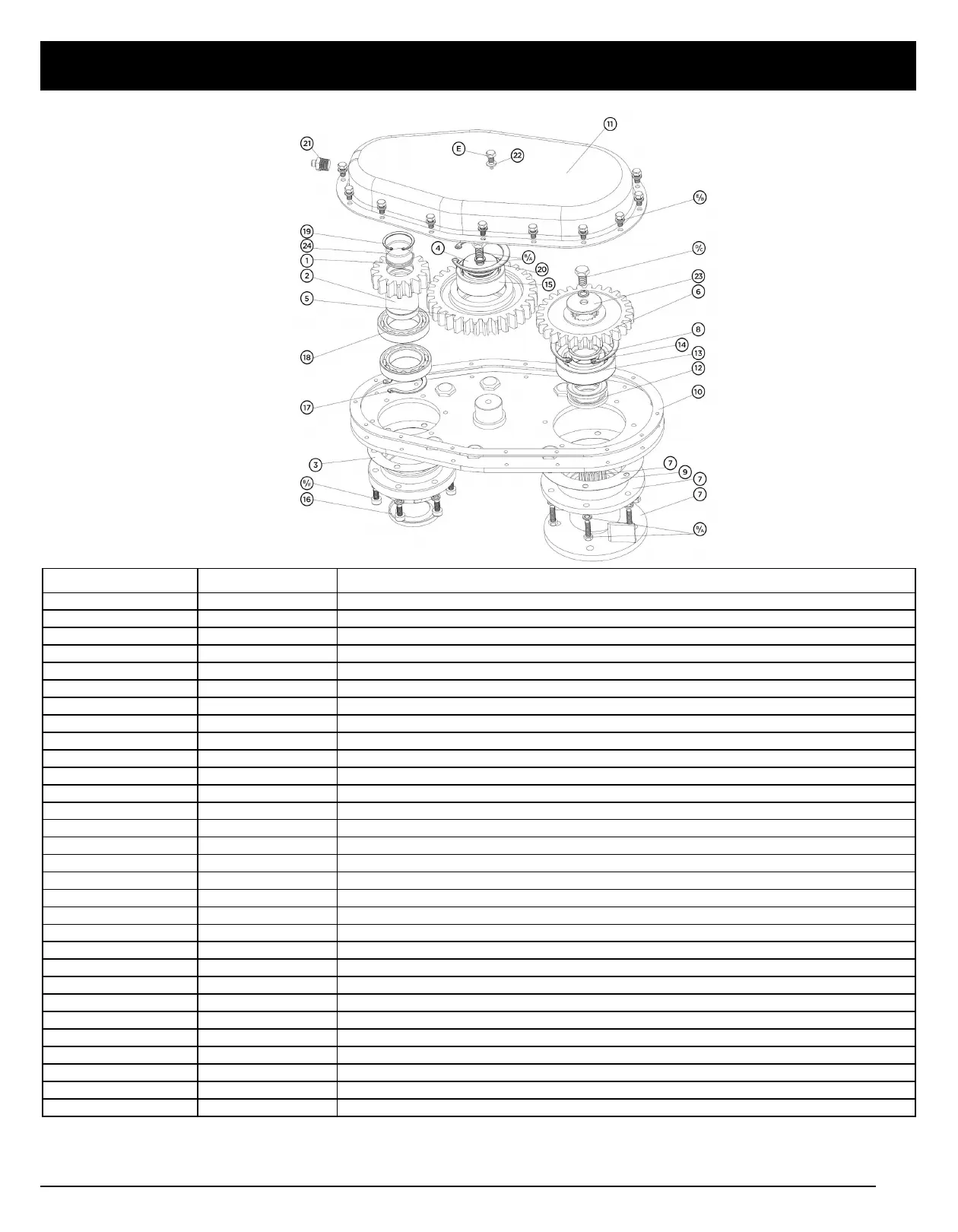

PARTS
Item Number Part Number Description
1 H-C0245 Tiller Agriculture Side Input Shaft Sealed Cap
2 H-C0221 Tiller Side Gearbox Gear Shaft-Input
3 2000016 Tiller Side Gearbox Input Gasket 0.5mm
4 H-C0253 *416M* Tiller Ring
5 2000179 Center Idle Gear (H-C8008-02)
6 H-C0224 Tiller Side Gearbox Gear-Output
7 2000180 Lower Output Shaft assembly
8 H-C0252 *417M* Tiller Side Gearbox Spacer 2
9 2000018 Tiller Side Gearbox Output Gasket 0.5mm
10 2000019 Main Seal Ring
11 2000181 Side Gearbox Cover (H-C0215)
12 S-211 RTS Output Shaft Seal
13 S-133 Bearing
14 S-410 Tiller Side Agriculture Output Shaft Retaining Ring
15 S-126 Tiller Ball Bearing
16 S-212 Tiller Seal
17 S-411 Tiller Side Agriculture Output Shaft Retaining Ring
18 S-124 Agriculture Tiller Output Shaft Bearing
19 S-412 Tiller Side Agriculture Output Shaft Retaining Ring
20 2000182 Retaining Ring 90mm (S-417)
21 S-502 Tiller Agriculture Side Output Shaft Plug Pressure Relief
22 S-509 Seal Ring
23 H-C0255 Washer
24 2000183 Spacer ring (S-513)
A Non-Service 3/8"-16 × 1" bolt
B Non-Service 3/8" Washer
C Non-Service 1/2"-13 × 1-1/4" Bolt
D Non-Service 1/2" lock washer
E Non-Service 3/8-16 × 5/8" bolt
F Non-Service 3/8"-16 × 1" socket cap screw
RT104BL
Side Gearbox
2000170
