˘ IF-FW/DM FireWire interface card
˘ IF-AD/DM 8-channel ADAT Optical I/O card
˘ IF-AE/DM AES-EBU interface card
˘ IF-AN/DM balanced analog I/O
˘ IF-SM/DM Surround Monitoring card
˘ IF-TD/DM TDIF digital I/O card
˘ MU-1000 Meter Bridge
04/01/05
Page 4 of 4
DM-3200
Applications Guide
7733 Telegraph Rd • Montebello, CA • 90640 • phone 323.726.0303 • www.tascam.com
© 2005 TASCAM, a division of TEAC America. All trademarks are the property of their respective holders. All rights reserved. Design and
specifi cations subject to change without notice. Product photographs are shown only to illustrate the types of products which are compat-
ible with the TASCAM DM-3200. These products are not manufactured by the TASCAM, Division of TEAC. #86509

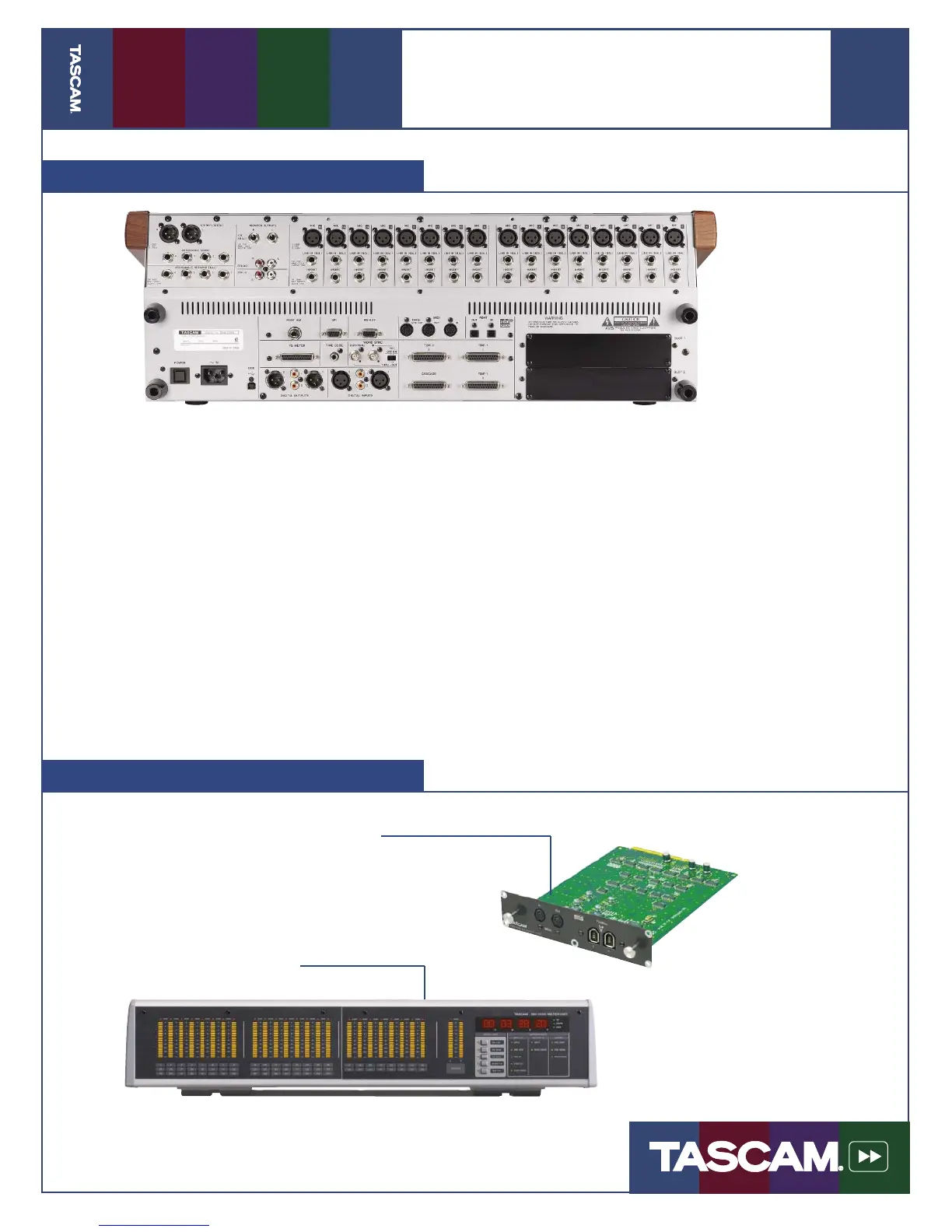

DM-3200 Connections
˘ (16) XLR analog mic/line inputs with phantom
power for condenser mics
˘ (16) W" TRS analog inserts
˘ (16) balanced W" TRS line inputs
˘ (3x) 8-channel TDIF digital ins and outs
˘ 8-channel ADAT optical digital in and out
˘ (2) expansion card slots support optional
FireWire, ADAT, AES/EBU, Analog & TDIF cards
(listed below)
˘ (2) stereo AES/EBU digital inputs and outputs
on XLR connectors
˘ (2) stereo S/PDIF digital inputs and outputs
on coaxial connectors
˘ Stereo XLR balanced line outputs
˘ Stereo W" TRS balanced Monitor outputs
˘ Stereo RCA Studio outputs
˘ Stereo RCA 2-Track input
˘ (4) W" TRS balanced Assignable Insert sends
˘ (4) W" TRS balanced Assignable Insert returns
˘ RCA Timecode input
˘ MIDI In, Out and Thru connectors
˘ BNC Word Sync Input and Out/Thru with termination
˘ GPI output for control of external devices
˘ RS-422 connector for machine control
˘ USB 1.1 connector
˘ W" Footswitch jack
˘ Dedicated cascade port supports cascade of two
DM-3200 mixers
˘ Connector for (optional) MU-1000 meter bridge
