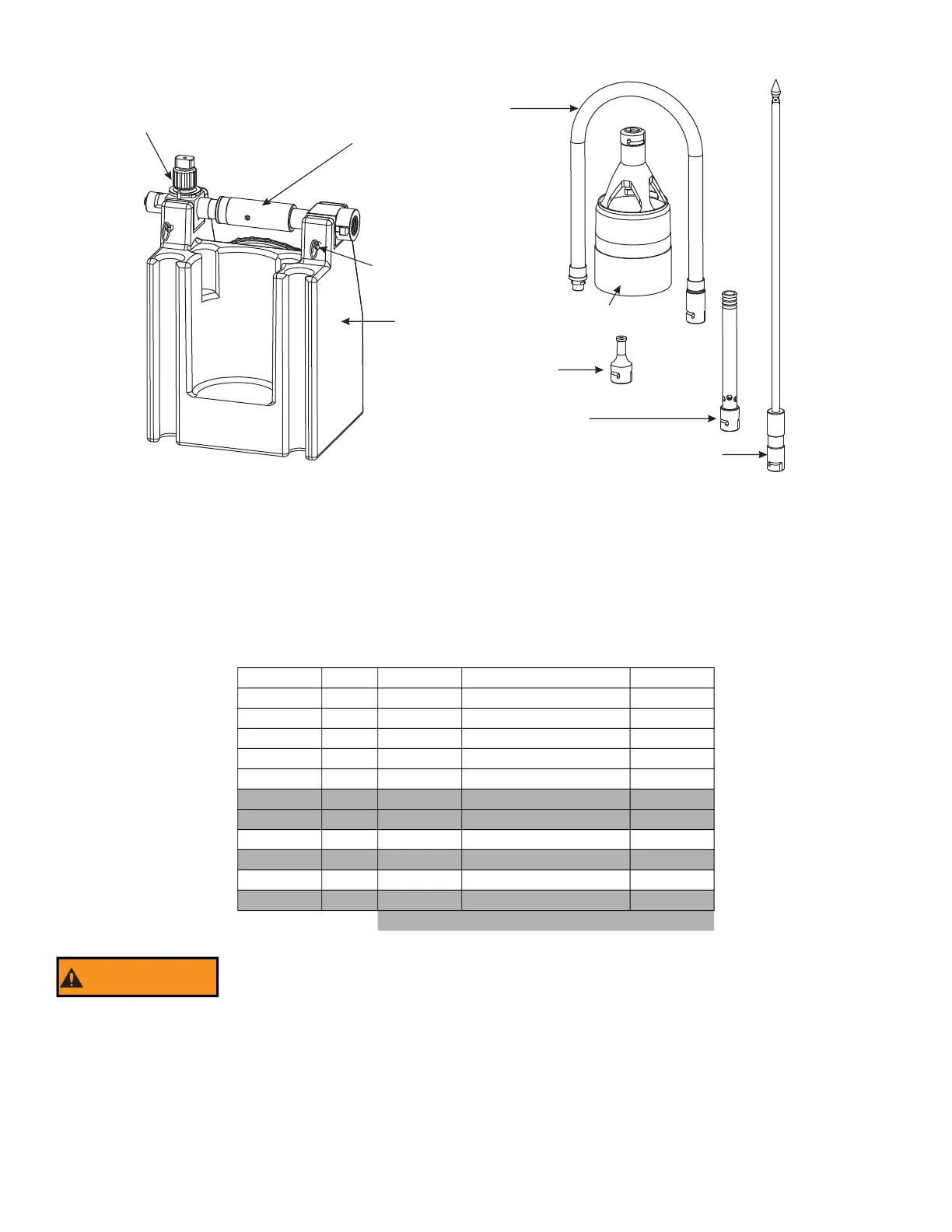

3.2 PART IDENTIFICATION
Figure 3.2
3.3 LEFT OR RIGHT HAND OPERATION
The Control Block and Valve Assembly can be mounted on the Tank for right or left hand operation. To switch hands, remove the
Shoulder Strap from the Pull Pins. Remove the Circle Cotters from the Pull Pins and remove the Pull Pins themselves. Pull the Control
Assembly straight up and out of the tank. Turn the Control Unit around and reinstall the Pull Pins, the Circle Cotters, and the Shoulder
Strap.
3.4 DILUTION EQUIVALENTS
Agents used in the PRO/pak are to be diluted according to the manufacturer’s specifications. The following chart describes percentages
and dilution ratios.
Table 3.4
Percentage ml/l Oz/gal or Ratio
0.23% 2.3 0.3 2 US teaspoons 1:427
0.39% 3.9 0.5 1 US tablespoon 1:256
0.50% 5.0 0.64 1-1/4 US tablespoons 1:200
0.78% 7.8 1 2 US tablespoons 1:128
1.0% 10 1.3 2-1/2 US tablespoons 1:100
1.6% 16 2 1/4 US cup 1:64
2.3% 23 3 1/3 US cup 1:43
3.1% 31 4 1/2 US cup 1:32
4.7% 43 6 3/4 US cup 1:21
6.3% 67 8 1 US cup 1:16
7.8% 78 10 1-1/4 US cup 1:13
KEY- Metering setting not compatible with PRO/pak
Agent concentrates can be ineffective if not used at the correct concentration ratio. Ineffective
agents can increase the potential for injury or death. Ensure that the Percentage Knob is set to the
correct concentration ratio for the type of agent being used prior to flowing.
OUTLET HOSE
U-HS 2.7' HOSE
(82 cm)
(supplied)
or
U-HS6 6' HOSE / (1.8 m)
U-HS12 12' HOSE / (3.6 m)
U-HS25 25' HOSE / (7.5 m)
(optional)
LOW EXPANSION
NOZZLE
PIERCING NOZZLE (optional)
MEDIUM EXPANSION
NOZZLE
TWIST GRIP
FLOW CONTROL
PULL PIN
TANK
STRAIGHT STREAM
NOZZLE
PERCENTAGE KNOB
(TURN)
U-MX12
U-SS12
U-LX12
U-PN12
