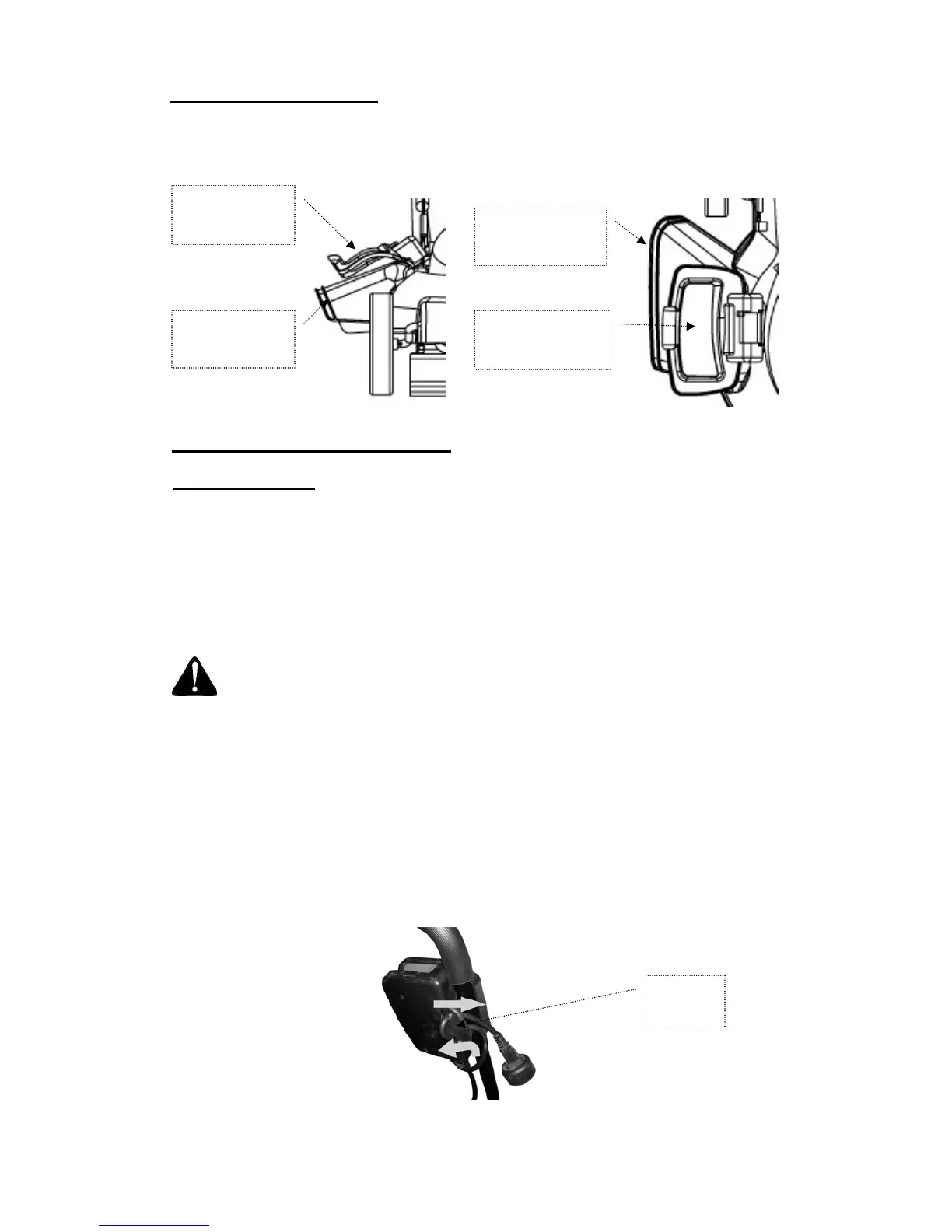

The side discharge deflector is a device to be mounted on the machine when the grass is too high to
mulch or when side discharging is preferred. The grass clippings produced when using the side
discharge deflector will be noticeably larger than those produced when mulching.
Side discharge
cover
Side discharge
chute
Side discharge
chute
Side discharge
cover
OPERATING YOUR LAWN MOWER
Cord Connection
Extension Cord Selection
Shown below is the length of extension cords and its corresponding acceptable cord ratings.
• 50' Cord use 16 AWG
• 100' Cord use 14 AWG
• 150' Cord use 12 AWG
The extension cord should be CSA approved for outdoor use.
IMPORTANT: Using extensions cords of the wrong gauge will diminish the
performance and possibly the life of the electric motor, and may also cause breakers to
trip or fuses to blow in your home's fuse box.
Cord Restraint
Attach the extension cord (not provided with unit) to the cord restraint as follows:
1. Form a small loop in the extension cord. Allow enough excess cord to make the connection to the
motor/blade control (approximately 20”).
2. Slip the loop through the slot on the bottom of the cord restraint, and up over the tab, to prevent
disconnection from the motor/blade control during operation (see Fig. 4).
3. Keep the cord restraint as close to the motor/blade control as possible.
Fig. 4
Cord
restraint
Side Discharge Deflector
