ASSEMBLY INSTRUCTIONS
7
Fig. 6 Fig. 7
Fig. 8
Fig. 9

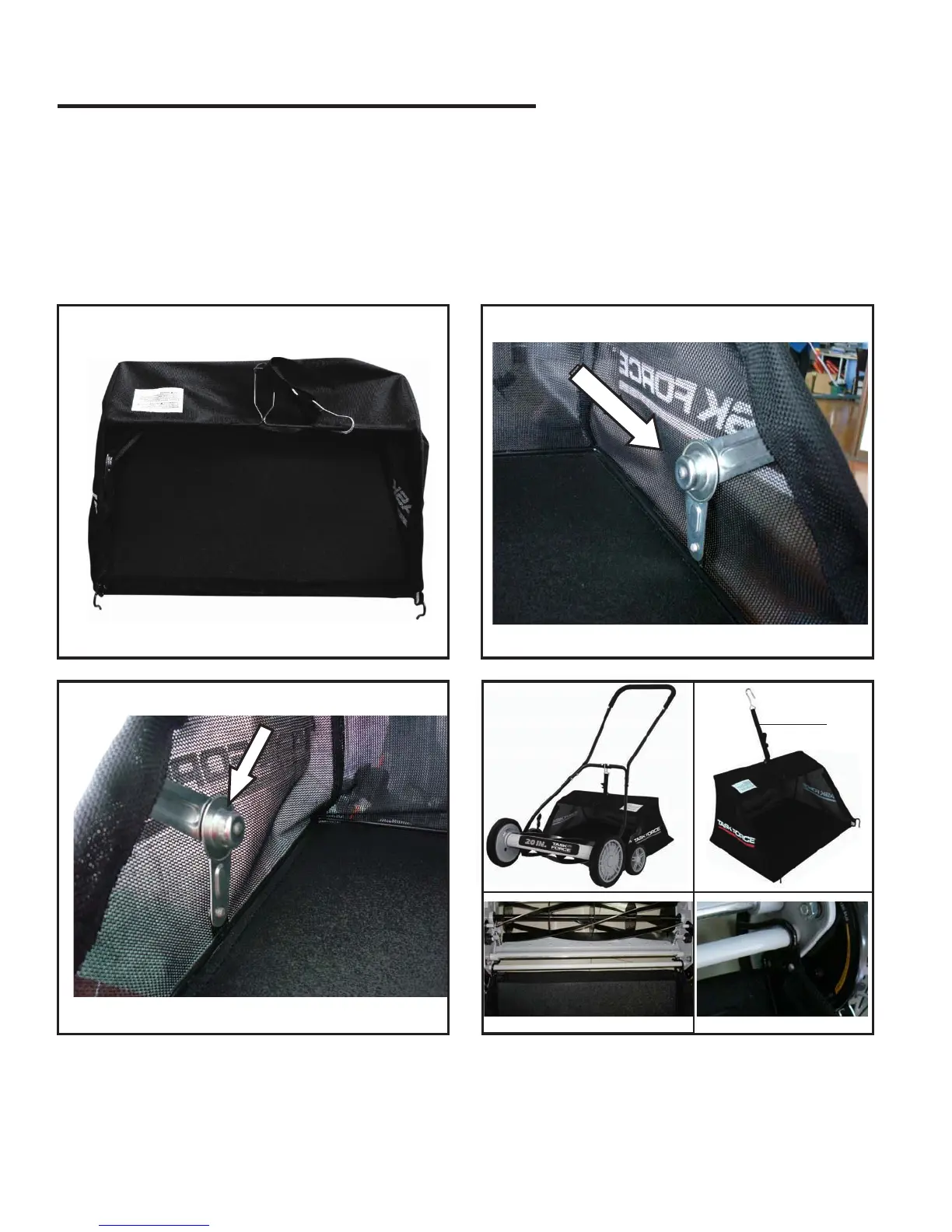

Attaching the grass collection bag: (Fig.6,7,8,9)
1. Remove bag and all components from the packaging (Fig.6)
2. Open the hinged grass bag brackets on both the left and right side of the bag and push the center mount washer
forward to lock open the brackets. (Fig. 7,8)
3. Place the left and right hooks of the grass bag on to the rear wheel axle and ensure that it presses firmly into place.
4. Place center bar locking strap (1) from the bag to the center bar of the middle push handle of the reel mower.
Adjust strap tension for proper height so the bag does not rub against the ground while in use or transporting. (Fig. 9)
