4
ASSEMBLY INSTRUCTIONS
1. Top handle
2. Center ha
ndle pieces
3. Left lower
handle
4. Right
lower handle
5. Foam
grip
6.
7. Flat
washer
8.
Locknuts
Tools Required

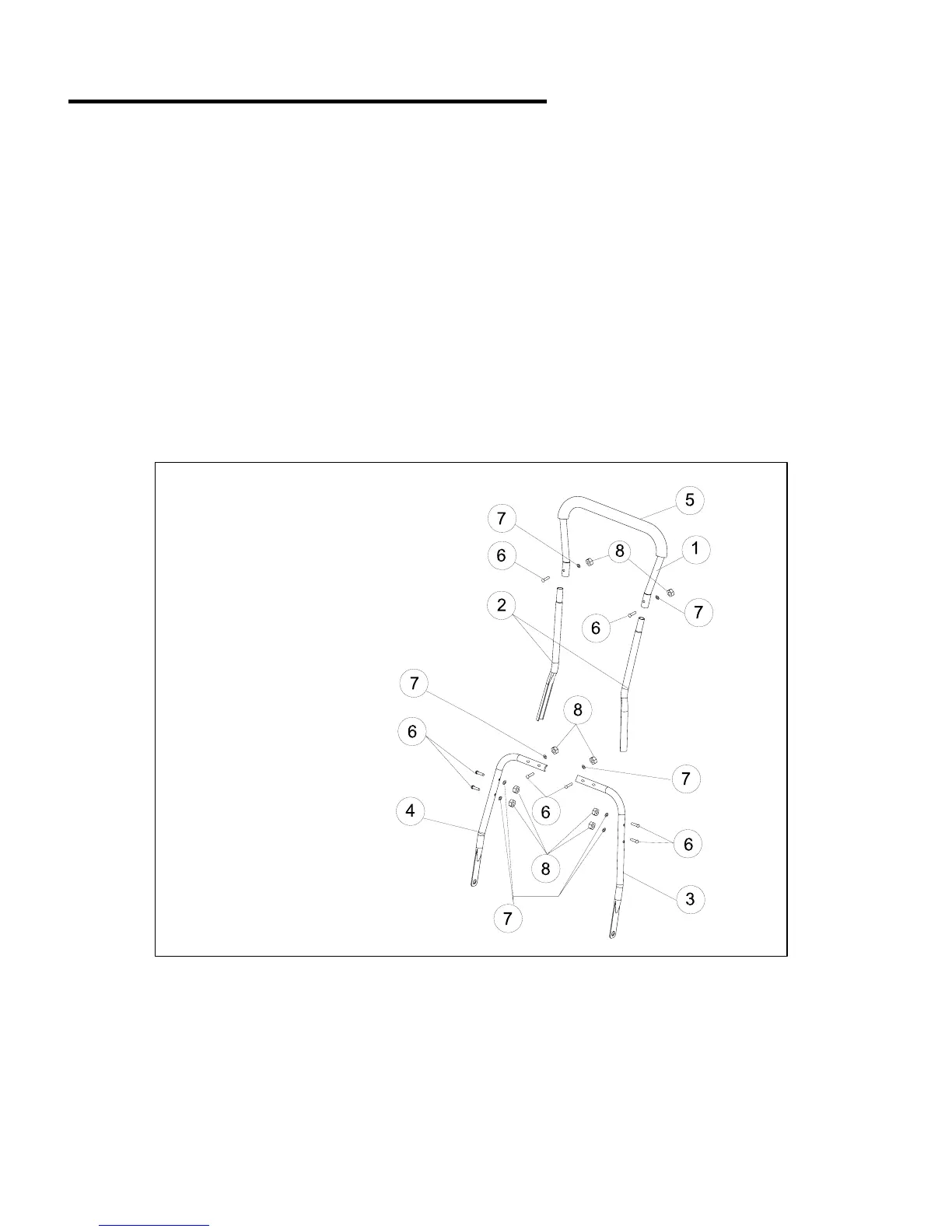

Fig. 1
Before attempting to assemble, empty carton and compare parts with parts list below.
PACKING LIST
1-Top handle,
2-Center handle pieces,
2-Lower handle pieces,
8-Locknuts,
8-Carriage Bolts,
8-Washers,
1-Reel mower body
Note:
• Carefully remove the parts from the box.
• Inspect the parts to make sure no breakage or damage occurred during shipping.
• Do not discard the packing material until all parts are examined.
• If any parts are damaged or missing, please call 1-866-456-8934 for assistance.
•
Carriage Bolts,
10mm Wrench (Not included)
Be sure to tight the lock nuts when assembled to prevent the handle from rocking.
To Next Page
