L7C SERIES LCD Monitor Service Manual (v1.0)
7
3)
Base and
Back
Cover Removal:

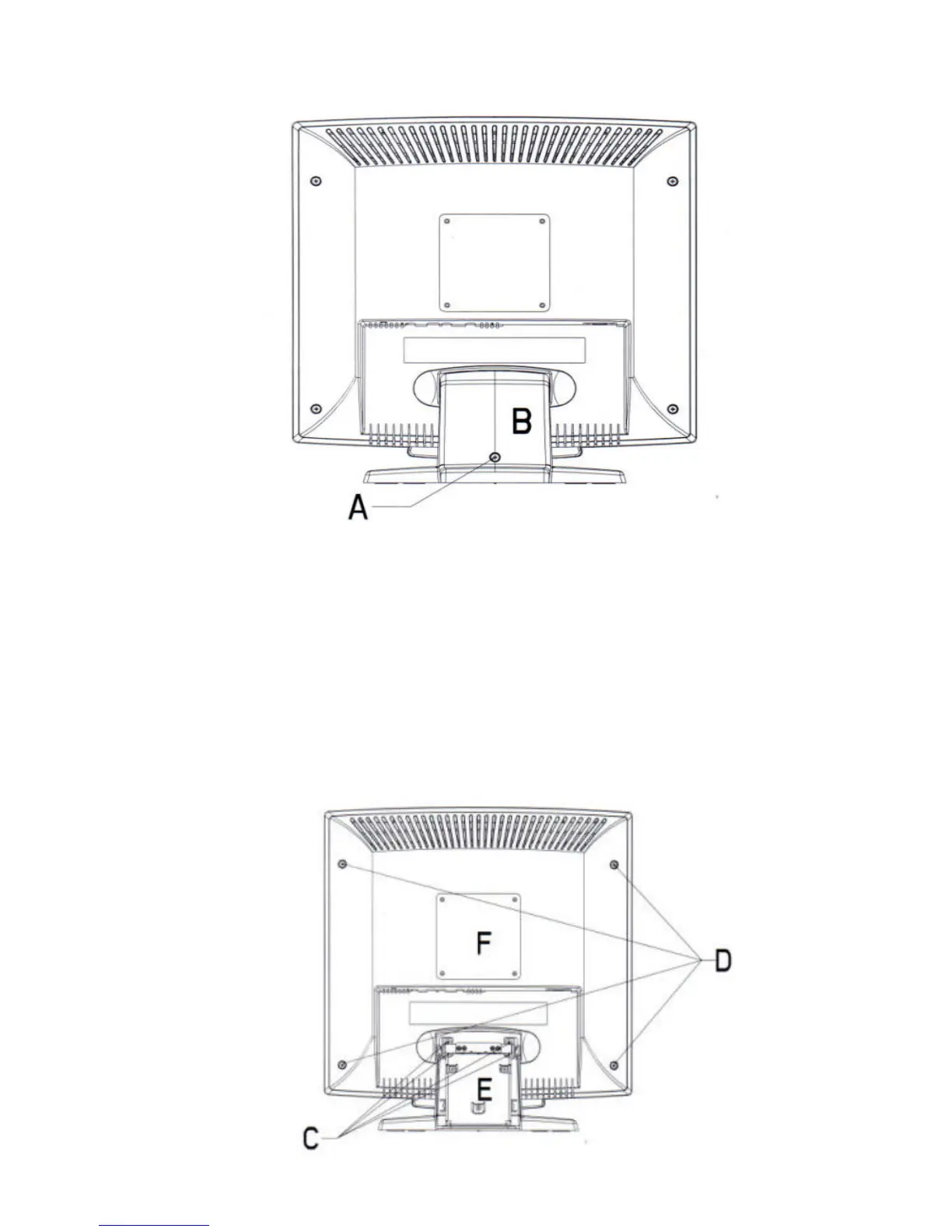

As below, after removing the hinge cover
,
there will be 4 screws
(indicated by
“
C
”
)
, and
remove them. Then you can remove the whole base of the monitor.
Remove 4 screws indicated as
“
D
”
of the back cover. Then remove the back cover with
care .
