9 COOLING SYSTEM
Cooling system pressure: 1.8 bar.
Colling system volume: 7.5lt (approx.)
10 FUEL SYSTEM
10.1 FUEL TANK
Fuel tank capacity: 60lt
It is recommended to protect the outer surfaces of the fuel bladder from scratching over carbon fibers,
cutomers are invited to protect the carbon surfaces that are in contact with the bladder with PVC tape (i.e.
Permacel) or Neoprene foam Sheet.
10.2 FUEL DRAIN PROCEDURE
Refer to chapter 3.5.2
• Button [6]: MARK, when pushed the ECU will register the input in the log file. Double click will acti-
vate fuel pump (for fuel drain purpose).
10.3 FUEL COUPLING

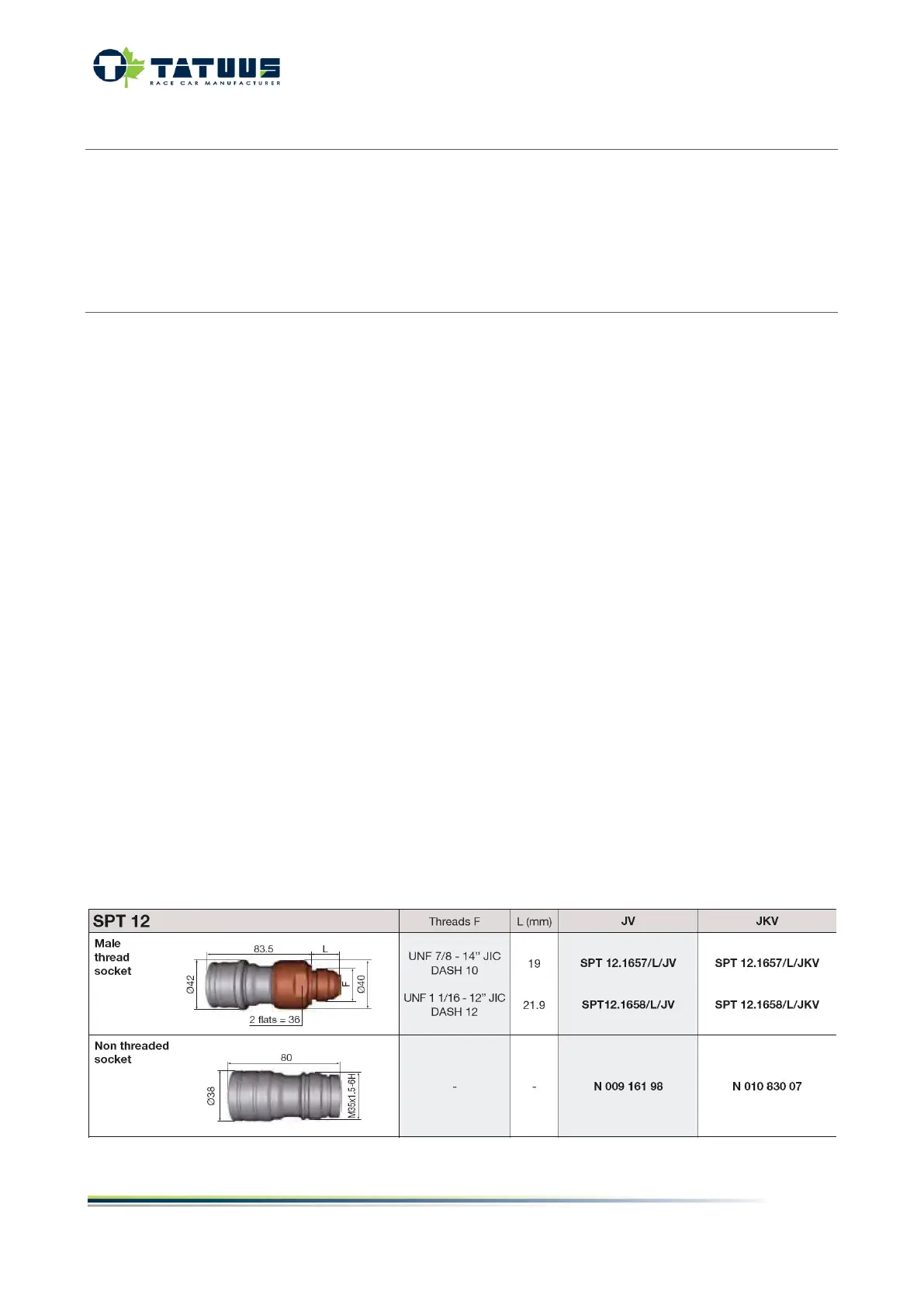

The feeding line to the engine is equipped with a safety dry-break:
Staubli SPT08.3655/L/JV
SPT08.7655/L/JV
The fuel tank port is equipped with a dry break
• Filling Port: Staubli N00916298 (on board)
• Mating Port:
o Staubli N009 161 98 (fuel bottle)
o Staubli SPT12.1658/L/JV (fuel machine)
