Taurus 3D Smith Machine - Assembly of the Chip Up Bar

4 washer Φ10 10
5 lock nut M10 4
13 out hexagon bolt M10*75 4
19 hexagon socket screw M8 2
26 chip up bar 1
27 out hexagon bolt M10*65 2
28 buttery clip 2
29 L shape connect plate t4.0*100*102.7 2
20
3D Smith Machine

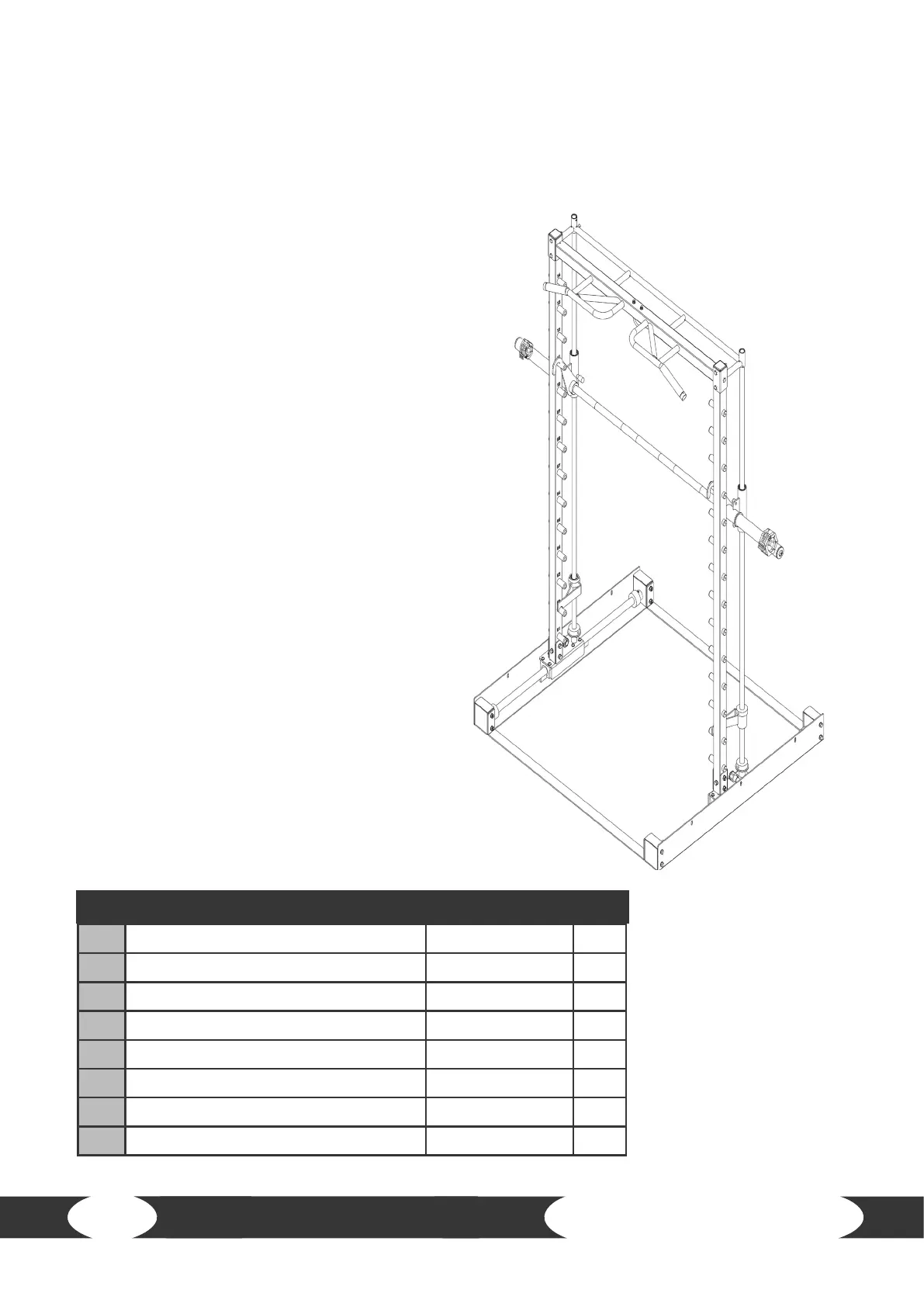

Step 3: Assembly of the Chip Up Bar
1. Attach both buttery clips (28) to the ends of the barbell plate holders (22).
2. Assemble the chip up bar (26) to both guide rods (16) by using two screws (19).
3. Assemble one connect plate (29) to one stand tube (12) by using two bolts (13), four washers
(4) and two lock nuts (5).
4. Repeat the previous step on the other stand
tube (12).
5. Fasten both connect plates (29) by using
one bolt (27) ad one washer (4) on each side.
No. Name Specication Qty.
