Taylor RD30 - Section 4: Operator Parts Identification; Model RD30

Section 4
4-1
Models RD30/RC25
Operator Parts Identification
4
Operator Parts Identification
Model RD30

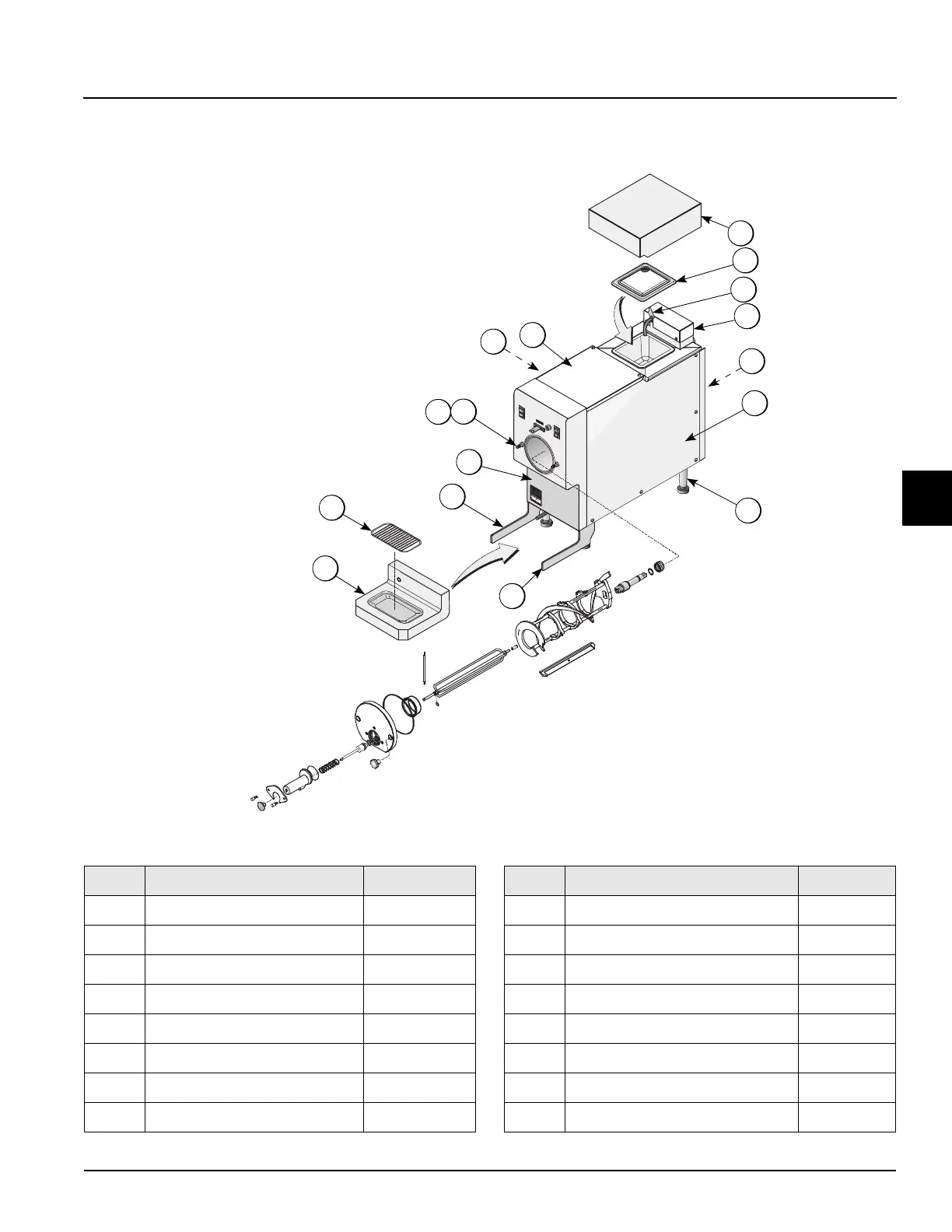

Figure 4-1
13
14
11
10
7
15
8
1
2
3
4
5
6
9
16
12
Item Description Part No.
1 Cover-Rear 049201
2 Cover-Hopper 049081
3 Retainer-Clip 049419
4 Panel A.-Rear X48983
5 Panel-Side-Right 048977
6 Leg A.- 4”- 3/8- 16 Stud w/Cap X43408
7 Panel-Side-Left 048975
8 Stud-Freezer 034035
Item Description Part No.
9 Washer-Freezer Stud 049032
10 Panel A.-Front X49760
11 Support-Tray-Left 049056
12 Support-Tray-Right 049057
13 Tray A.- Drip X49182
14 Shield-Splash 049203
15 Cover-Front-Upper 049162
16 Cover A.-Solenoid X49396
