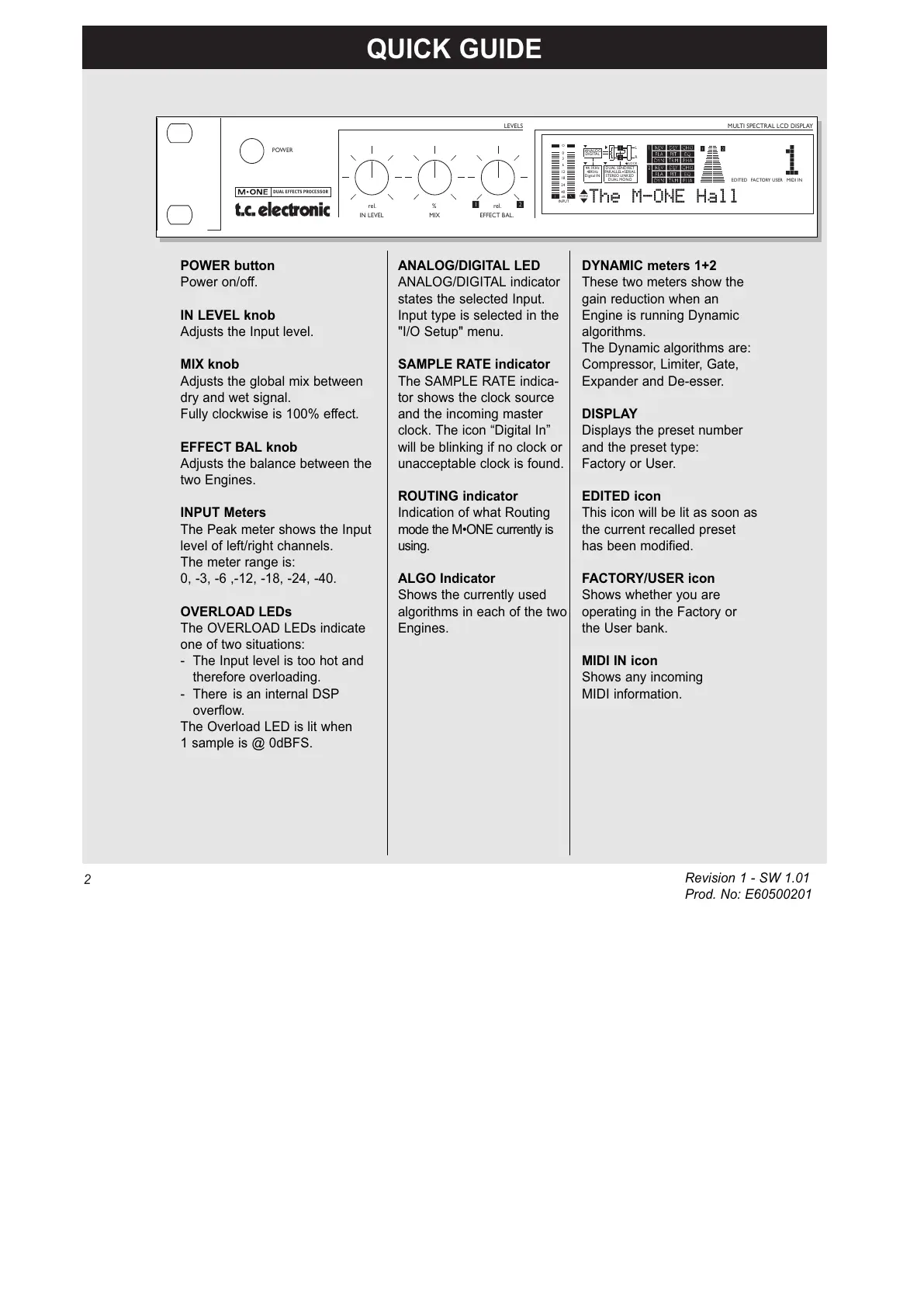

POWER button
Power on/off.
IN LEVEL knob
Adjusts the Input level.
MIX knob
Adjusts the global mix between
dry and wet signal.
Fully clockwise is 100% effect.
EFFECT BAL knob
Adjusts the balance between the
two Engines.
INPUT Meters
The Peak meter shows the Input
level of left/right channels.
The meter range is:
0, -3, -6 ,-12, -18, -24, -40.
OVERLOAD LEDs
The OVERLOAD LEDs indicate
one of two situations:
- The Input level is too hot and
therefore overloading.
- There is an internal DSP
overflow.
The Overload LED is lit when
1 sample is @ 0dBFS.
ANALOG/DIGITAL LED
ANALOG/DIGITAL indicator
states the selected Input.
Input type is selected in the
"I/O Setup" menu.
SAMPLE RATE indicator
The SAMPLE RATE indica-
tor shows the clock source
and the incoming master
clock. The icon Digital In
will be blinking if no clock or
unacceptable clock is found.
ROUTING indicator
Indication of what Routing
mode the MONE currently is
using.
ALGO Indicator
Shows the currently used
algorithms in each of the two
Engines.
DYNAMIC meters 1+2
These two meters show the
gain reduction when an
Engine is running Dynamic
algorithms.
The Dynamic algorithms are:
Compressor, Limiter, Gate,
Expander and De-esser.
DISPLAY
Displays the preset number
and the preset type:
Factory or User.
EDITED icon
This icon will be lit as soon as
the current recalled preset
has been modified.
FACTORY/USER icon
Shows whether you are
operating in the Factory or
the User bank.
MIDI IN icon
Shows any incoming
MIDI information.
Revision 1 - SW 1.01
Prod. No: E60500201
