TC Electronic VORTEX FLANGER User Manual

8

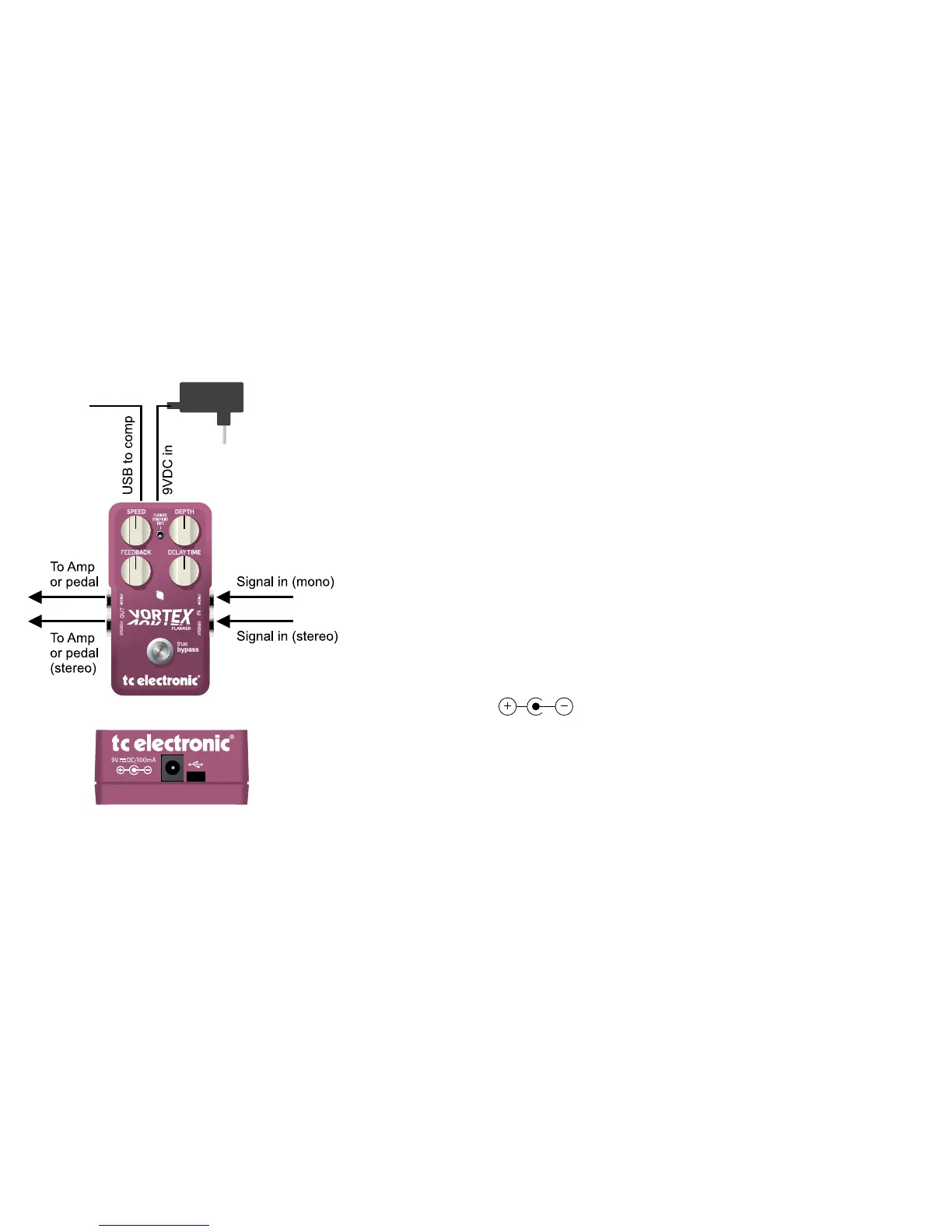

Connecting
Input jacks - Use MONO for mono input and both MONO
andSTEREOifconnectingastereosource.
If you run on battery we recommend removing the mono
input jack to preserve battery power when you don’t play.
Output jacks - connect to another pedal or directly into
an amp or mixer. Use MONO for mono setups and both
MONOandSTEREOforstereosetups.
Notice that it is possible to select between true bypass and
buffered bypass mode via a dip switch located under the
battery cover.
Power in-usea9VDCpowersupplywiththefollowing
symbol:
USB
Connect to a computer using the supplied USB cable for
uploadofTonePrintsettings.
Theconnector-typeisMini-B.

TC Electronic VORTEX FLANGER Specifications

General

Material	Metal
Best uses	Guitar
Product type	-
Product color	Purple
Status LED indicator	Yes
Battery voltage	9 V
Power source type	Battery, DC

Weight and Dimensions

Depth	122 mm
Width	72 mm
Height	50 mm
Weight	300 g
