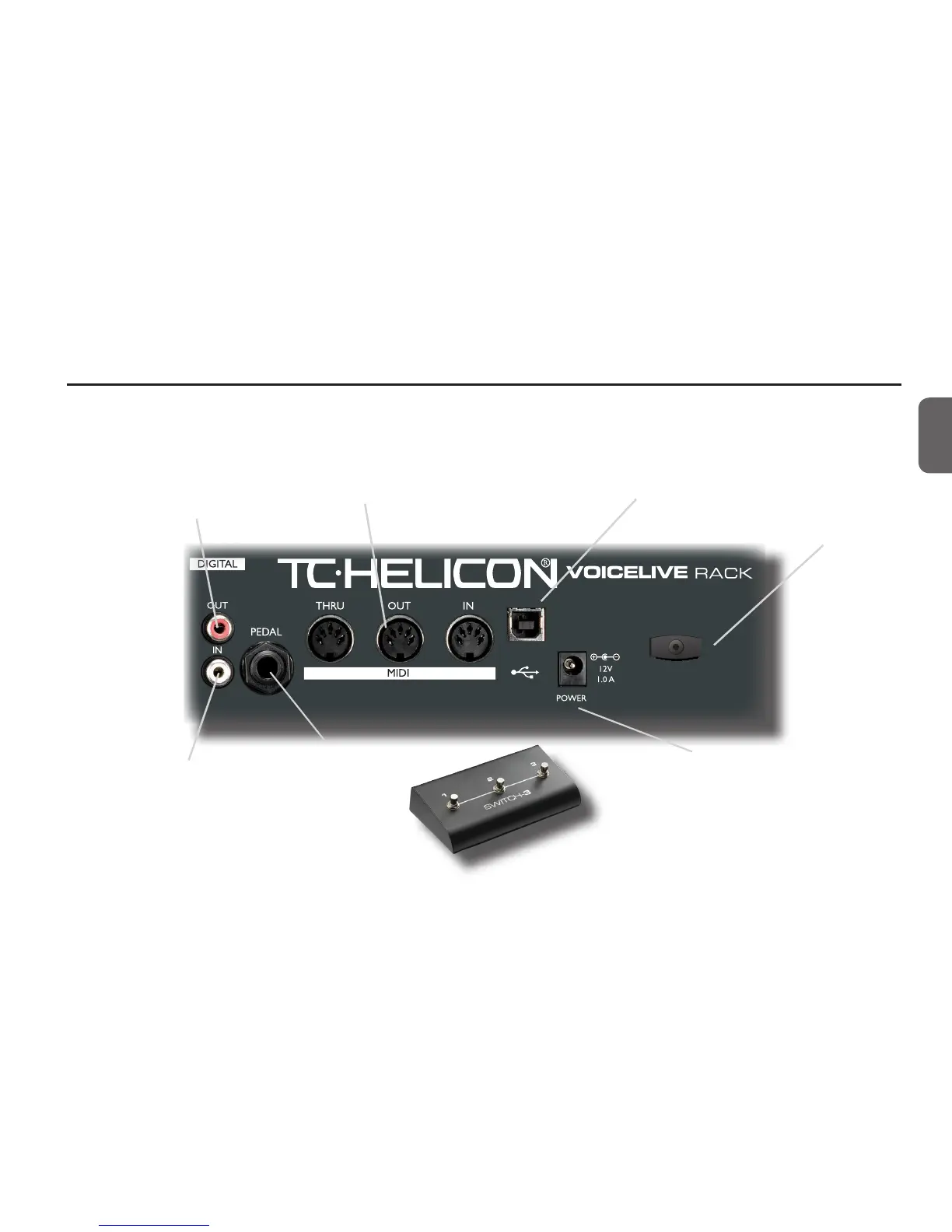

Back Panel
S/PDIF output always
available. Full Mix or
Vocal & Guitar (LR)
congured in Setup
menu.
S/PDIF digital input can
be fed dry to analog mix
outs or used as vocal and
instrument (LR) inputs for
effect processing.
Connect optional TC-Helicon
Switch 3 footswitch here for
additional control per preset
or globally.
Connect supplied AC
adaptor here.
AC cable strain
relief minimizes
shutdowns due to
cable pulling.
Hardware MIDI ports allow remote
harmony and preset control from
MIDI keyboards etc. Ensure USB
Control is set to Off in Setup menu
to use this input.
USB I/O connects to a
computer for audio I/O and
system functions such as
preset backup and version
updates.
