TCF TSL - Page 6

6
Twin City Engineering Supplement ES-895

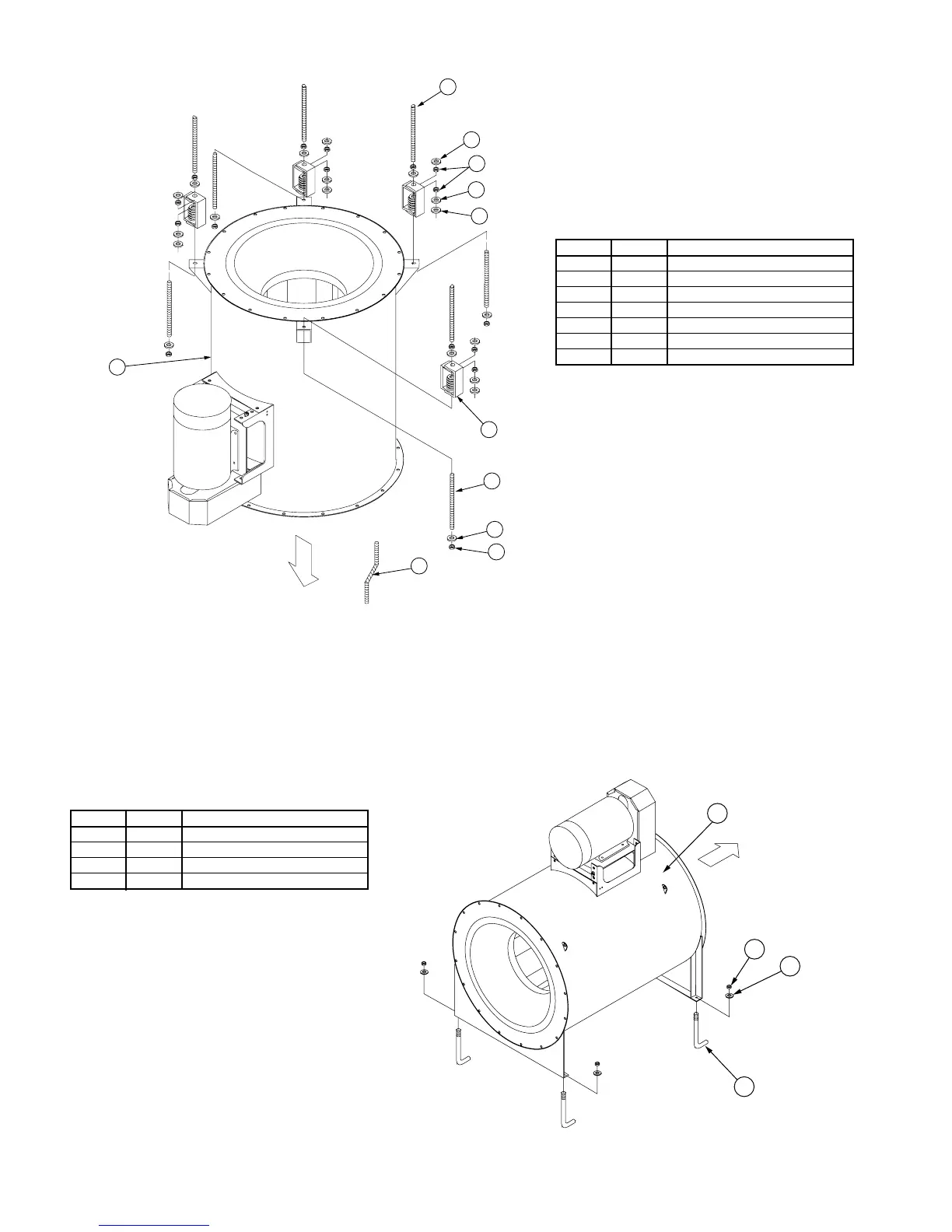

Figure 8. Typical Horizontal Mounting to Rigid Foundation
ITEM QTY. DESCRIPTION
01 1 TSL or QSL Fan
02 4 Anchor Bolt*
03 8 Hex Nut*
04 8 Washer*
NOTE:
*1. Anchor bolts and hardware supplied by customer.
FLOOR RIGID
MOUNTING
AIRFLOW
2
4
3
1
Figure 7. Typical Vertical Mounting with Vibration Hangers
ITEM QTY. DESCRIPTION
01 1 TSL or QSL Fan
02 4 Spring Hanger*
03 4 Neoprene Washer
04 32 Steel Washer**
05 32 Hex Nut**
06 4 Threaded Rod
07 4 Hanger Rod**
NOTES:
*1. Spring hangers are optional accessories.
2. When spring hanger interferes with ductwork, add
offset to threaded rod to provide clearance.
**3. Hanger rods, nuts, and washers supplied by cus-
tomer.
7
4
5
4
2
3
6
5
1
4
6
SEE
NOTE 2
AIRFLOW
