TCF TSL - Page 7

Twin City Engineering Supplement ES-895
7
ITEM QTY. DESCRIPTION
01 1 Inlet Adaptor Plate and Inlet Funnel
02 1 Wheel
03 1 Bearing Housing With End Cover Plate Belt Tube & Straightening Vanes
04 1 Discharge Cone & Belt Tube Seal (Removable)
05 1 Housing
06 1 Motor Mount (Saddle Type)
NOTES:
1. Shaft excluded from illustration.
2. Belts and driven sheave are accessible by remov-
ing discharge cone and belt tube seal.
2
1
3
4
5
6

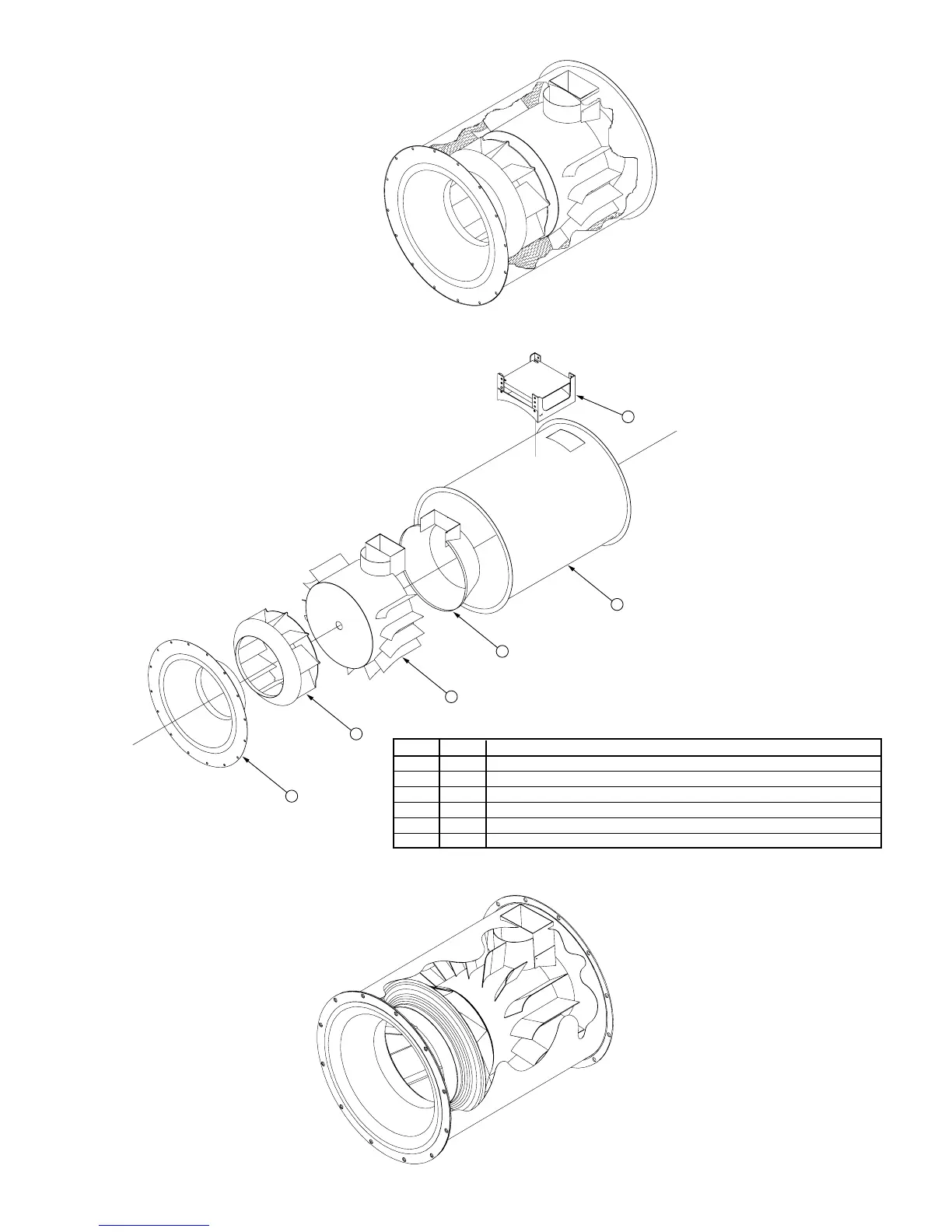

Figure 10. Exploded View of TSL Assembly
Figure 11. Cutaway View of QSL Assembly
Figure 9. Cutaway View of TSL Assembly
