TCF TSL - Page 8

Figure 13. Typical Vertical Curb Mounting
ITEM QTY. DESCRIPTION
01 1 TSL or QSL Fan
02 See Note Lag Bolt
03 1 Discharge Cap (Optional)
04 1 Curb Cap (Optional)
NOTE:
1. Quantity and size of mounting lag bolts varies by fan
size.
3
1
4
2
1
2
3
4
5
6
NOTES:
1. Shaft excluded from illustration.
2. Belts and driven sheave are accessible by removing discharge cone and belt tube seal.

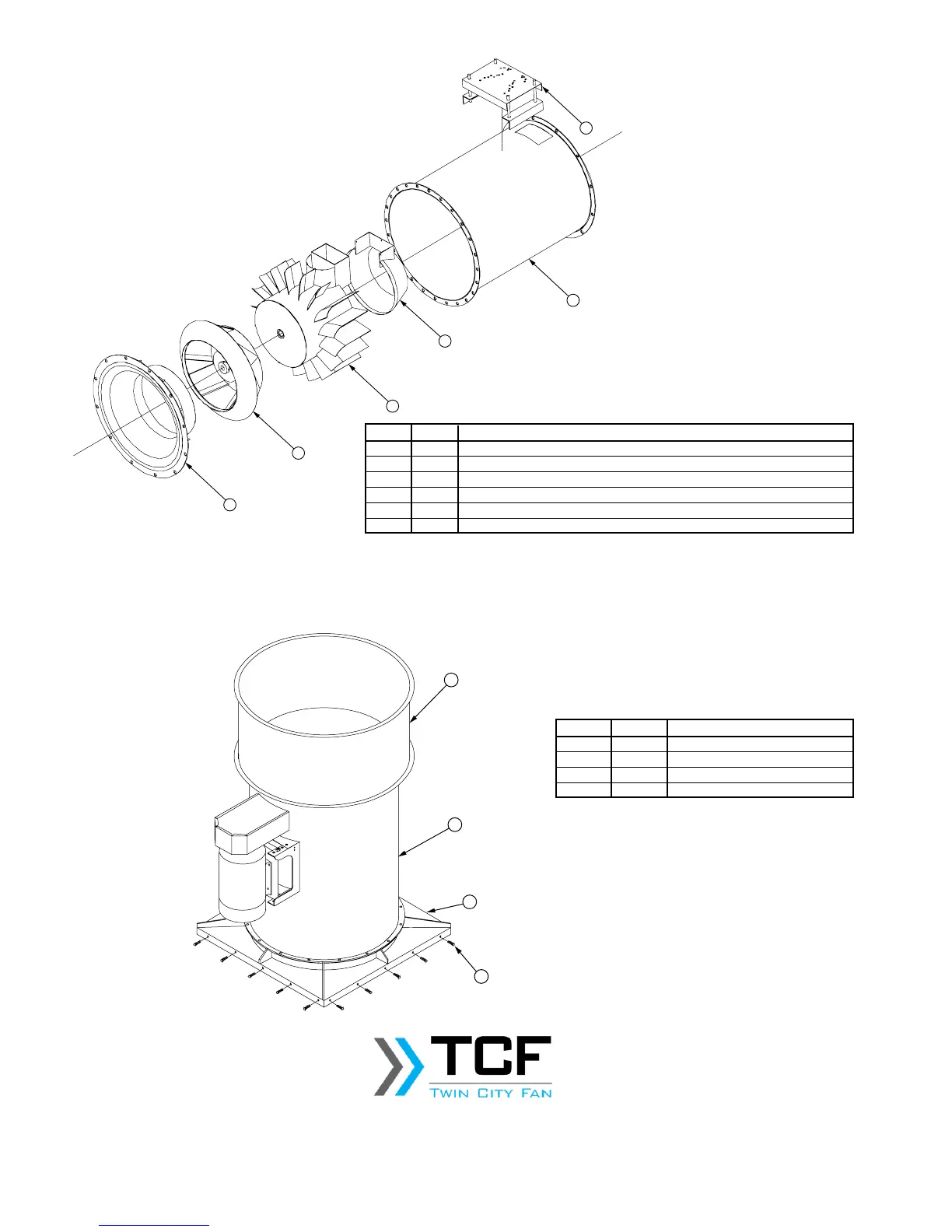

Figure 12. Exploded View of QSL Assembly
ITEM QTY. DESCRIPTION
01 1 Inlet Adaptor Plate and Inlet Funnel
02 1 Wheel
03 1 Bearing Housing With End Cover Plate Belt Tube & Straightening Vanes
04 1 Discharge Cone & Belt Tube Seal (Removable)
05 1 Housing
06 1 Motor Mount (Saddle Type)
