5
USB socket (input)
Sockets
Note: The location and names of the sockets on the TV may vary according to
TV model, and not all sockets available on all models.
USB
This socket can be used to connect an USB device.

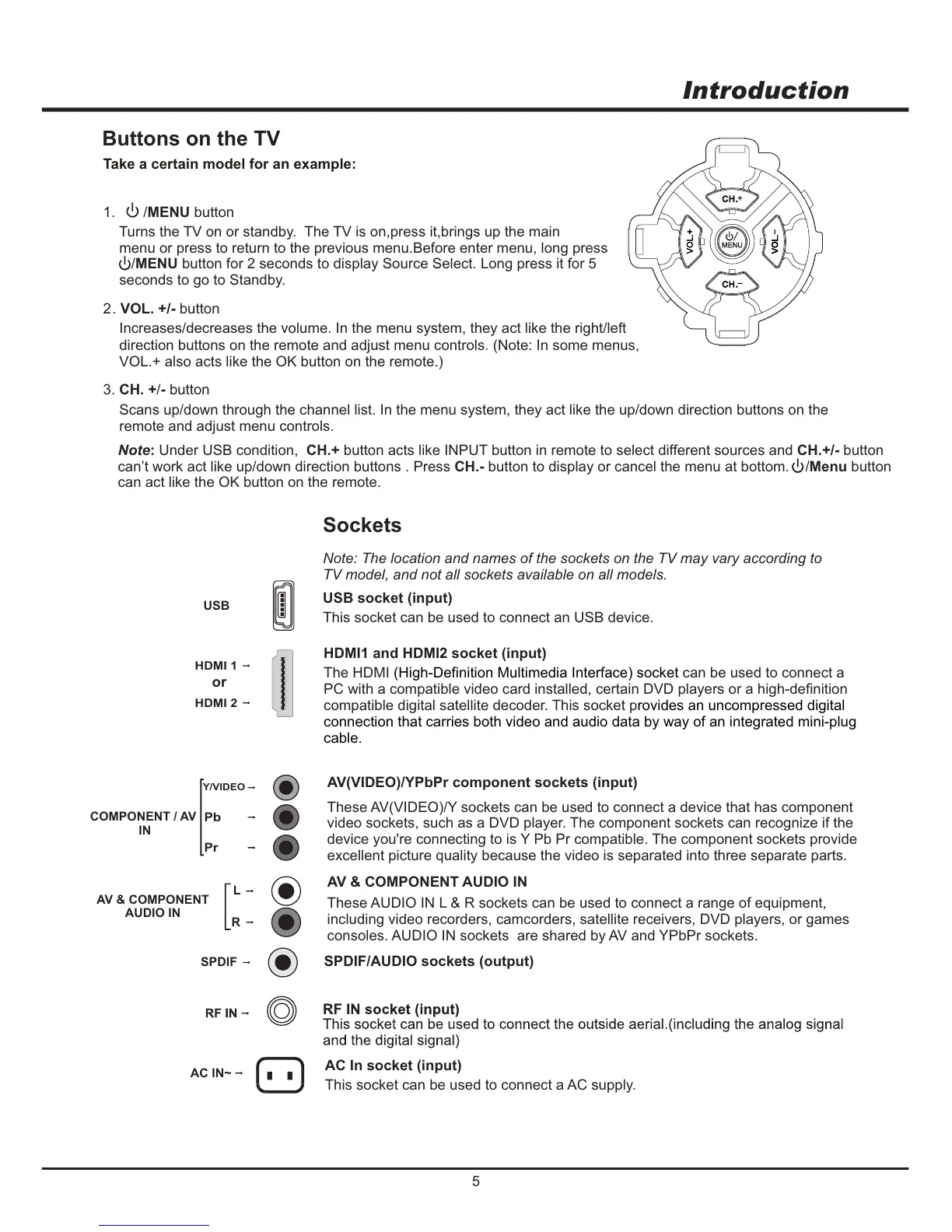

Introduction
1. / button MENU
Turns the TV on or standby.
menu or press to return to the previous menu.Before enter menu, long press
/MENU button for 2 seconds to display Source Select. Long press it for 5
seconds to go to Standby.
The TV is on,press it,brings up the main
Buttons on the TV
Take a certain model for an example:
Note: Under USB condition, CH.+ button acts like INPUT button in remote to select different sources and CH.+/- button
can’t work act like up/down direction buttons . Press CH.- button to display or cancel the menu at bottom. /Menu button
can act like the OK button on the remote.
3. CH. +/- button
Scans up/down through the channel list. In the menu system, they act like the up/down
remote and adjust menu controls.
direction buttons on the
2
. VOL. +/- button
Increases/decreases the volume. In the menu system, they act like the right/left
direction buttons on the remote and adjust menu controls. (Note: In some menus,
VOL.+ also acts like the OK button on the remote.)
HDMI 1
HDMI1 and HDMI2 socket (input)
HDMI 2
or
The HDMI can be used to connect a
PC with a compatible video card installed, certain DVD players or a high-definition
compatible digital satellite decoder. This socket p
(High-Definition Multimedia Interface) socket
rovides an uncompressed digital
connection that carries both video and audio data by way of an integrated mini-plug
cable.
AV(VIDEO)/YPbPr component sockets (input)
Y/VIDEO
Pb
Pr
COMPONENT / AV
IN
These AV(VIDEO)/Y sockets can be used to connect a device that has component
video sockets, such as a DVD player. The component sockets can recognize if the
device you're connecting to is Y Pb Pr compatible. The component sockets provide
excellent picture quality because the video is separated into three separate parts.
CH.
-
CH.
+
+
R
L
AV & COMPONENT
AUDIO IN
AV & AUDIO IN COMPONENT
These AUDIO IN L & R sockets can be used to connect a range of equipment,
including video recorders, camcorders, satellite receivers, DVD players, or games
consoles. AUDIO IN sockets are shared by AV and YPbPr sockets.
SPDIF
SPDIF/AUDIO sockets (output)
AC IN~
AC In socket (input)
This socket can be used to connect a . AC supply
To Next Page
