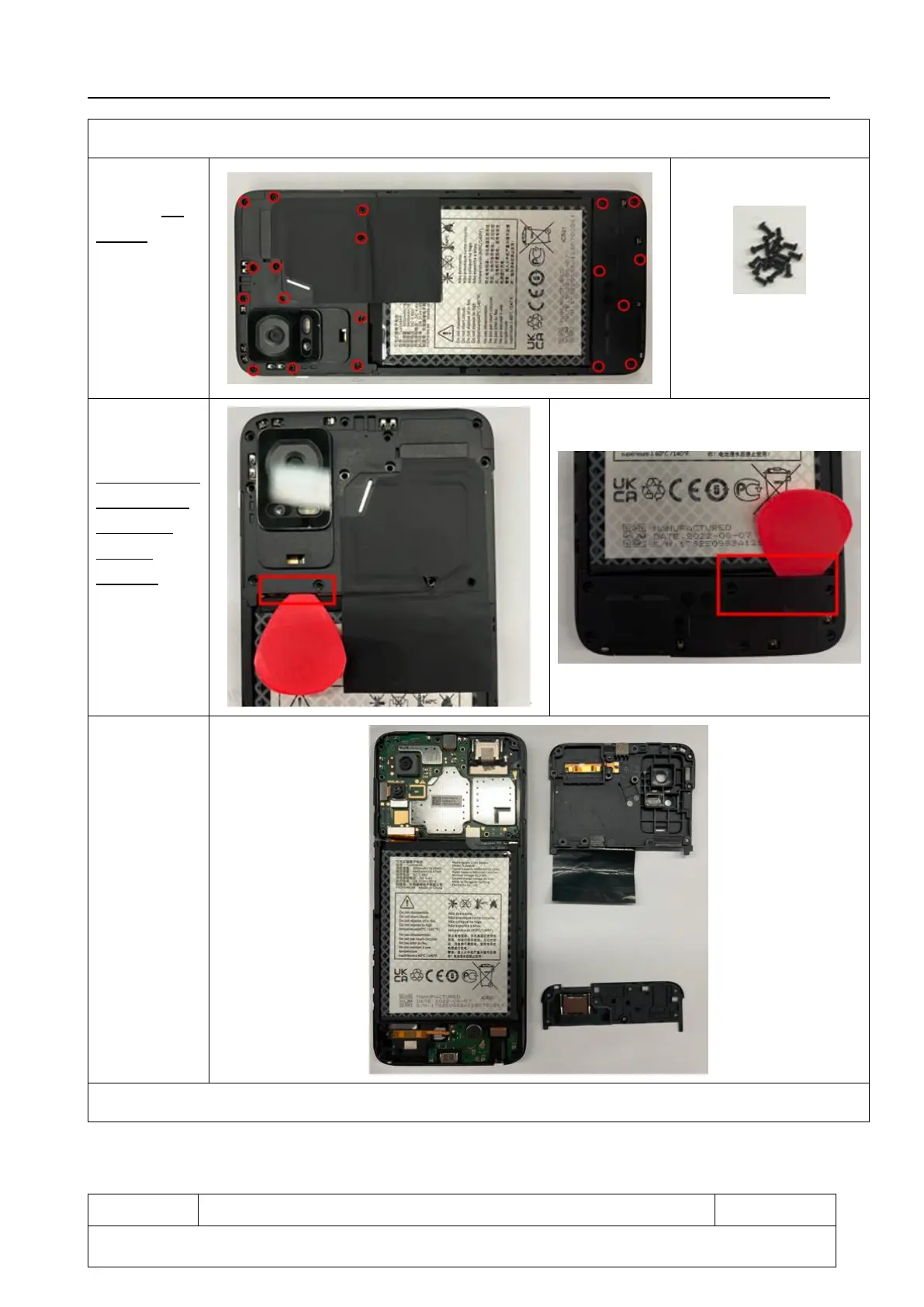

Step 2. Remove 19 Screws and Furnished Top Support, Furnished Bottom Support.
Step 2.1
Remove 19
screws by
using Screws
driver.
Screw Torque:
0.8±0.05kgf.cm
Step 2.2
Remove the
Furnished Top
Support.and
Furnished
Bottom
Support using
Plastic
Plectrum.
Step 3. Disconnect the connectors and Remove PCBA.
