3) Before assemble battery on the Furnished Underfilling, make sure the RF cable is well assembled
on the Furnished Underfilling.

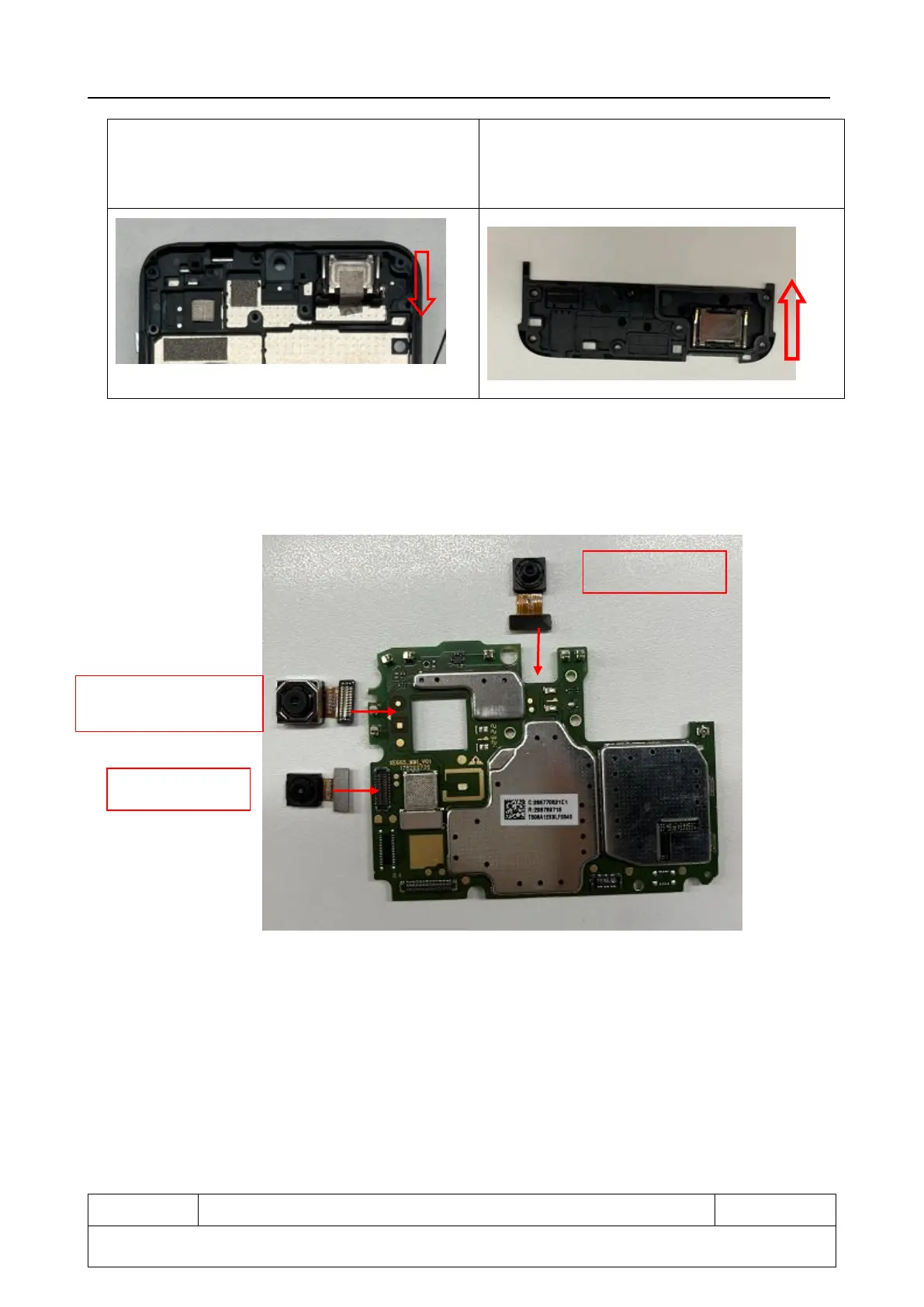

4) Assemble the cameras to the Main PCBA according to the following picture
5) Before assemble main PCBA on the Furnished Underfilling, make sure the FPC SIDEKEY, Back
camera_13M, 13M B_CAM_Rubber, Front camera_5M, 5M FNT_CAM_Rubber are well
assembled.
6) There is “thermal gel” between main PCBA and Furnished Underfilling. If a new main PCBA
or Furnished Underfilling or both of them were repalced, new thermal gel should be filled.
