Optional - To mount on a wall
(Wall mount hardware and accessories are not included)
Preparation must be done before mounting your TV on a wall.
To mount on a wall
Note: Do not place your TV in a location exposed to direct sunlight, heat, fire, or moisture.
Exposure will damage the TV.
55”/75”: Place 4 VESA spacers
(not included) into the 4 VESA
screw holes.
55”/75”
3
Screw the VESA bracket tightly onto the back cover with 4
VESA screws from the separately purchased wall mount.
The VESA number is the horizontal and vertical measurement of the mounting holes. For
example, 200X200 refers to the fact that the mounting measurements are 200mm horizontally
and 200mm vertically.
Follow the instructions that come with the wall mount.
Your wall mount must be able to bear a minimum of five times the TV’s net weight to avoid
causing damage.
55” Models Purchase a VESA 400x300
(2 M6x30mm screws - top row)
(2 M6x25mm screws - bottom row)
To mount your TV to the wall, purchase a VESA wall mount
If you are mounting your TV to the wall, don’t attach the stands.
65” Models Purchase a VESA 300x300 (4 M6x16mm screws)
75” Models Purchase a VESA 400x400 (4 M6x40mm screws)

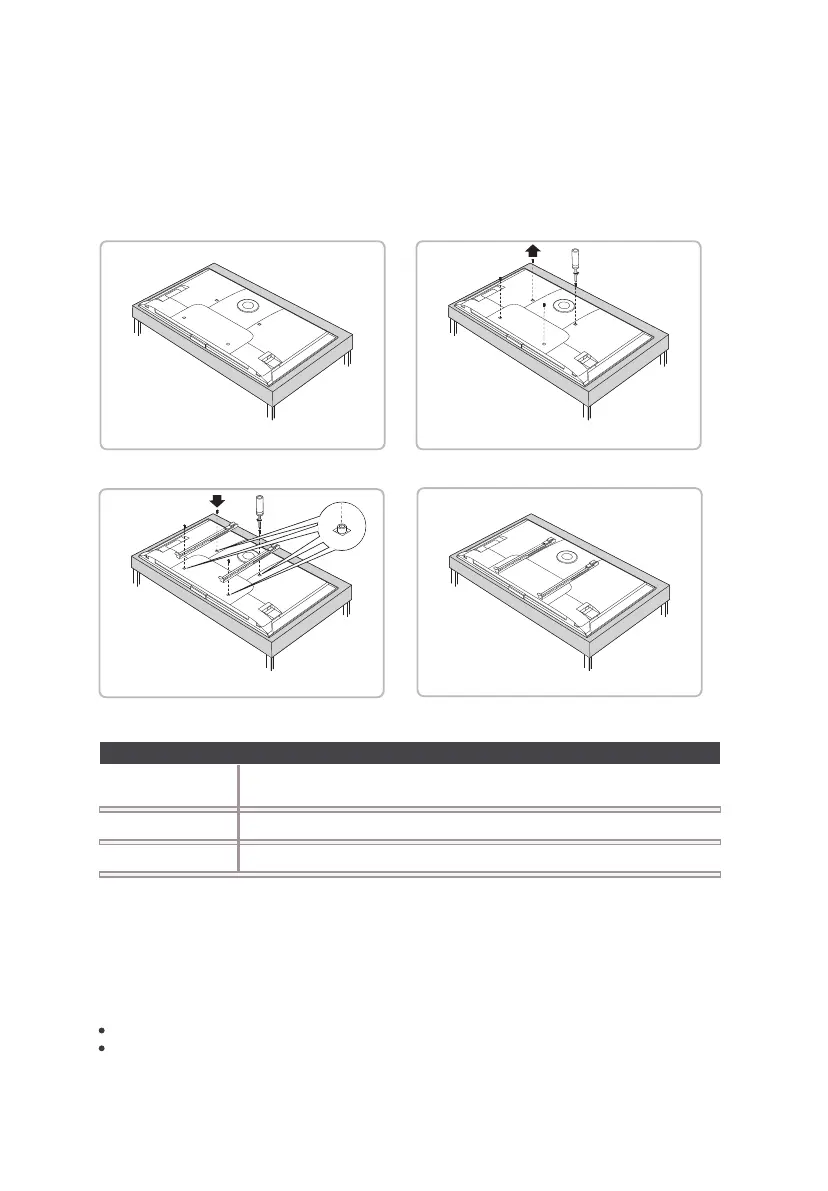

Place your TV on a soft, cushioned surface.
1
4
2
55”/65”: Remove the 2 screws on the top back of the TV.
75”: Remove the 4 screws on the back of the TV.
Follow the instructions that come with the wall mount to hang
the TV on the wall.
Warnings:
This product should only be mounted by a professional installer.
Never install or mount this product to the ceiling with the screen side facing down. Installing
or mounting this product to the ceiling or the underside of a structure or surface is hazardous
and may result in personal injury and/or property damage.
