TCL S522W User Manual

19

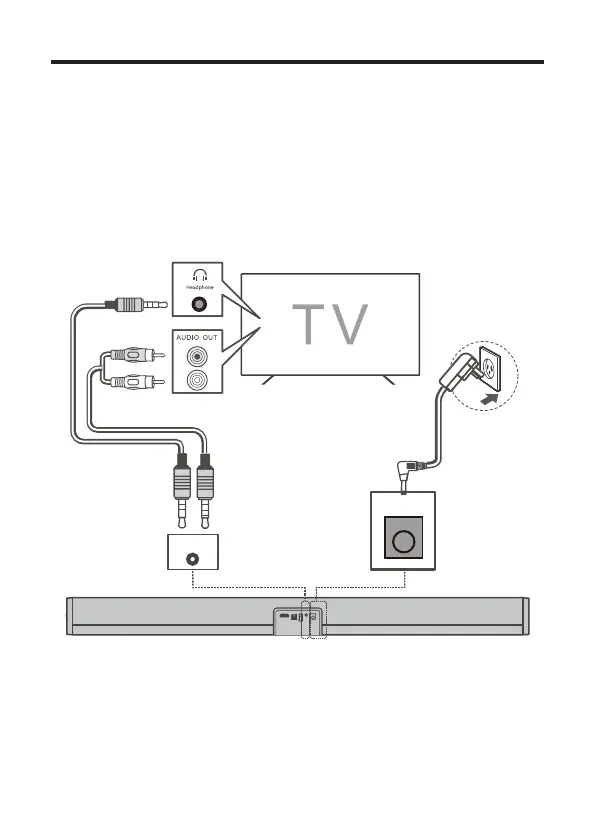

Connect with the optical cable
1. Remove the protective caps from the optical cable when
necessary.
2. Connect one end of the optical cable to the optical input
connector on your Sound Bar and another end to the optical
output connector of your TV or device.
ARCO PT USBA UX DC IN
DC IN
OPT
Note
• If there is no sound output from the Sound Bar, try to
activate the PCM signal output on your TV or device. PCM
is used to convert analog audio signals into digital audio

TCL S522W Specifications

General

Equalizer	Yes
RMS rated power	200 W
Audio output channels	2.1 channels
Soundbar speaker RMS power	40 W
Tweeter diameter (imperial)	2.25 \
Subwoofer location	Separate
Subwoofer connectivity	Wireless
Woofer diameter (subwoofer)	5.25 \
Display type	LED
Product color	Black
Volume control	Buttons
Audio formats supported	MP3, WAV, WMA
Cables included	AC, RCA
Number of products included	1 pc(s)
Wi-Fi	No
Bluetooth version	5.1
Digital audio coaxial in	0
Package type	Box
Package depth	207 mm
Package width	842 mm
Package height	380 mm
Package weight	4960 g
Warranty period	2 year(s)
Pallet net width	1200 mm
Pallet net height	2000 mm
Pallet net length	1000 mm
AC input voltage	100 - 240 V
AC input frequency	50 / 60 Hz
Soundbar power consumption	9 W
Power consumption (standby)	1 W
Power consumption (typical)	19 W
Subwoofer power consumption	10 W
Remote control battery type	CR2025
Truck type	87cbm
Pallet net weight	221000 g
Quantity per truck	728 pc(s)
Quantity per pallet	28 pc(s)
Number of pallets per truck	26 pc(s)
Number of cartons per pallet	50 pc(s)
Battery weight	15 g

Weight and Dimensions

Depth	99 mm
Width	800 mm
Height	70 mm
Soundbar weight	1100 g
Subwoofer depth	298 mm
Subwoofer width	165 mm
Subwoofer height	240 mm
Subwoofer weight	2260 g
