TCL TRF-315WEA+ - Page 10

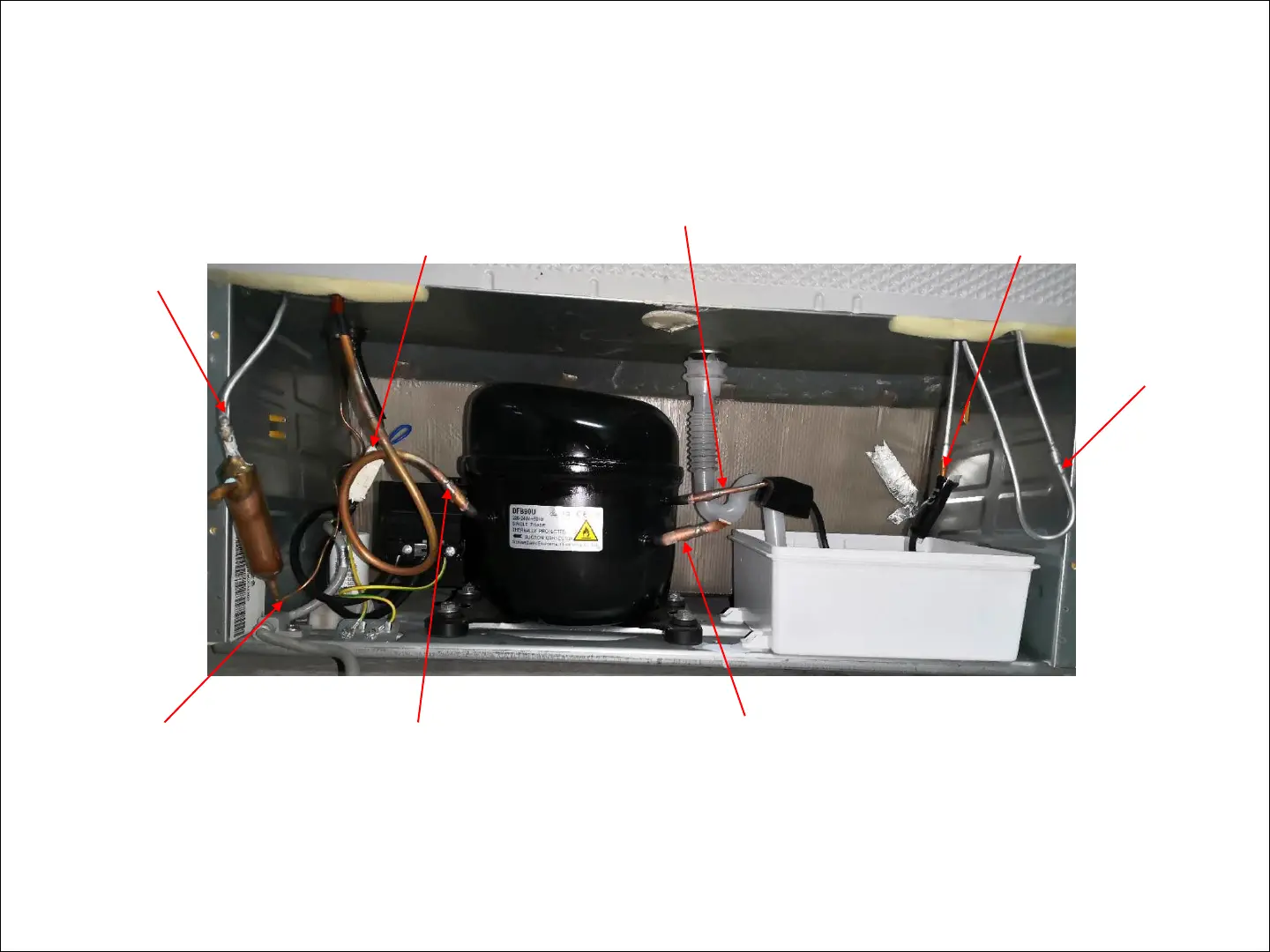

Schematic diagram for welding of pipelines in compressor compartment
Welding position
of process tube
Solder joints for compressor
and evaporation coil
Solder joints for
evaporation coil and dew-
proof tube
Solder joints for
dew-proof tube
and condenser
Solder joints for
condenser and dry
filter
Solder joints for
dry filter and
capillary tube
Solder joints for return-air
duct and return-air
transition duct
Solder joints for
return-air transition
duct and condenser
